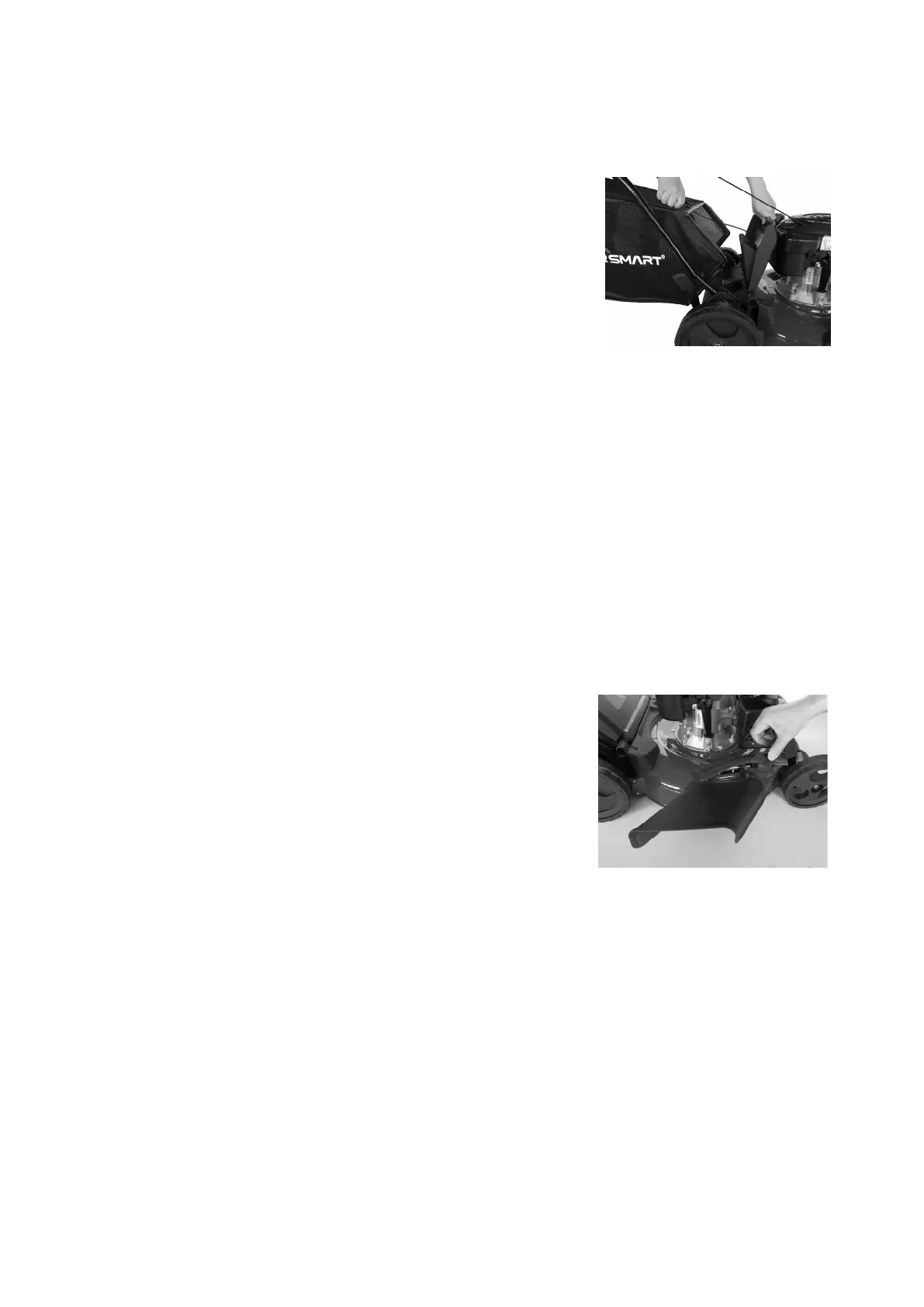

GRASS CATCHER
Attach grass catcher
1. Lift mower rear discharge door.
2. Place grass catcher into the slots in the handle brackets.
3. Release the rear discharge door so that it rests on the grass catcher.
Remove grass catcher
1. Lift mower rear discharge door.
2. Lift grass catcher up and off the slots in the handle bracket.
3. Release mower rear discharge door to allow it to close rear opening of mower.
SIDE DISCHARGE CHUTE
To convert mower for side discharge, the grass catcher has been
removed and that the rear discharge door is closed.
1. Lift the spring-loaded discharge cover located on the side of the
mower.
2. Slide two hooks of the side discharge chute under the hinge pin
and lower the spring on the side discharge cover.
Caution: Do not attempt to remove the permanently mounted spring
loaded side discharge cover at any time.
