15

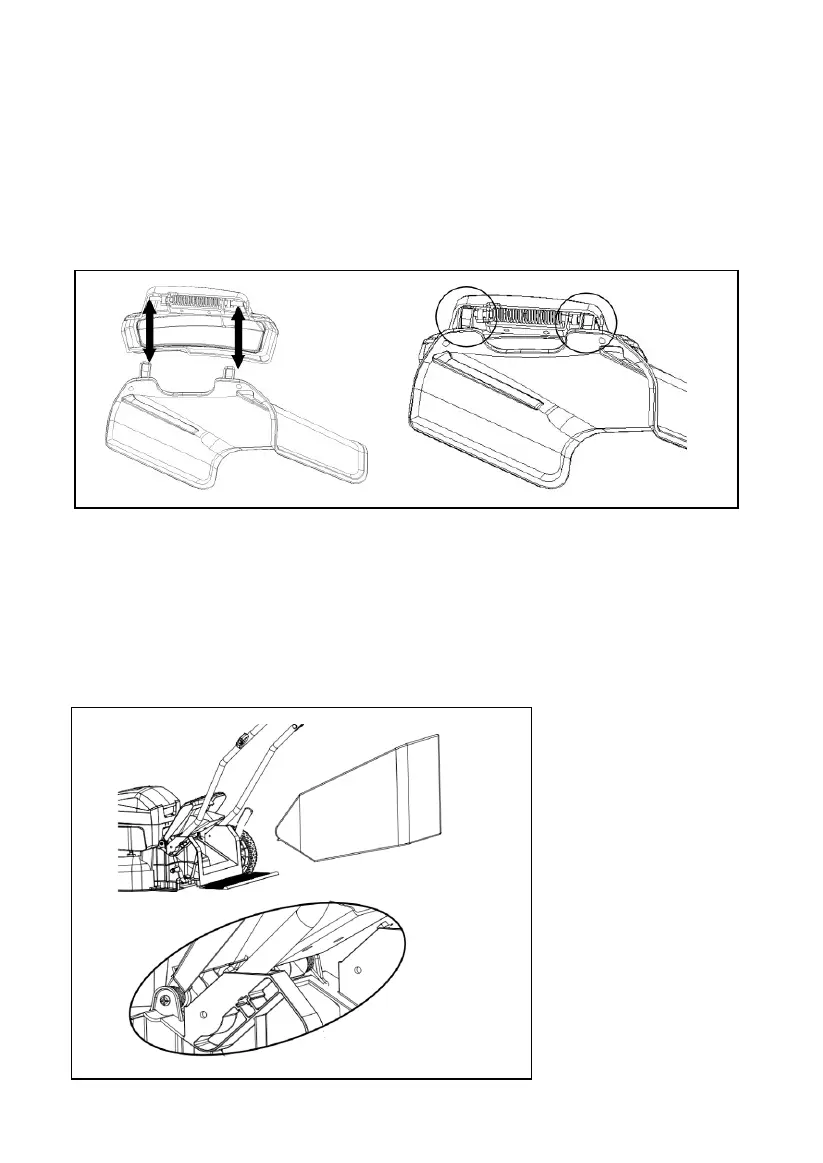

SIDE DISCHARGE CHUTE
To convert mower for side discharge, the grass catcher has been removed and that the
rear discharge door is closed.
1.Lift the spring-loaded discharge cover located on the side of the mower.
2.Slide two hooks of the side discharge chute under the hinge pin and lower the spring on
the side discharge cover.
Caution: Do not attempt to remove the permanently mounted spring loaded side
discharge cover at any time.
GRASS CATCHER
Attach grass catcher
1. Lift mower rear discharge door.
2. Place grass catcher into the slots in the handle brackets.
3. Release the rear discharge door so that it rests on the grass catcher.
Figure 4
Figure 5
