DigiMod 500 1000 1500 2000HV 1000NPS | SERVICE MANUAL
INDEX
DigiMod 1000NPS
Using a M5 Socketed Wrench, and a regular M5 Wrench, remove all 4 screws and nuts highlighted in the pictures below.
Proceed by removing the retainer spring holding the Zobel resistor in place.

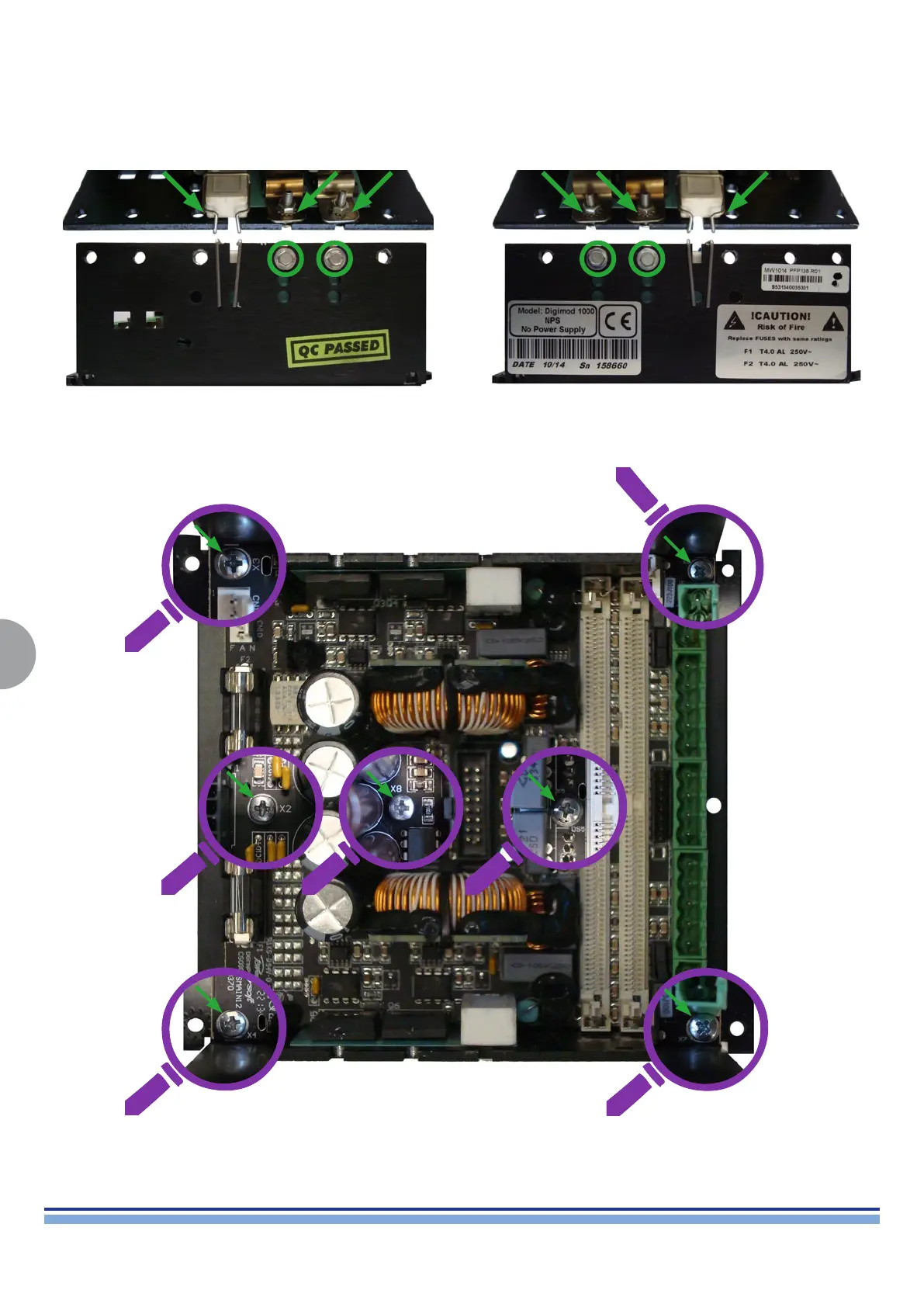

The image below portrays all 7 screws needed to be removed in order to separate the PCB from its casing.
It is now possible to carefully lift the main PCB out of its casing.
