5. Troubleshooting:
Checking the Output Mosfets:

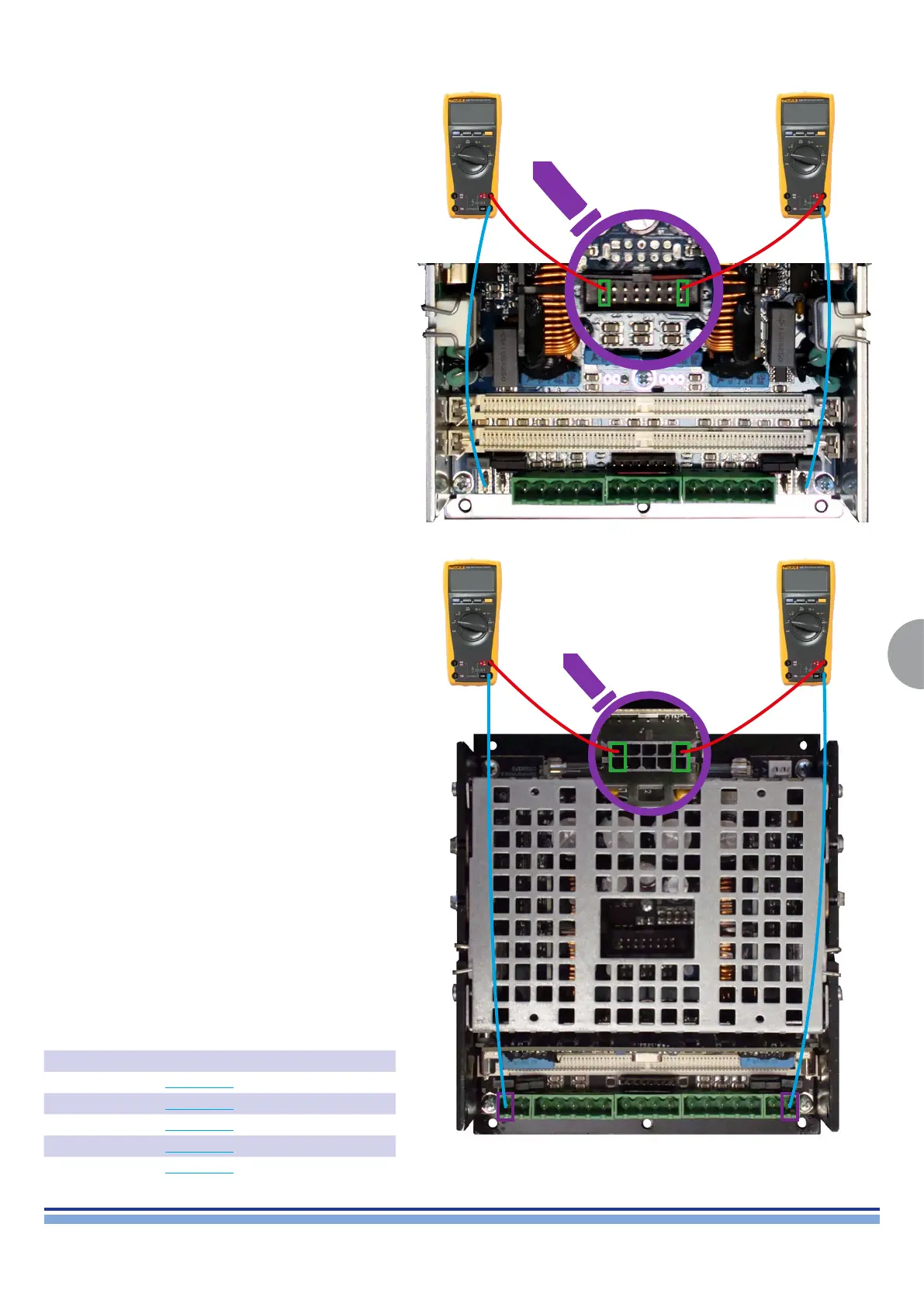

Check for any short in the Output Mosfets by probing with
a multimeter set to Ohm between the points highlighted
in (Fig. 6).
(Fig. 6)
DigiMod 500 | 1000 | 1500 | 2000HV
DigiMod 1000NPS
Ω Ω
Check for any short in the Output Mosfets by probing with
a multimeter set to Ohm between the points highlighted
in (Fig. 7).
Ω Ω
(Fig. 7)
Model Kit Number Description
DigiMod 500
KT000819.R KIT DM500 AMP 1CH
DigiMod 1000
KT000821.R KIT DM1000 AMP 1CH
DigiMod 1000NPS
KT000822.R KIT DM1000NPS AMP 1CH
DigiMod 1500 KT000824.R KIT DM1500 AMP 1CH
DigiMod 2000
KT000827.R KIT DM2000 AMP 1CH
In case of any faults in the aforementioned components,
please refer to the table below when ordering the Repair Kit.
