DigiMod 500 1000 1500 2000HV 1000NPS | SERVICE MANUAL
INDEX

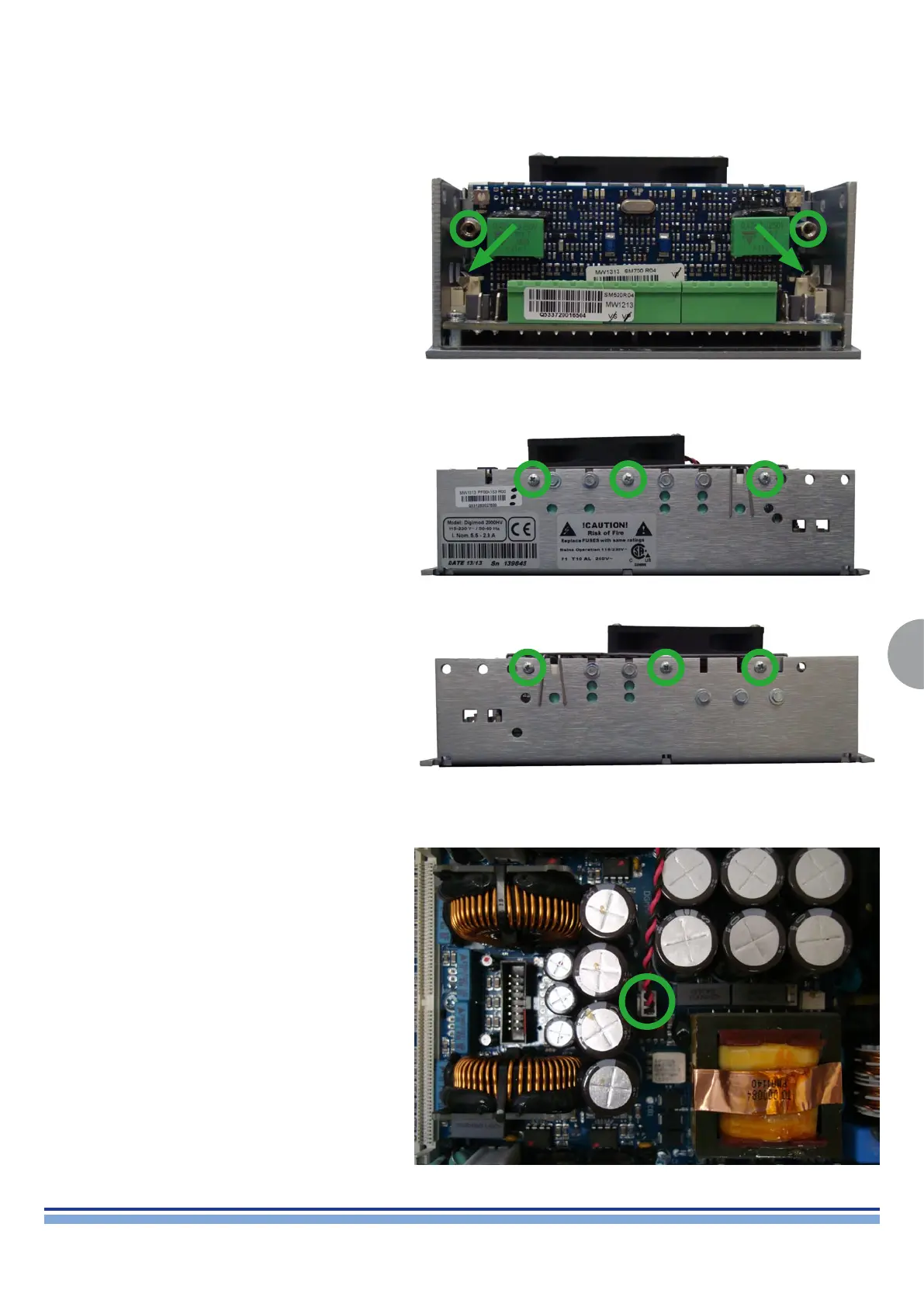

2. Opening the Module’s cover:
Remove the Control Board by unscrewing the two steel
spacers with a M5 socketed wrench and un-clipping the
retainers highlighted in (Fig. 1)
(Fig. 1)
Locate and unscrew all 6 Phillips Head Screws holding
the module’s cover, 3 per side. (Fig. 2,3)
(Fig. 2)
(Fig. 3)
Carefully lift the cover, locate and unplug the fan’s power
cable. (Fig. 4)
(Fig. 4)
