15
DigiMod 500 1000 1500 2000HV 1000NPS | SERVICE MANUAL
INDEX
+15Vdc -15Vdc

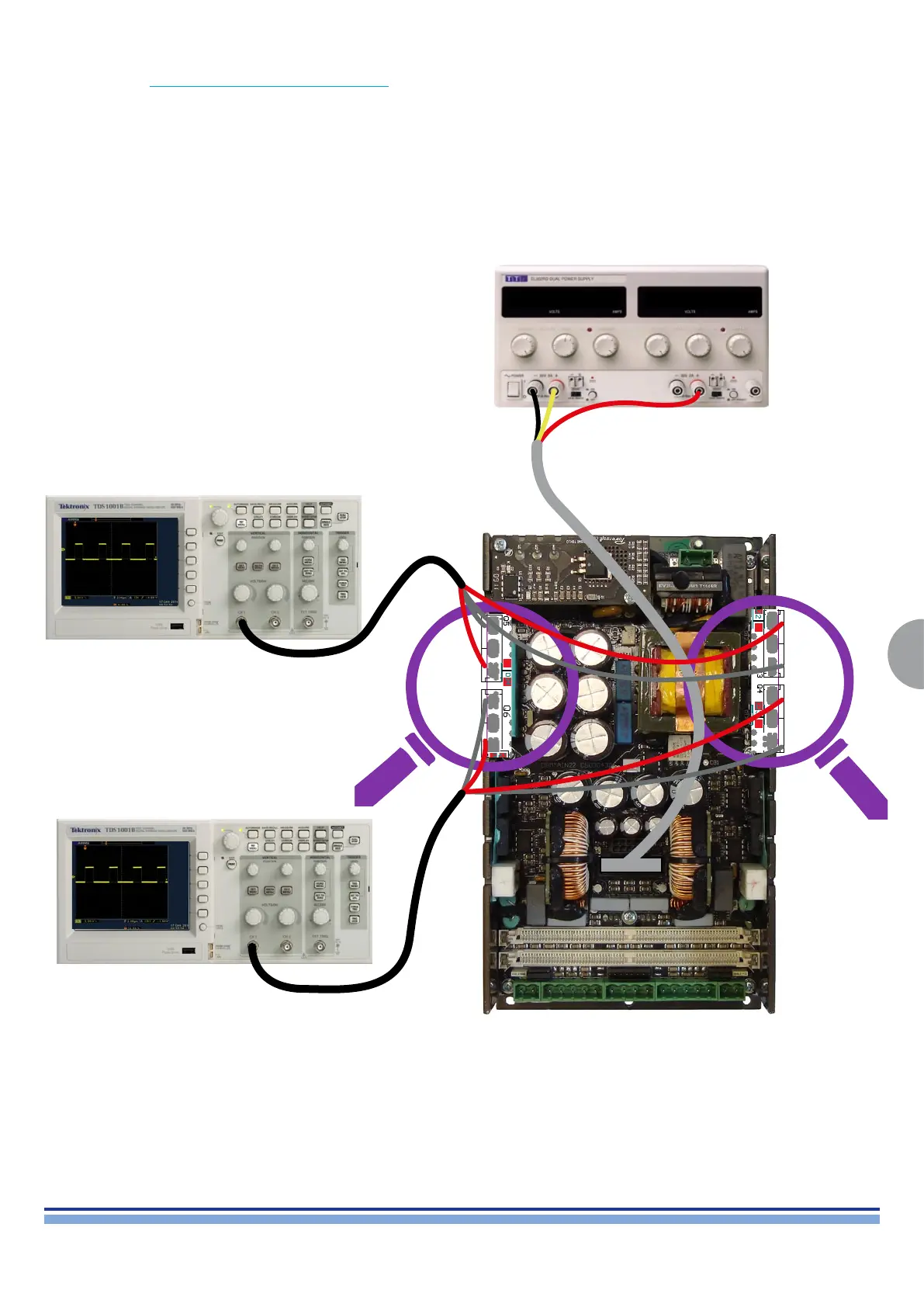

By means of the DIGIMOD AMP AUX VOLTAGE CABLE, connect a DC power supply and set the output voltage to ± 15Vdc.
Check the shape of the waveforms by probing the highlighted pins on the Q3, Q4, Q5, Q6 Mosfets.
The waveforms should be shaped as portrayed in the figure below.
