6
DigiMod 500 1000 1500 2000HV 1000NPS | SERVICE MANUAL
INDEX

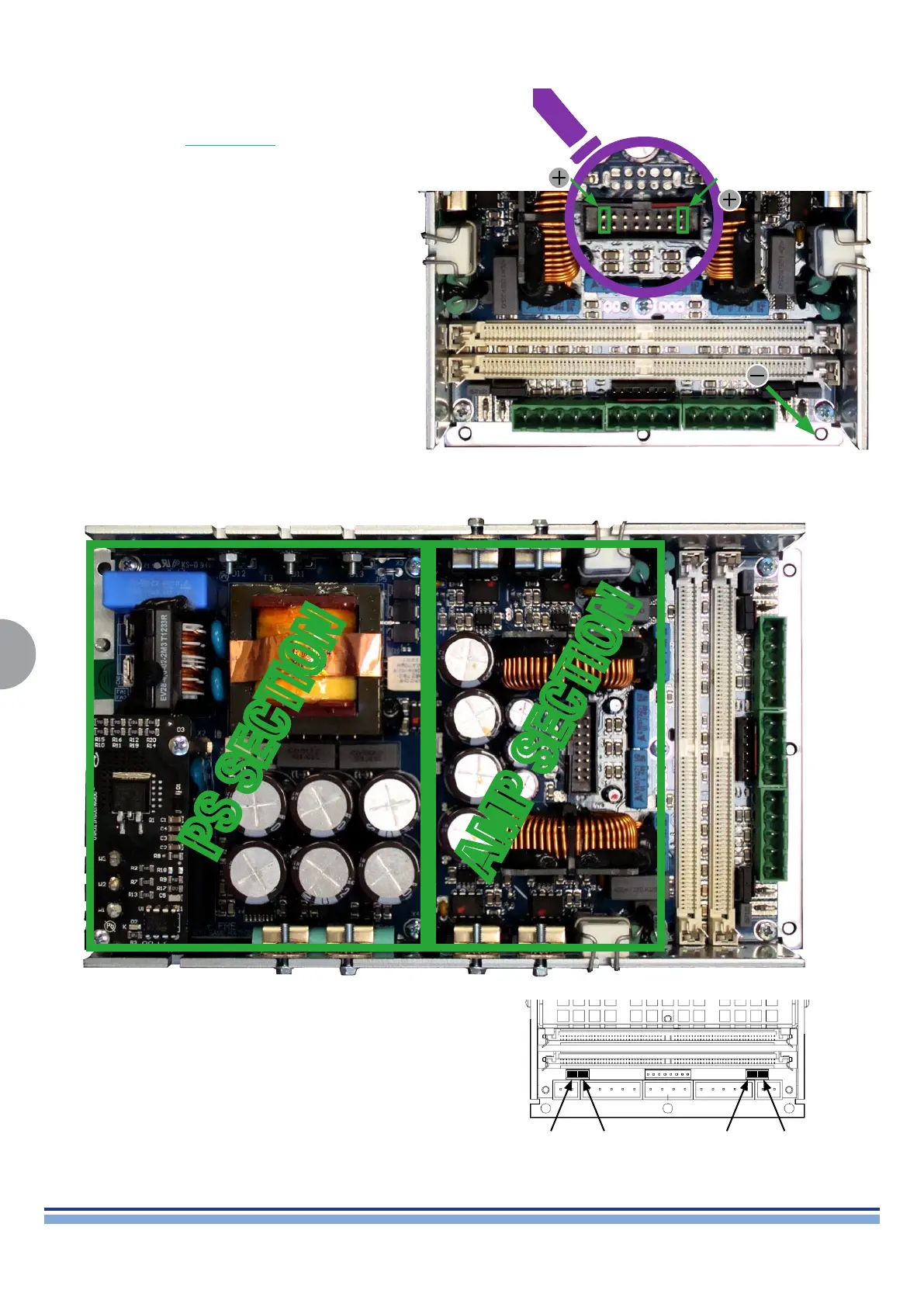

4. Assembly Outline:
3. Discharging the Capacitor’s Bank:
Connect one side of a 60W light bulb to the pins marked
(+) and the other side to a ground point, repeat on the
other side of the CN13 connector.
AMP SECTION
PS SECTION
(Fig. 5)
Remove Jumper to
insert external circuit
Remove Jumper to
insert external circuit
Remove Jumper to
enable DSP
Remove Jumper to
enable DSP
