C
D

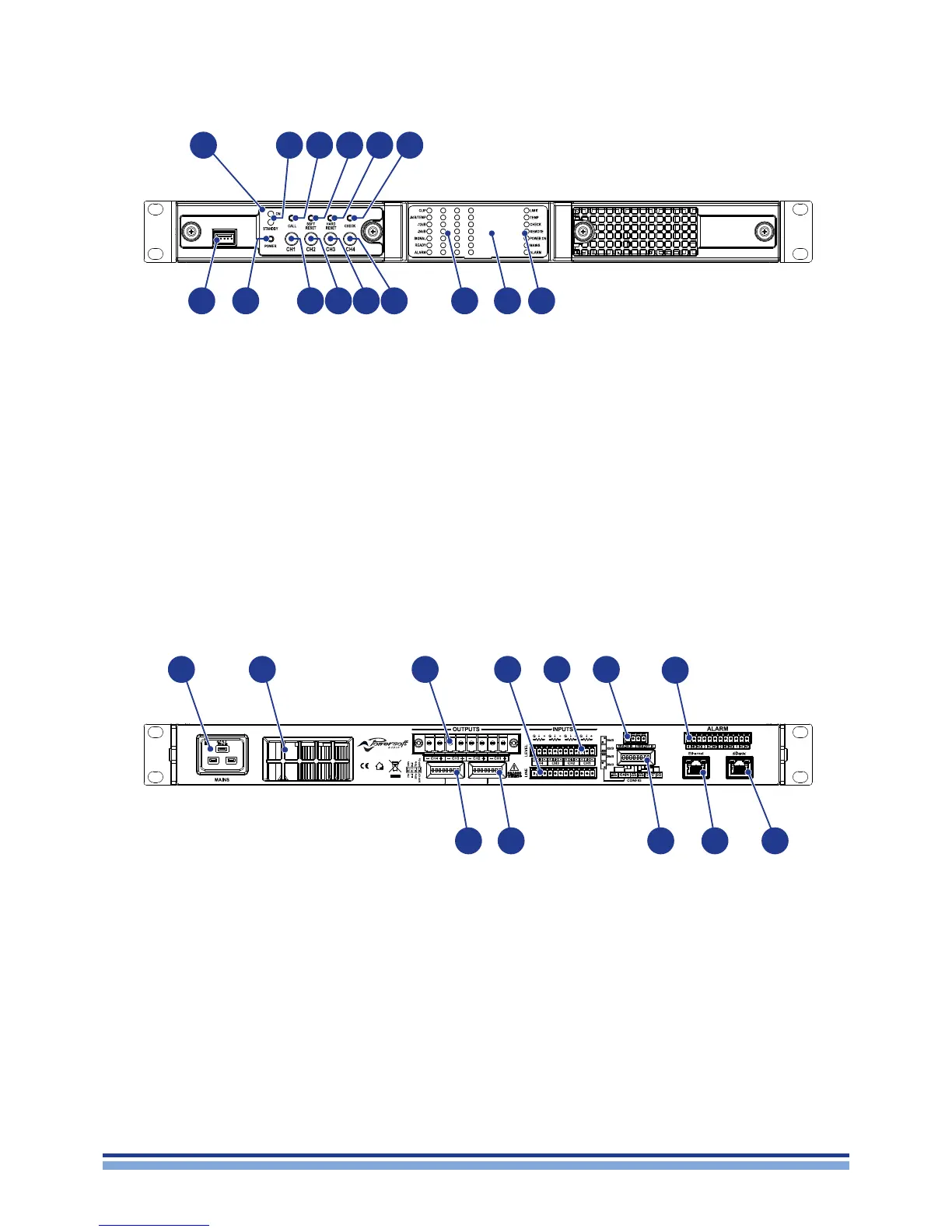

1. Control panel
2. ON LED and STANDBY LED
3. Armonía callback push button
4. Soft Reset push button
5. Hard Reset push button
6. Self Check
7. Global status LED strip
8. LED panel
9. Channel status LED bars
10. Channel 4 level potentiometer
11. Channel 3 level potentiometer
12. Channel 2 level potentiometer
13. Channel 1 level potentiometer
14. Power push button
15. Port reserved for servicing
A. AC mains connector
B. Air vent
C. Output connector
D. Line input connector
E. Remote levels connector
F. Remote on/off
G. Alarm connector
H. Dante™ port (DSP+D version only)
I. Ethernet port
J. System configuration dip switches
K. CH1, CH2 output configuration dip
switches
L. CH3, CH4 output configuration dip
switches
Panels | 5
1 2 3 4 5 6
789101112131415
A B C D E F
H
G
IKL J
