PowerTech KIT PL1000 User Manual

8
INSTRUCTIONS PL600/PL1000
10mm
86-88mm
10mm

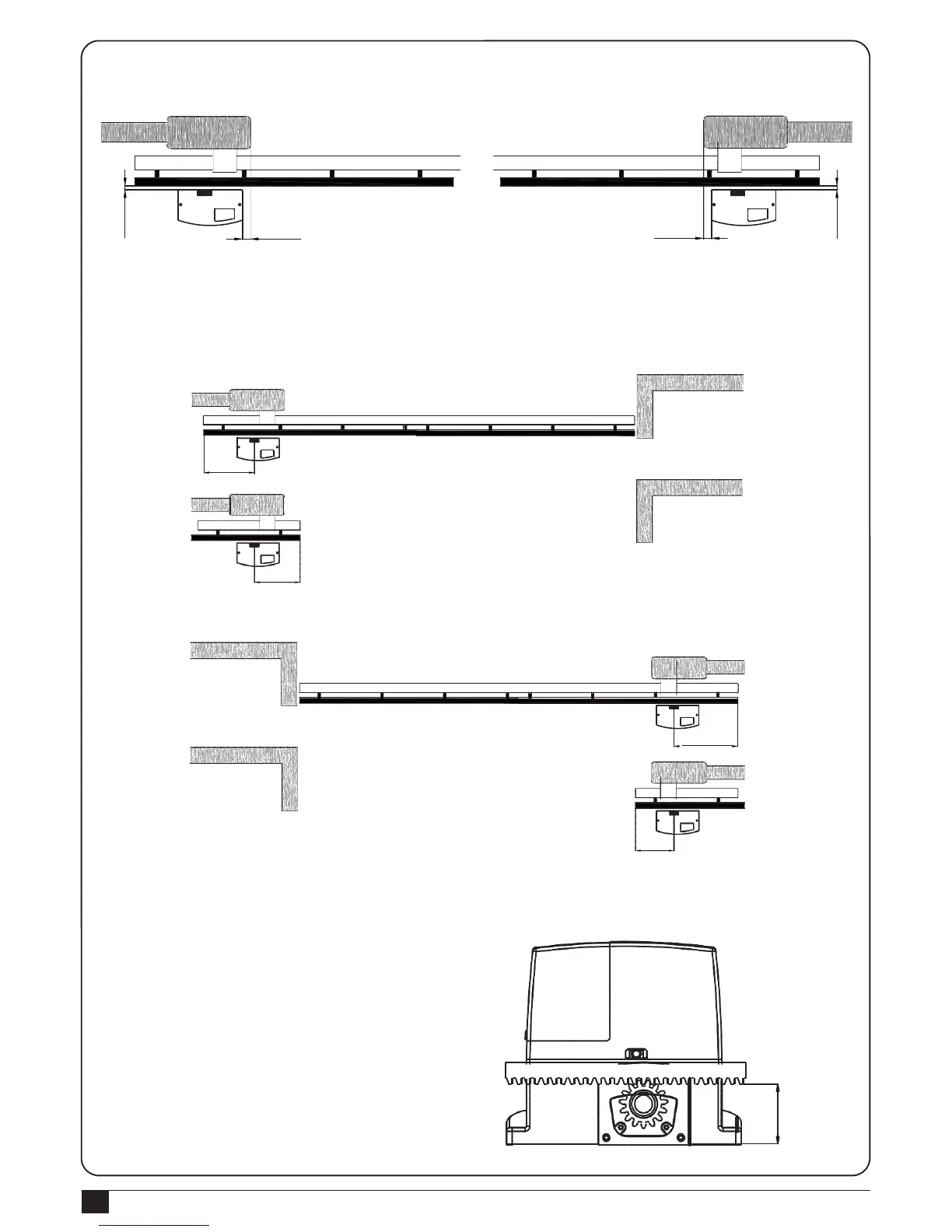

Gate with rack: the distances indicated in Figure 13 .
Figure 13
SX
50mm
DX
50mm
10) To install the limit switch brackets, the rack must project from the axis of the pinion by distances indicated in
Figure 14 (Left opening) and Figure 15 (Right opening).
Figure 14 (Left opening)
170mm
200mm
Figure 15 (Right opening).
170mm
200mm
11) If the rack is already installed on the gate, make sure the position of the rack is fitted for the size limits indicated in
Figure16 .
Figure 16
