INSTRUCTIONS PL600/PL1000

Table 1: List of small parts for PL600 & PL1000

Bent bins / Washers / Nut

2 pcs / 6 pcs / 4 pcs

Foundation Plate

1 pce

Screws with no head

4 pcs

Limit Switch

2 sets

2) Product Description and Applications

2.1 Applications

PL600/PL1000 is applied for residential automation of sliding gates. PL600/PL1000 has to be operated with electricity

and it’s forbidden to be operated by back-up batteries for normal use. Back-up batteries (optional) are only allowed

for emergent operation when there is a power failure, and the gearmotor can be released by the key to move the gate

manually.

2.2 Description of the Automation

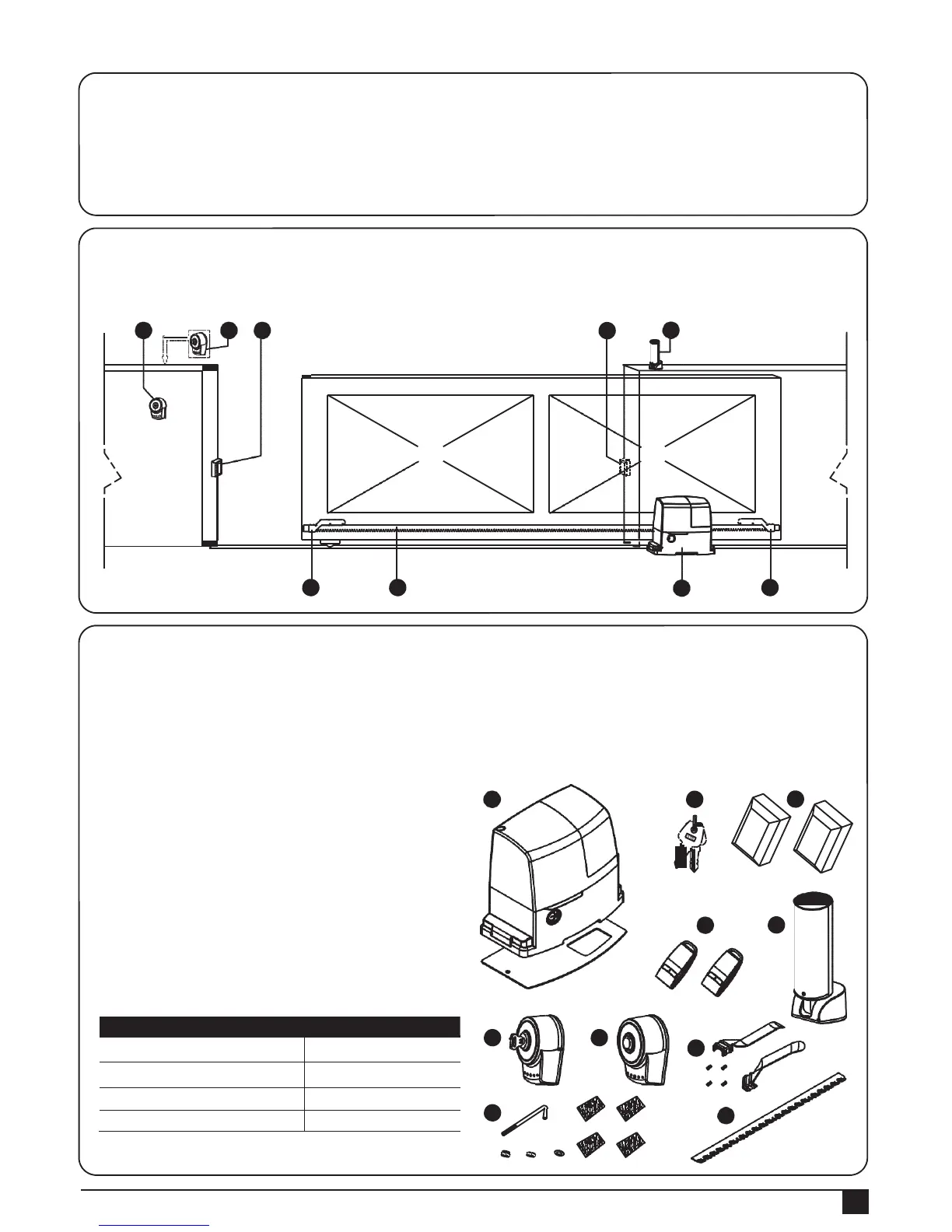

The following diagram of PL600/PL1000 typical installation describes some terms live in whereever you are and

whenever you are and accessories of a gate automation system:

G F C C E

Figure 1

H I

2.3 Description of Devices

PL600/PL1000 may include the accessories shown in Figure 2.

Please check the accessories the same as the package provided.

Attention: Some accessories of PL600/PL1000 are not included due to local regulations or customized order.

A) 1 PL600/PL1000 electromechanically gearmotor

including control unit

B) 2 release keys

C) 1 pair of PH-1 photocells

D) 2 PR-1 radio transmitters

E) 1 PF- flashing light

F) 1 PKS-1 key selector with two keys

G) 1 PPB-1 push button

H) 2 limit switch brackets

I) Various small parts: screws, nuts, etc. (see table1)

J) 4 PRK-1 Rack

Figure 2
