INSTRUCTIONS PL600H/PL1000H
14
3.3.3 PF-1 Flashing Light
1). Decide the installation position of the flashing light. The flashing light has to be installed near the gate and easy
to be seen by users and passersby. The flashing light can be installed horizontally or vertically. See Figure 3.3.3 (1).
2). Unscrew the four screws on the light base and separate the base with the bottom as shown in Figure 3.3.3 (2).
3.) Connect the wires and penetrate the wires into the hole of the base. See Figure 3.3.3 (3).
4.) Drill the holes in the wall and fix the bottom to the wall by three screws. See Figure 3.3.3 (4).
3.3.4 PKS-1 Key Selector
1). PKS-1 key selector is installed outside and close to the gate at the height of about 100cm, so that it could be used
by most people. Decide the installation position of PKS-1 first. See Figure 3.3.4 (1).
2). Remove the round cover (A) by prizing it out with a screwdriver. See Figure 3.3.4 (2).
3). Unscrew the two screws beside the lock body. See Figure 3.3.4 (3).
4). Turn the key and separate the bottom of the shell with the lock body. See Figure 3.3.4 (4).
5). Connect the four wires of the light and the antenna to the PCB terminals and place the wires into the conduit if
necessary. See Figure 3.3.3 (5).
6). Tighten the four screws back on the light base. Figure 3.3.3 (6)
7). Replacing the bulb set. See Figure 3.3.3 (7)
7.1) Unscrew the flashing light wires from the PCB terminals and make sure the power of the light is off.
7.2) Release the three screws (A)、(B)、(C) of the flashing light cover.
7.3) Separate the flashing light cover and replace the bulb set with a new one.
7.4) Tighten the three screws (A)、(B)、(C) of the flashing light cover.

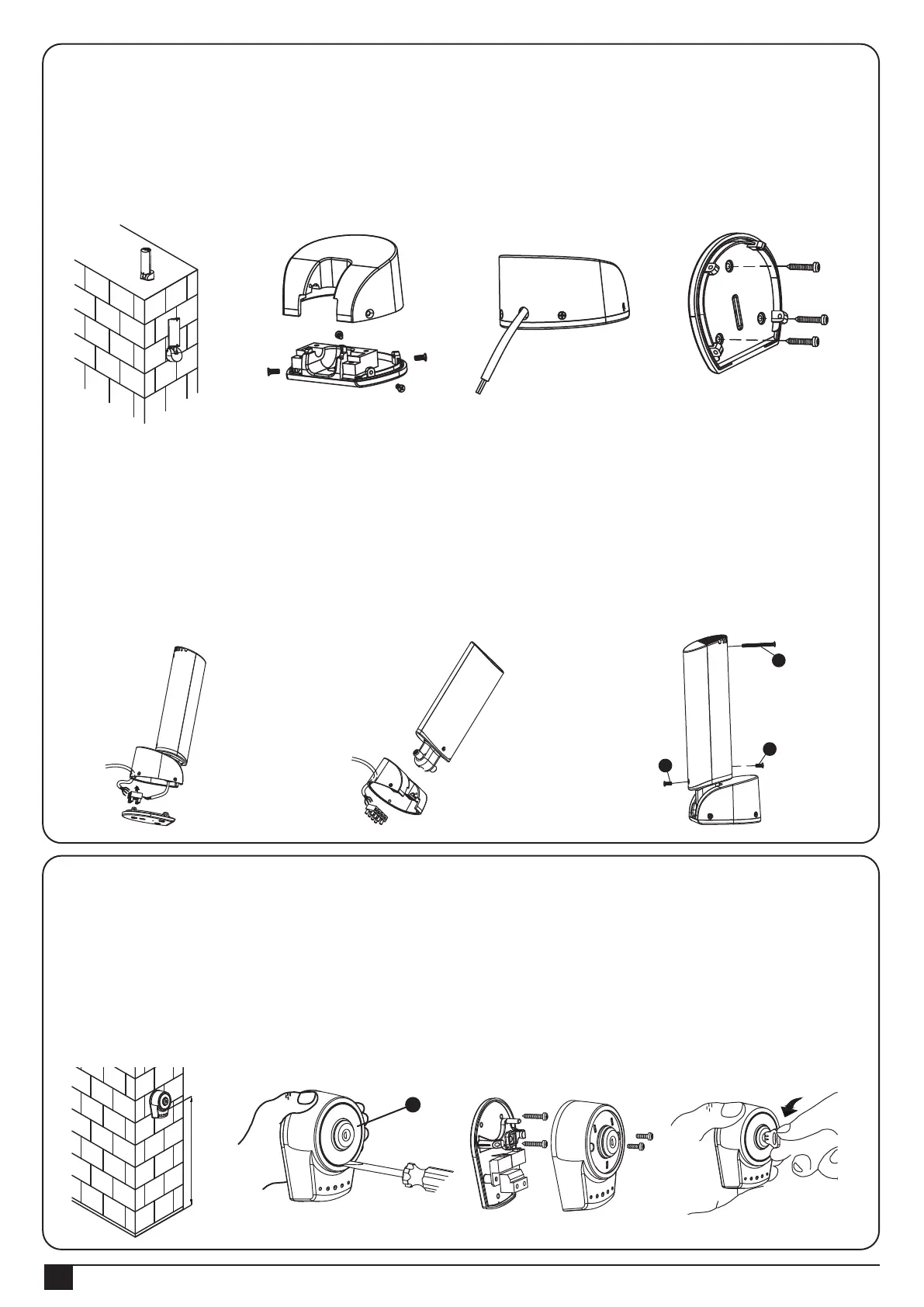

Figure 3.3.3 (1) Figure 3.3.3 (2) Figure 3.3.3 (3)
Figure 3.3.3 (5) Figure 3.3.3 (6) Figure 3.3.3 (7)
Figure 3.3.3 (4)
Figure 3.3.4 (1) Figure 3.3.4 (2) Figure 3.3.4 (3) Figure 3.3.4 (4)
1000mm
A
A
B
C
