HEMNVx & HEMSL Range Users, Installation & Servicing Instructions Doc Ref M103 issue 3.1 Feb 2018.
C
B
A D

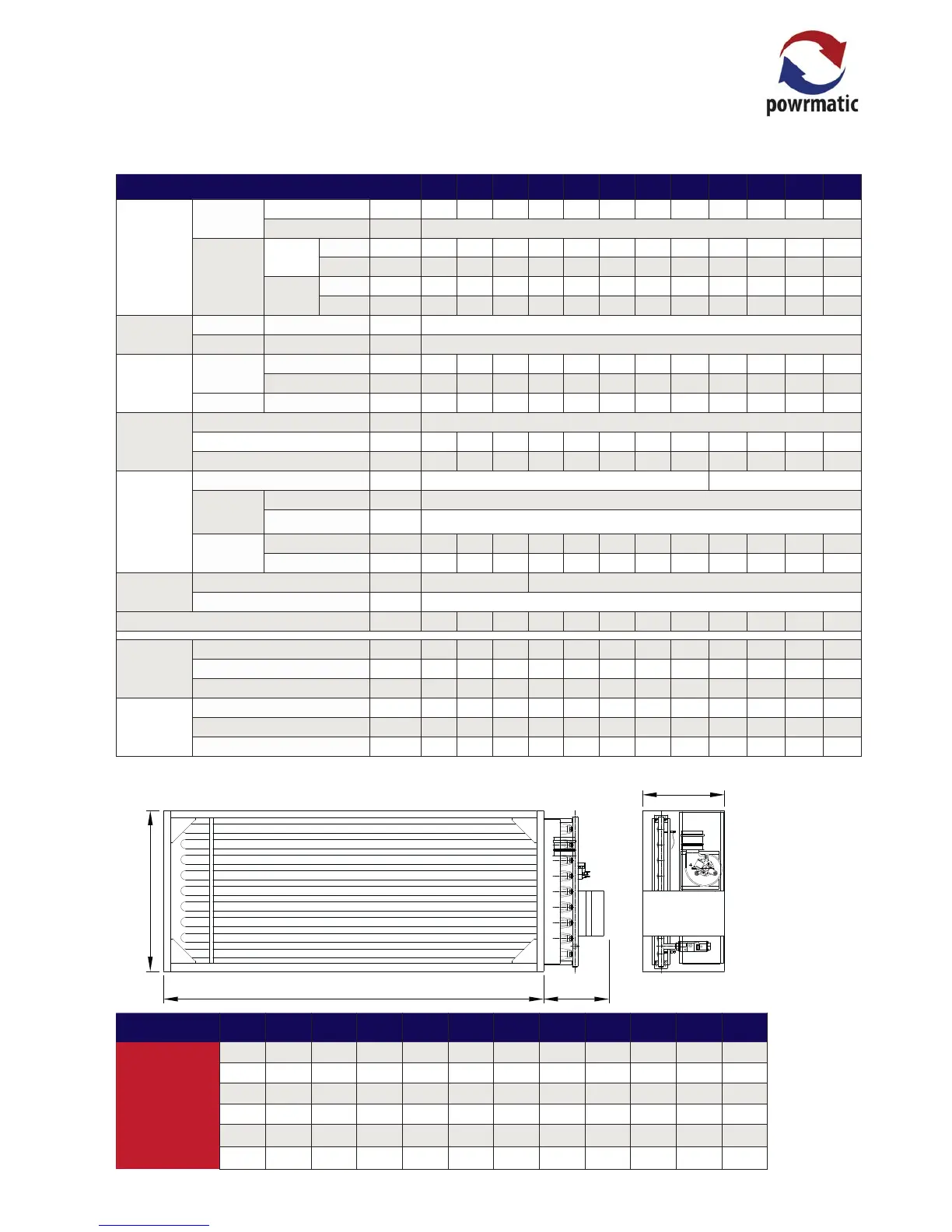

HEM-SL Unit Dimensions
Model 30-6 45-9 50-6 60-12 75-9 75-15 90-18 100-12 125-15 150-18 175-21 200-24
Dimension
A
1250
1250 1850 1250 1850 1250 1250 1850 1850 1850 1850 1850
B
531
741 531 950 741 1272 1482 950 1272 1482 1690 1900
C
400
400 400 400 400 400 400 400 400 400 400 530
D
450 450 450 450 450 450 450 450
500 500 500 550
Flue Diameter
100
100 100 130 130 130 130 130 130 130 130 130
HEM-SL
Model - HEM-SL
30-6 45-9 50-6 60-12 75-9 75-15 90-18 100-12 125-15 150-18 175-21 200-24
Output
On/Off
Max kW 30.0 45.0 50.0 60.0 75.0 75.0 90.0 100.0 125.0 150.0 175.0 200.0
Min kW n/a
High/Low
Modulating
Nat Gas
G20
Max kW 30.0 45.0 50.0 60.0 75.0 75.0 90.0 100.0 125.0 150.0 175.0 200.0
Min kW 16.7 26.1 26.6 28.2 46.1 46.1 55.7 57.9 72.4 88.8 102.5 117.1
LPG
G31
Max KW 30.0 45.0 50.0 60.0 75.0 75.0 90.0 100.0 125.0 150.0 175.0 200.0
Min kW 16.6 24.5 25.3 28.3 38.1 38.1 54.4 54.5 68.2 83.7 96.5 110.3
Temp
Rise Max Δt °C 25
Air Off Max °C 70
Airflow
Minimum
Volume
Nat Gas m
3
/s 0.97 1.45 1.61 1.94 2.68 2.68 2.90 3.23 4.03 4.84 5.64 6.45
LPG m
3
/s 0.97 1.45 1.61 1.94 2.42 2.42 2.90 3.23 4.03 4.84 5.64 6.45
Pressure Drop At above airflow Pa 16 17 20 18 21 15 19 22 19 19 20 21
Electrics
V/ph/Hz 230/1/50@ 0.3A
Current A/pha 0.304 0.304 0.304 0.304 0.304 0.304 0.304 0.304 0.90 0.90 0.90 3.5
Power Total kW 0.07 0.07 0.07 0.07 0.07 0.07 0.07 0.07 0.207 0.207 0.207 0.80
Gas
Connection BSP/Rc ¾ 1¼
Minimum
Inlet
Pressure
Nat Gas mbar 20
LPG mbar 37.0
Rate
Nat Gas m
3
/h 3.53 5.29 5.88 7.05 8.82 8.82 10.58 11.76 14.7 18.04 20.81 23.78
LPG m
3
/h 1.36 2.04 2.27 2.73 3.41 3.41 4.09 4.54 5.68 6.97 8.07 9.19
Flue
Diameter mm ø 100 130
Maximum Length m 18
Nett Weight (single units) Kg 59 85 79 118 106 139 165 130 185 204 235 265
Two Modules
in Series
Max Δt = 50°C
Heat Output kW 60 90 100 120 150 150 180 200 250
300 350 400
Minimum Airflow @ 0°C air inlet m
3
/s 0.97 1.45 1.61 1.94 2.42 2.42 2.90 3.23 4.03 4.84 5.64 6.45
Pressure Drop At Above Airflow Pa 27 29 33 30 35 35 30 37 31 32 34 35
Three Modules
in Series
Max Δt = 75°C
Heat Output kW 90 135 150 180 225 225 270 300 375 450 525 600
Minimum Airflow @ 0°C air inlet m3/s 1.04 1.56 1.73 2.08 2.59 2.59 3.11 3.46 4.32 5.18 6.05 6.91
Pressure Drop At Above Airflow Pa 46 49 54 50 59 43 52 63 52 54 57 58
