1.3.5 Flue System
Only approved flue systems may be used with these units
and must be installed to current standards and rules in
force.
The heater position must permit the provision of a
satisfactory run of flue system and an adequate air
supply. Maximum flue lengths may apply.
The flue must be adequately supported and terminated
with a suitable cowl. The flue must terminate in a freely
exposed position and be sited to prevent the products
of combustion entering any opening in a building in such
concentration as to be prejudicial to health or a nuisance.
IMPORTANT: All flues must be installed in
accordance with IGE/UP/10 Edition 4,
BS5440-1 and BS5440-2 and with reference
to the requirements of the Clean Air Act.

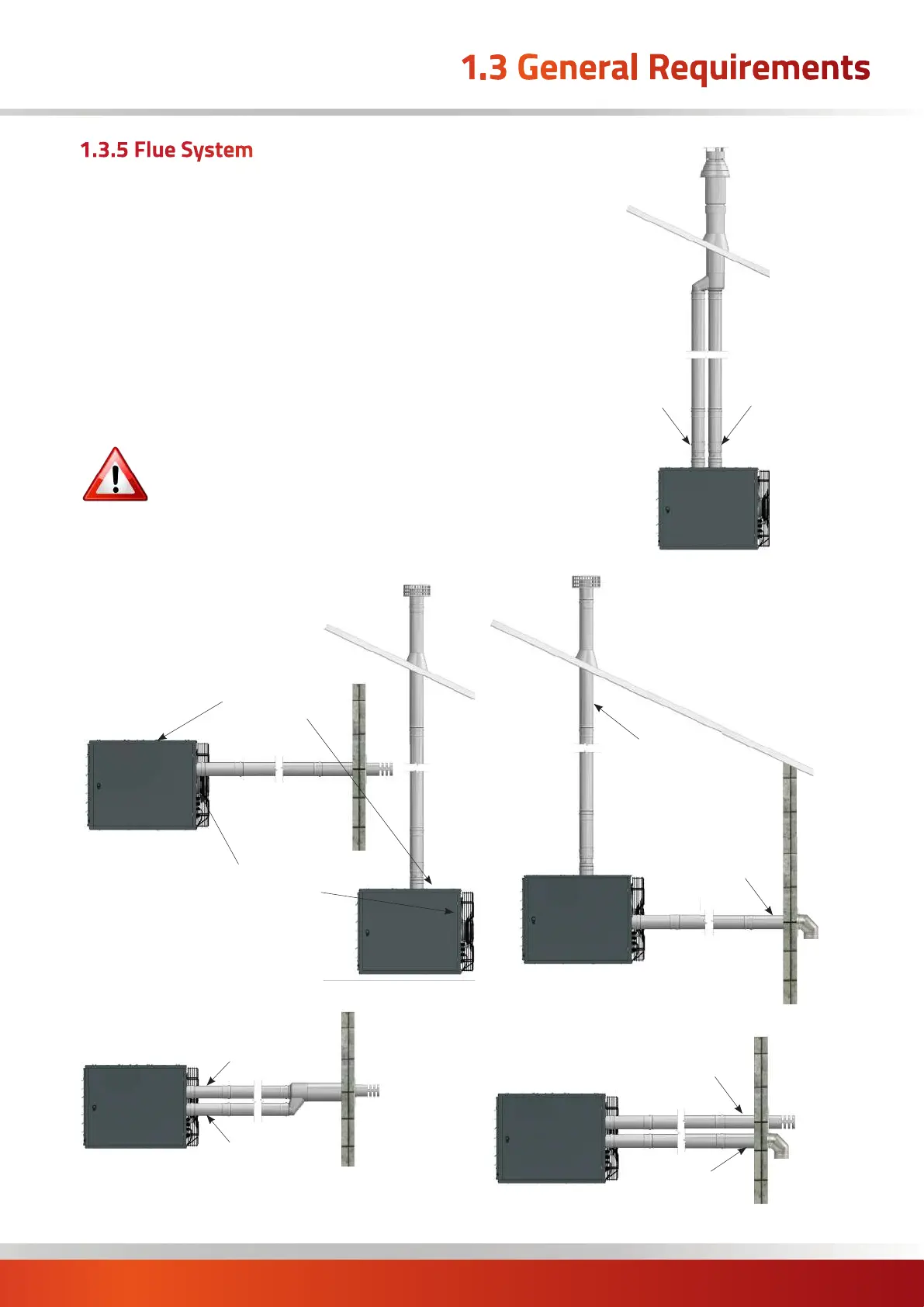

Several configurations of flue and combustion air ducts
are available.
Option 2:
Combustion Air Entry
(fitted with inlet grille)
Option 1:
Combustion Air Entry
(fitted with inlet grille)
Type B22 Installation.
Type C12b/C62 Installation.
Combustion
Air Entry
Combustion
Flue Outlet
Type C32/C62 Installation.
Combustion
Air Entry
Combustion
Flue Outlet
Combustion
Air Entry
Type C52 Installation.
Combustion
Flue Outlet
Type C12 Installation.
Combustion
Air Entry
Combustion
Flue Outlet
