LX Range Users, Installation & Servicing Instructions Doc Ref M110 issue 1.0 Dec 2020.

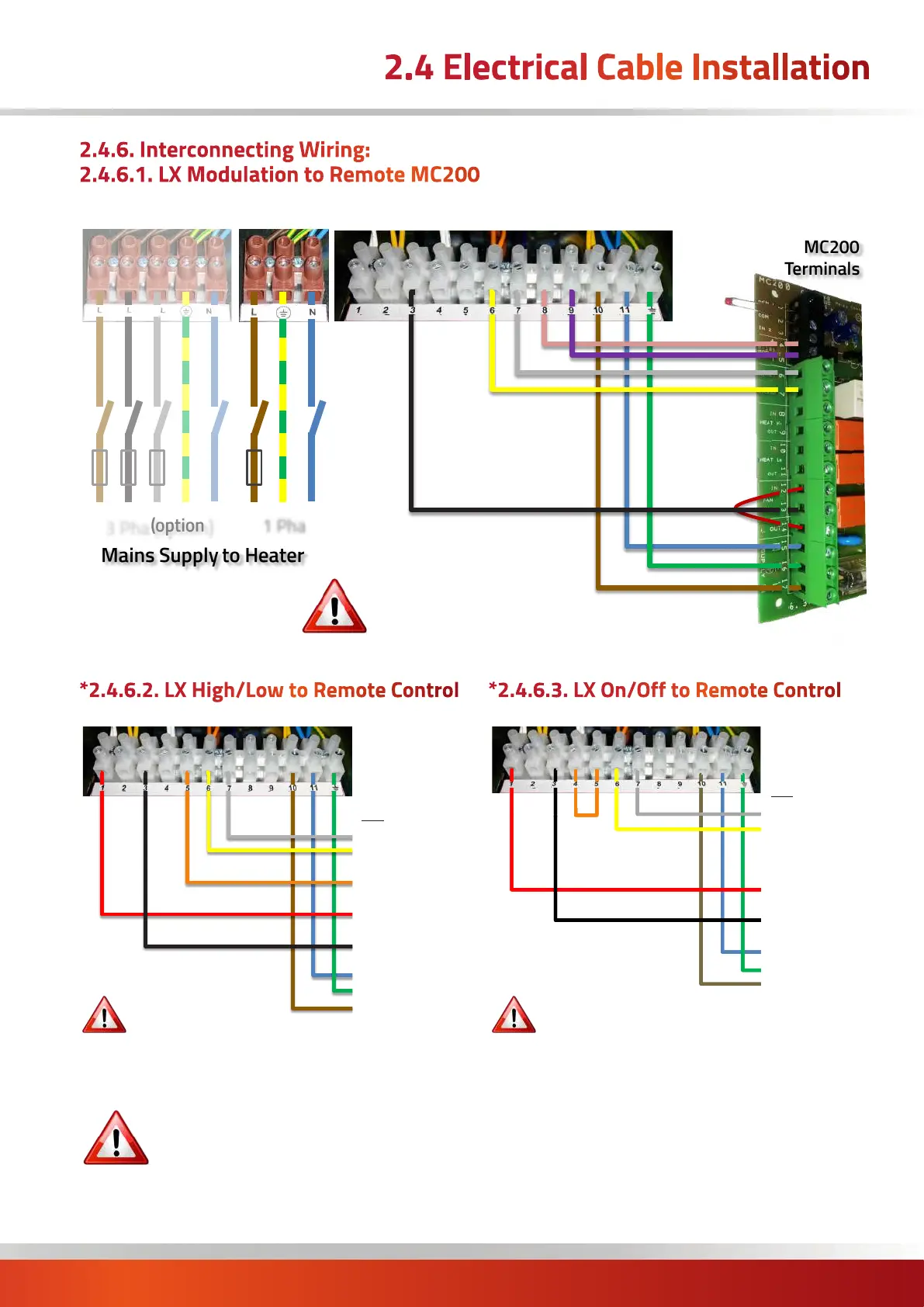

2.4 Electrical Cable Installation
2.4.6. Interconnecting Wiring:
2.4.6.1. LX Modulation to Remote MC200
*2.4.6.2. LX High/Low to Remote Control *2.4.6.3. LX On/Off to Remote Control
MC200
Terminals
MC200
Terminals
* When used with existing controllers
Key:
Lockout Reset
Lockout Indication
*High Fire Input
*Low Fire Input
Fan Only
Neutral
Earth
Live
Key:
Lockout Reset
Lockout Indication
*Low Fire Input
Fan Only
Neutral
Earth
Live
Warning: External controls
MUST be powered via heater
terminal 10, 11 and Earth
Warning: External controls
MUST be powered via heater
terminal 10, 11 and Earth
Warning: External controls
MUST be powered via heater
terminal 10, 11 and Earth
Warning: Ensure AC enable circuits (Fan Only, Low Fire, High Fire etc.) are volt free i.e. 0V (off) or 230V
(on), as voltages >80VAC may cause nuisance triggers.
