Powtran PI500A Series User Manual

4 / 16
Product standard
Product adopts safety
standards.
IEC61800-5-1:2007
Product adoptsEMC
standards.
IEC61800-3:2005
Cooling method
Forced air cooling

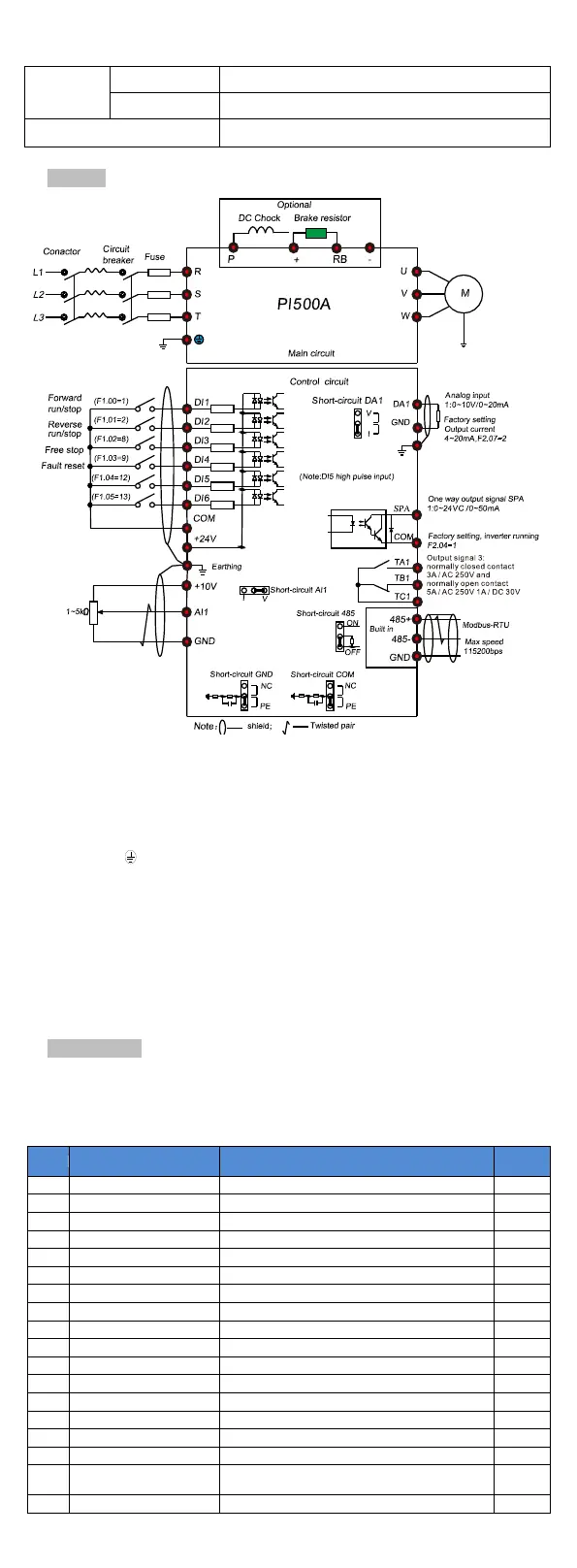

6. Diagram
Notes in main circuit wiring
(1)Wiring specifications, please implement wiring in accordance with electrical regulations;
(2)Do not connect AC to the output of frequency converter (U, V, W), otherwise the frequency inverter
will be damaged.
(3)Power supply wiring, please try to use isolation line and pipeline, and the isolation line or pipeline ends
grounded.
(4)Frequency inverter grounding wire can not be grounded together with welding machine, high-power
motor or high current load, please grounding alone;
(5)Grounding please grounding correctly,grounding resistor less than 10Ω;
Notes in wiring control circuit
(1)Please separate the control signal line from the main circuit line and other power lines.
(2)To prevent misoperation caused by interference, use twisted or double shielded wires.,specification 0.5
to 2mm²
(3)Make sure the permissible conditions of each terminal, such as power supply, maximum permissible
current, etc
(4)The terminal wiring requirements, correct selection of accessories, such as: voltmeter, input power
supply, etc. After completing the wiring, please check it correctly and make sure that it is correct before power
is available.
(5)After completing the wiring, please check it correctly and make sure that there is no mistake before
power can be turned on.
7. Parameter list
In PI500A series frequency inverters, some parameters are "manufacturer reserved", and their serial
numbers are not listed in the function parameter table, which leads to the discontinuity of some parameter serial
numbers in the table. For the parameters not introduced in the manual, please do not attempt to modify them to
avoid causing errors.
d0 group Monitoring function group
Code
Parameter name
Functional Description
Factory
setting
d0.00
Running frequency
Actual output frequency
0.01Hz
d0.01
Set frequency
Actual set frequency
0.01Hz
d0.02
DC bus voltage
Detected value for DC bus voltage
0.1V
d0.03
Output voltage
Actual output voltage
1V
d0.04
Output current
Effective value for Actual motor current
0.01A
d0.05
Output power
Calculated value for motor output power
0.1kW
d0.06
Output torque
Motor output torque percentage
0.1%
d0.07
DI input status
DI input status
-
d0.08
DO output status
DO output status
-
d0.09
AI1 voltage (V)
AI1 input voltage value
0.01V
d0.12
Count value
Actual pulse count value in counting function
-
d0.13
Length value
Actual length in fixed length function
-
d0.14
Actual operating speed
Motor actual running speed
-
d0.15
PID setting
Reference value percentage when PID runs
%
d0.16
PID feedback
Feedback value percentage when PID runs
%
d0.17
PLC stage
Stage display when PLC runs
-
d0.18
HDI(DI5) d pulse input
frequency
HDI(DI5) High-speed pulse input frequency display,
unit: 0.01Khz
0.01kHz
d0.19
Feedback speed
Inverter actual output frequency
0.01Hz
