Section IV Main circuit and terminal wiring
11
Motor
Three-phase
4-4. PR5200C external terminal description
4-4-1. Terminal 3,4 is programmable relay,output and function set by the setting
item PE
，
as normally open dry contact.Contact capacity is:AC 250V/5A.
4-4-2. Terminal 5
，
6 as fault output,when the soft starter failure or loss of power
closed
，
when the soft starter normal open
，
contact capacity is:AC 250V/5A
4-4-3. Terminal 11
，
12 as 0 to 20mA
、
4 to 20mA DC analog output
，
use for
real-time monitoring current,when the full scale is 20mA,the instruction motor current
is four times as the soft starter nominal rated current,you can external 0 to 20mA
、
4 to
20mA DC ammeterto observate
，
the output load resistance max value is 300 ohm.
Remark: the machine defaults to 4 ~ 20mA output, if need 0 ~ 20mA output please
explain in order.

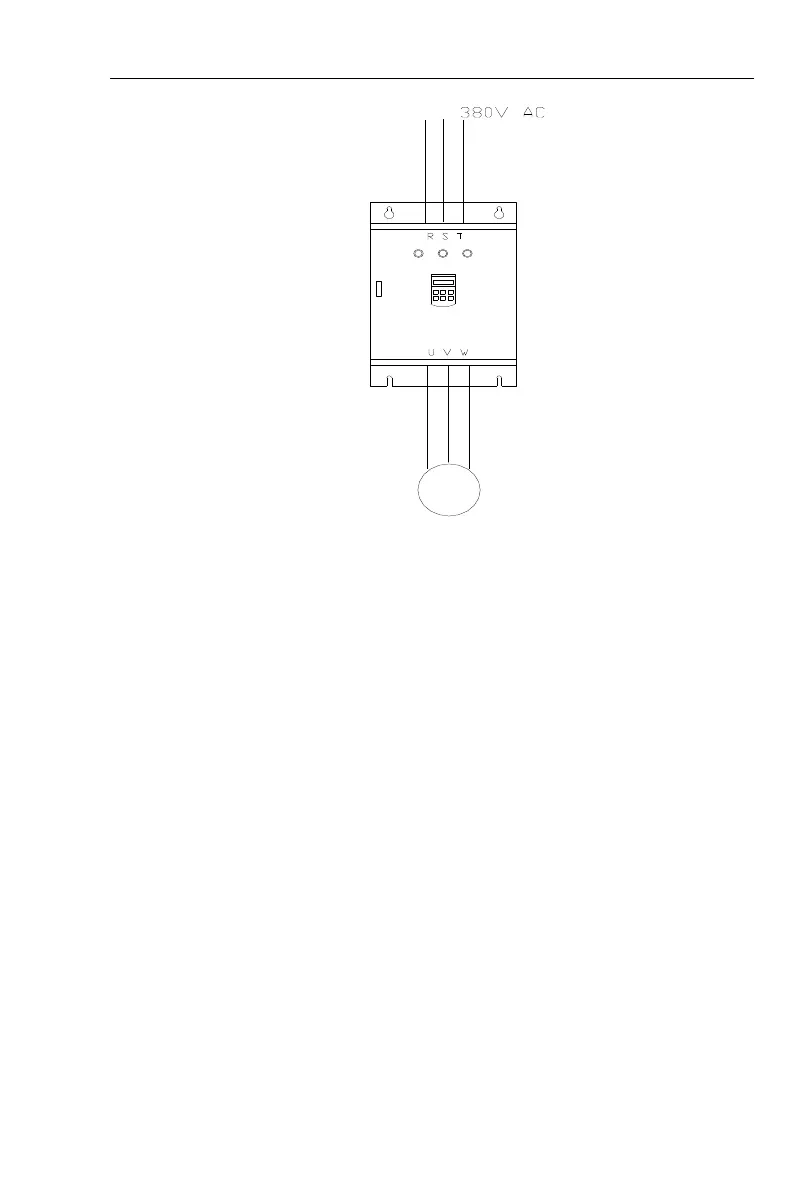

4-4-4. PR5200C series main circuit wiring schematic diagram.
