XPOL-2-5G is a unique pole and wall
mountable, high gain, CPE antenna. It can be
mounted outdoors on a pole of up to 50mm in
diameter.
Follow the instructions below for installation.
Mounting Configurations:
1. Pole Mounting
• Lay the antenna out at the installation site
and assemble the antenna on the ground.

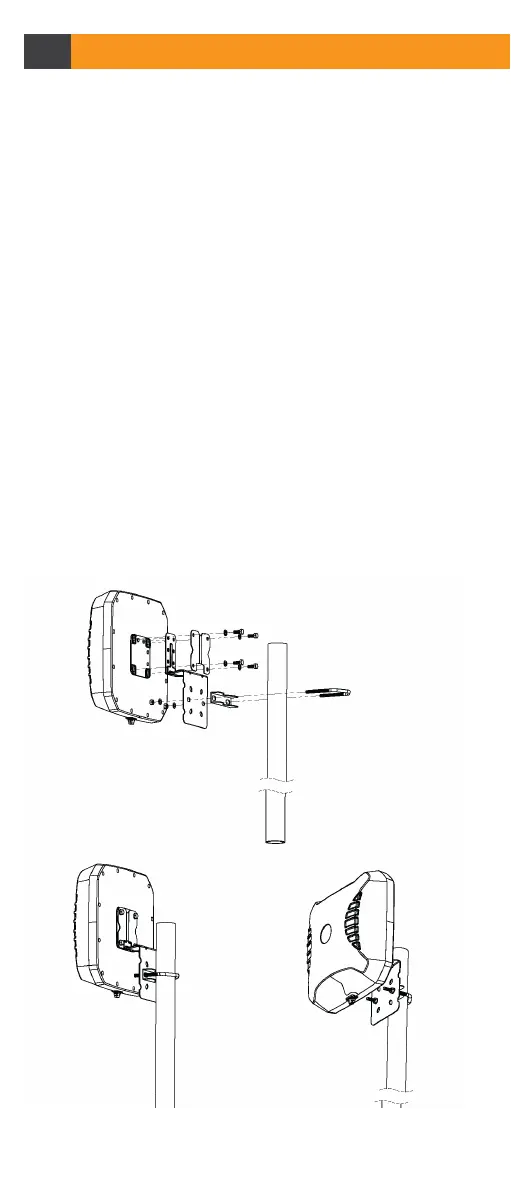

• Place the pipe clamp through the bracket as
shown below.
• Next place the cable clamp around the pole
and tighten the screw on the cable clamp
until the bracket is secured to the pole.
• Mount the antenna so that there is at least 1
meter of clearance in all directions around it
and unobstructed line of sight to the cell
tower’s strongest signal.
