4

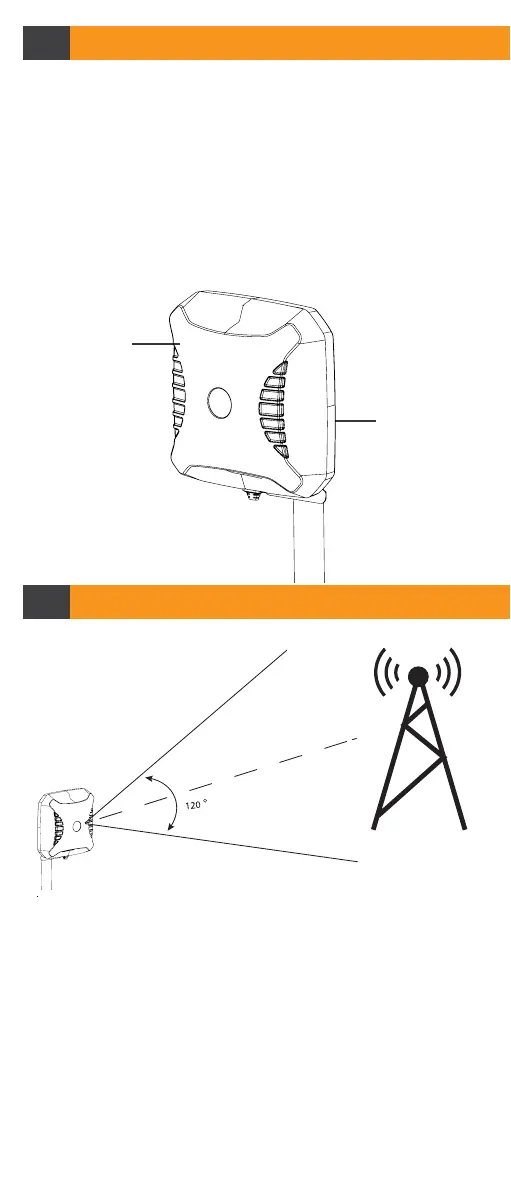

Antenna Alignment
• Use appropriate equipment (signal meter or
App) to locate the nearest cellular tower in your
location as well as the greatest signal strength
for the antenna to draw upon.
• Once you have located the tower, point the
main center beam of your antenna in the
general direction of the cell tower.
Note: Recommended beam width is 120°
Front of
Antenna
Back of
Antenna
4
Antenna Alignment
• To optimise the antenna alignment, rotate the
antenna left and right in 15° increments until you
get the best signal strength reading. Lock the
antenna down at the position where you get the
best signal strength.
Note: When rotating the antenna, be sure to let go of
the antenna as this may give inaccurate readings.
