11

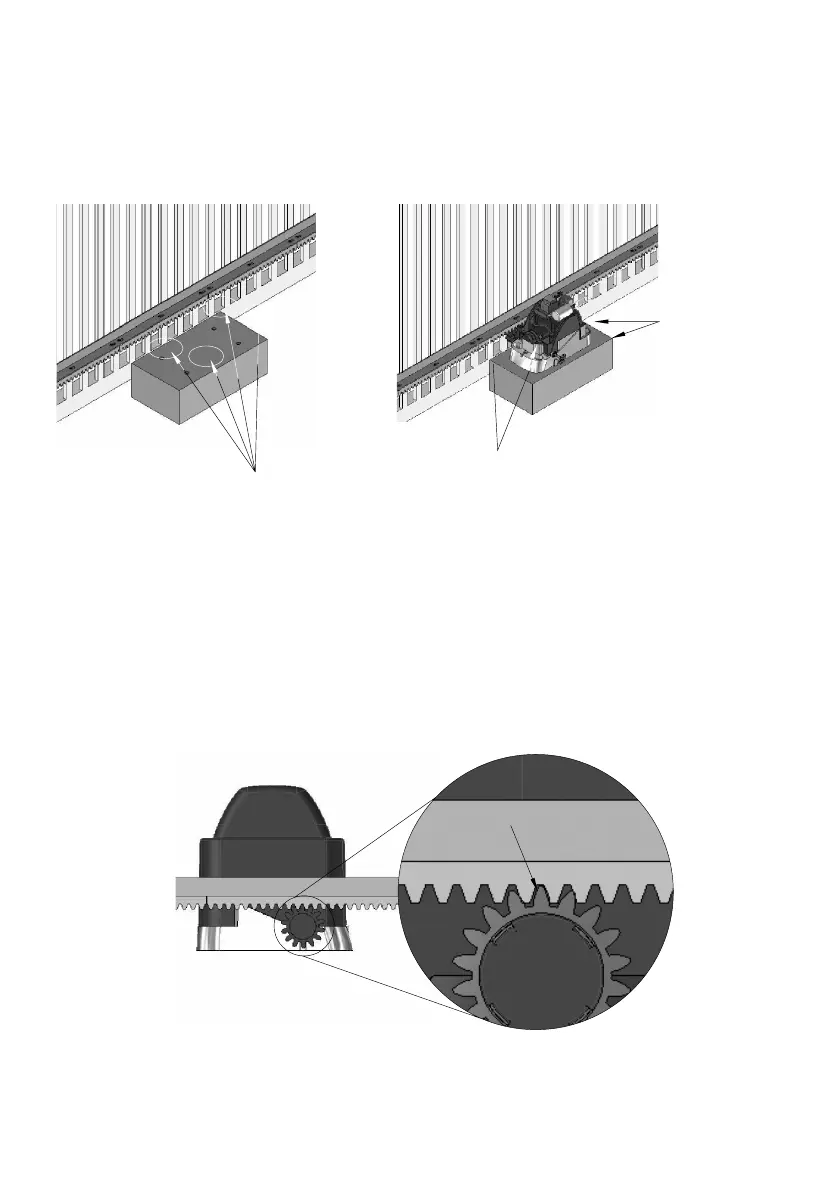

5º Step: Make the hole for the fixing, positioning the operator aligned to the
gate. Before tightening the S ¼ "x 2 ½" bolts, move the gate, making sure that
it does not lean against the operator in the course of its course. If this occurs,
back off the operator.
6º Step: With the operator unlocked, position the rack bar on the gear and aligned
with the gate.
It is necessary to leave a gap of approximately 2 mm between the tooth top of the
gear and rack tooth bottom.
2 mm GAP
HOLES OF FIXING
THE OPERATOR
PLACE 2 SCREWS S ¼ "X 2 ½"
WITH S10 BUSHING
PLACE 2 SCREWS
S ¼ "X 2 ½"
WITH S10
BUSHING
