INVERTER GENERATOR – P2000i
19
Using a #2 Phillips-head screwdriver remove screws 1 and 2 (seen in figure
1) and lift up and away to remove the side panel.

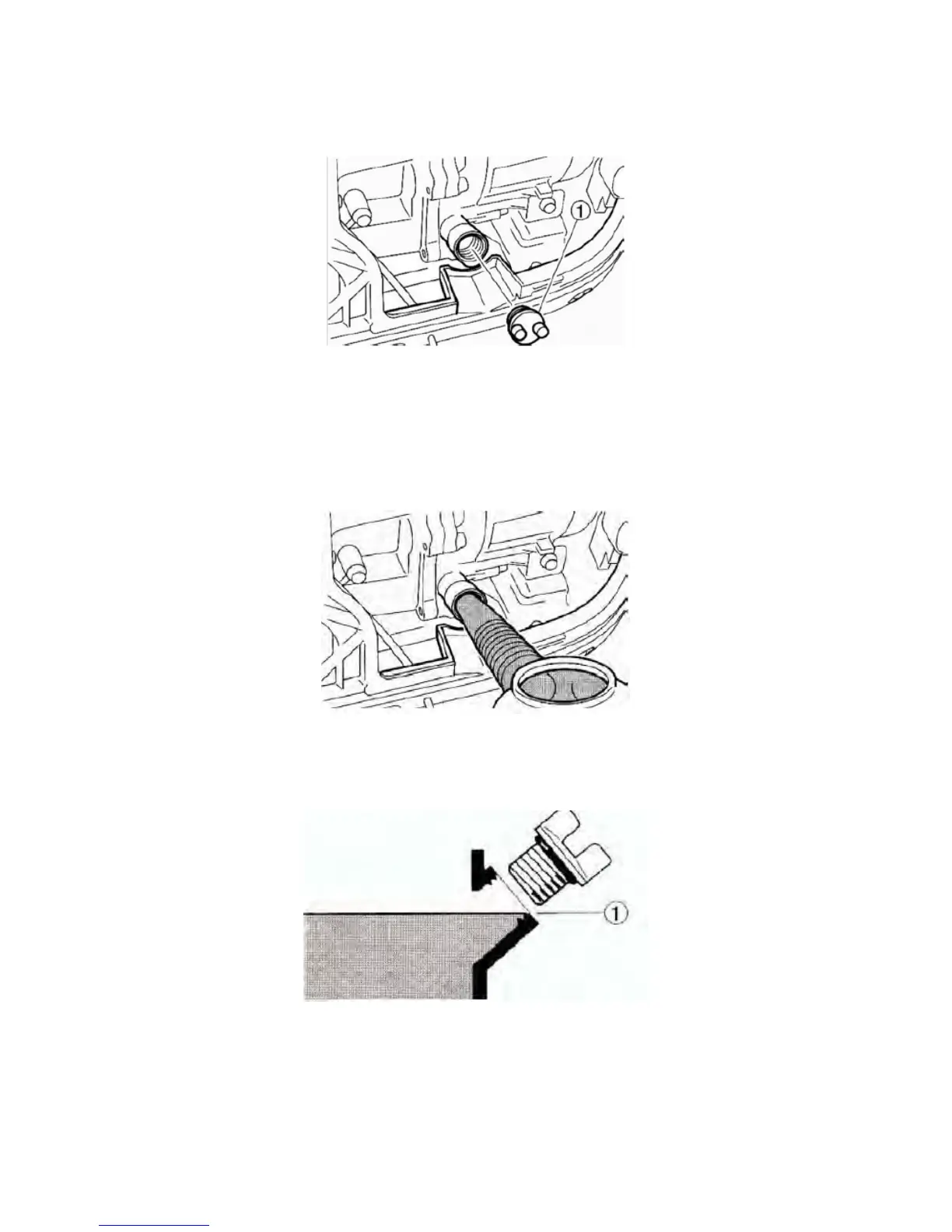

Figure 2
Place the generator on a level surface. DO NOT tilt the generator while
adding oil. It can cause you to overfill the oil and/or cause the oil to leak into
areas in which it is not intended.
Remove the oil filler cap 1 (seen in figure 2).
Figure 3
Using the funnel (provided) fill with 0.4 L of SAE 10W-30 or 10W-40
(provided) (see figure 3). See figure 4 for proper oil level 1.
Figure 4
Replace oil filler cap and secure side panel with screws.
Recommended engine oil:
A. YAMALUBE4(10W-40)
SAE10W-30or10W-40
B. SAE #30
