Pramac S5000 - S7500 GENERATOR PARTS

S7500 GENERATOR PARTS
24

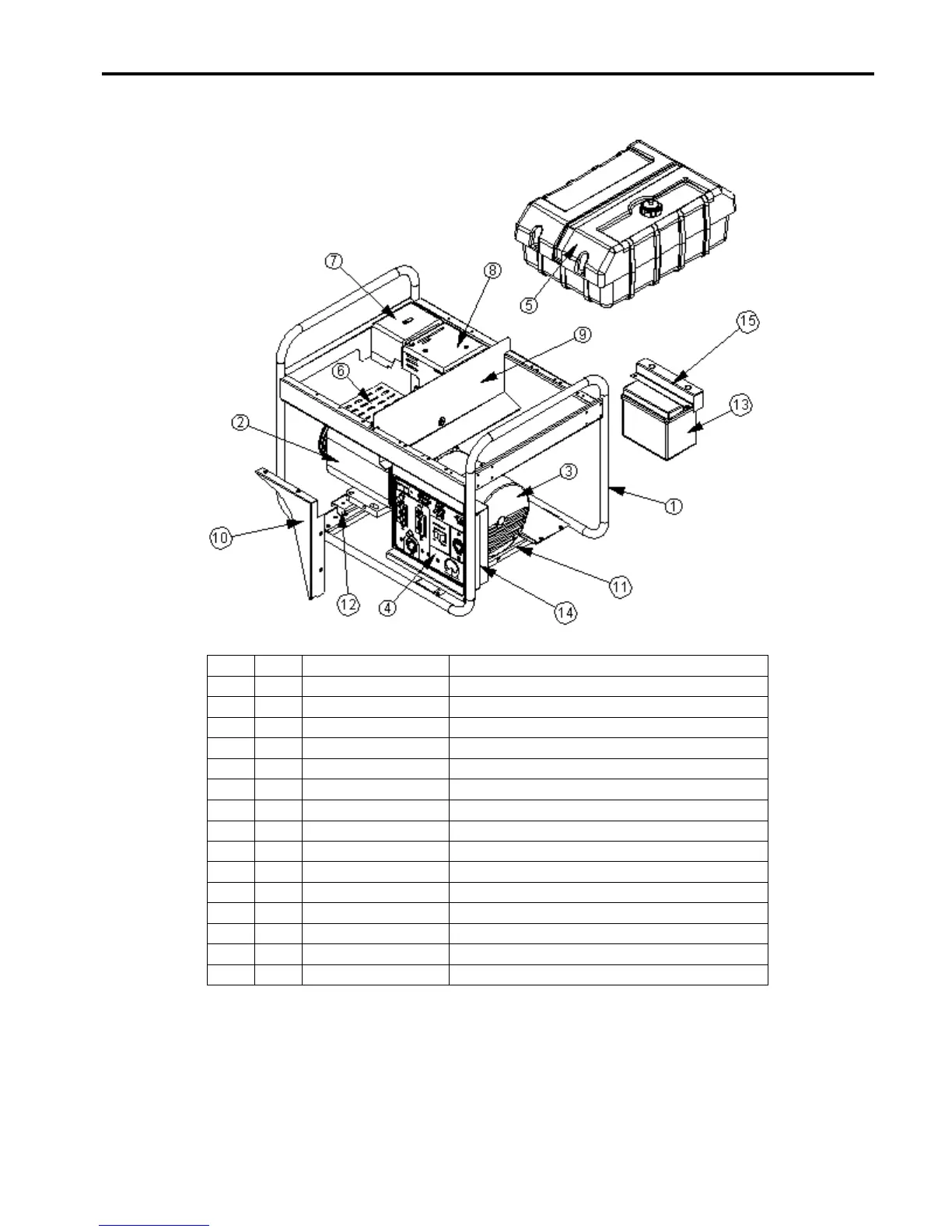

S7500 GENERATOR PART LISTS
ITEM Q.TY PART NO. DESCRIPTION
1 1 VA40011021-PRAMAC FRAME ASSEMBLY
2 1 EHB130CB30Z ENGINE HONDA GX390 K1VCN2
3 1 AMM7200RB0000Y ALTERNATOR S20W-95/A
4 1 SA40011022 S7500 CONTROL PANEL
5 1 ///// FUEL ASSEMBLY
6 1 ///// IDLE CONTROL ASSEMBLY
7 1 ///// AIR FILTER ASSEMBLY
8 1 ///// MUFFLER ASSEMBLY
9 1 VA8429-9005 HEAT SHIELD
10 1 VA9405-PRAMAC CONTROL PANEL SHIEL
11 1 ///// GROUND WIRE ASSEMBLY
12 1 ///// ENGINE SUB-FRAME ASSEMBLY
13 1 G089001 BATTERY 12V
14 1 VA40011012-9005 CONTROL PANEL BOX
15 1 VA40011710-9005 BATTERY HOLD DOWN
Refer to the S5000 section of this manual for details of the following items:
Item 5 – Fuel Assembly, Item 12 – Sub-Frame Assembly, Item 11 – Ground Assembly &
Item 6 – Idle Assembly
