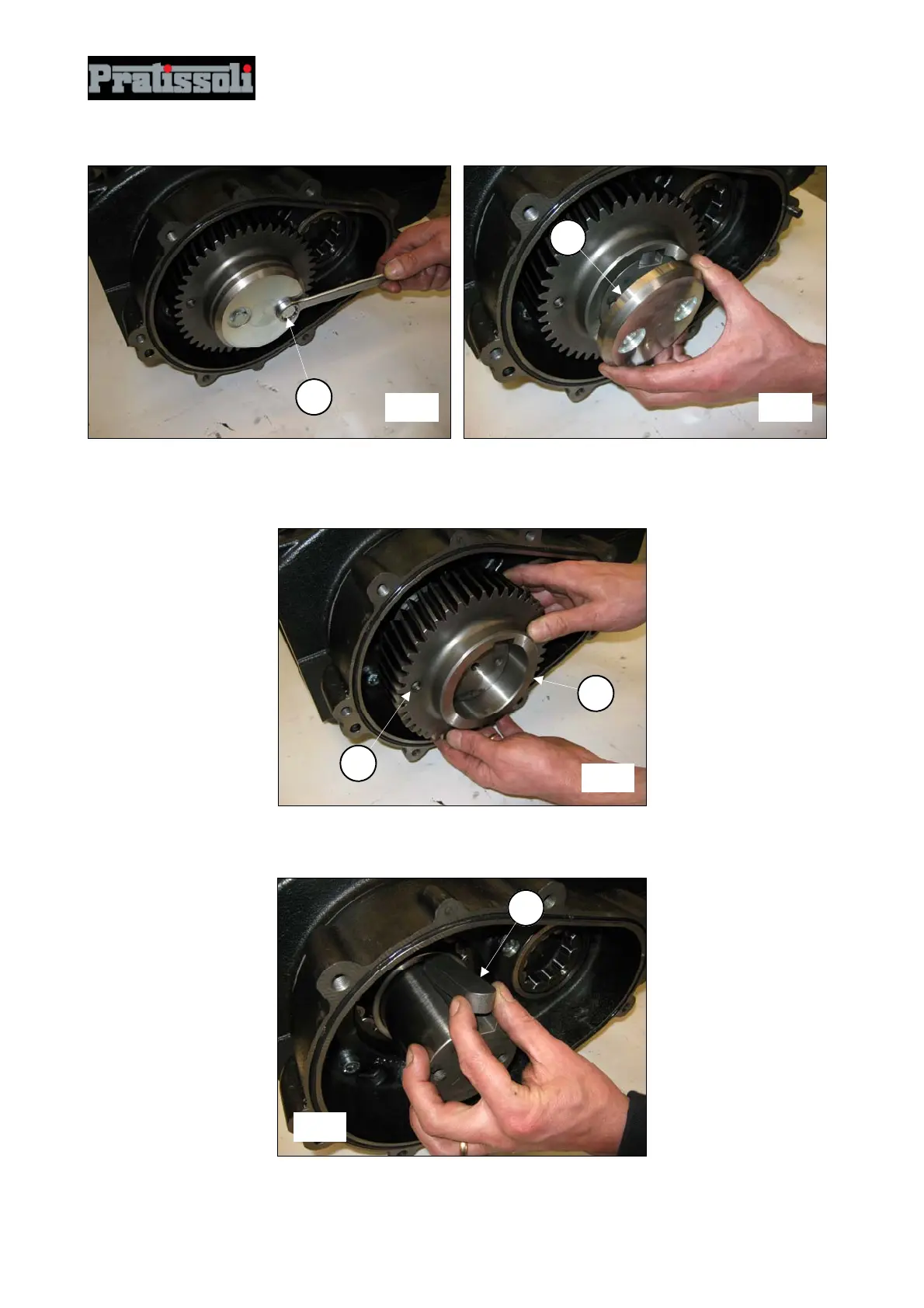

Unscrew the screws holding in the ring gear (pos.c, fig.12) and remove it (pos.c, fig.13).
Remove the ring gear (pos.c, fig.14). Where necessary, it is possible to utilise an extractor hammer to be
applied on the 2 M8 holes (pos.d, fig.14)
Remove the tab from the shaft (pos.c, fig.15).
fig. 12
1
fig. 13
1
1
2
fig. 14
fig. 15
