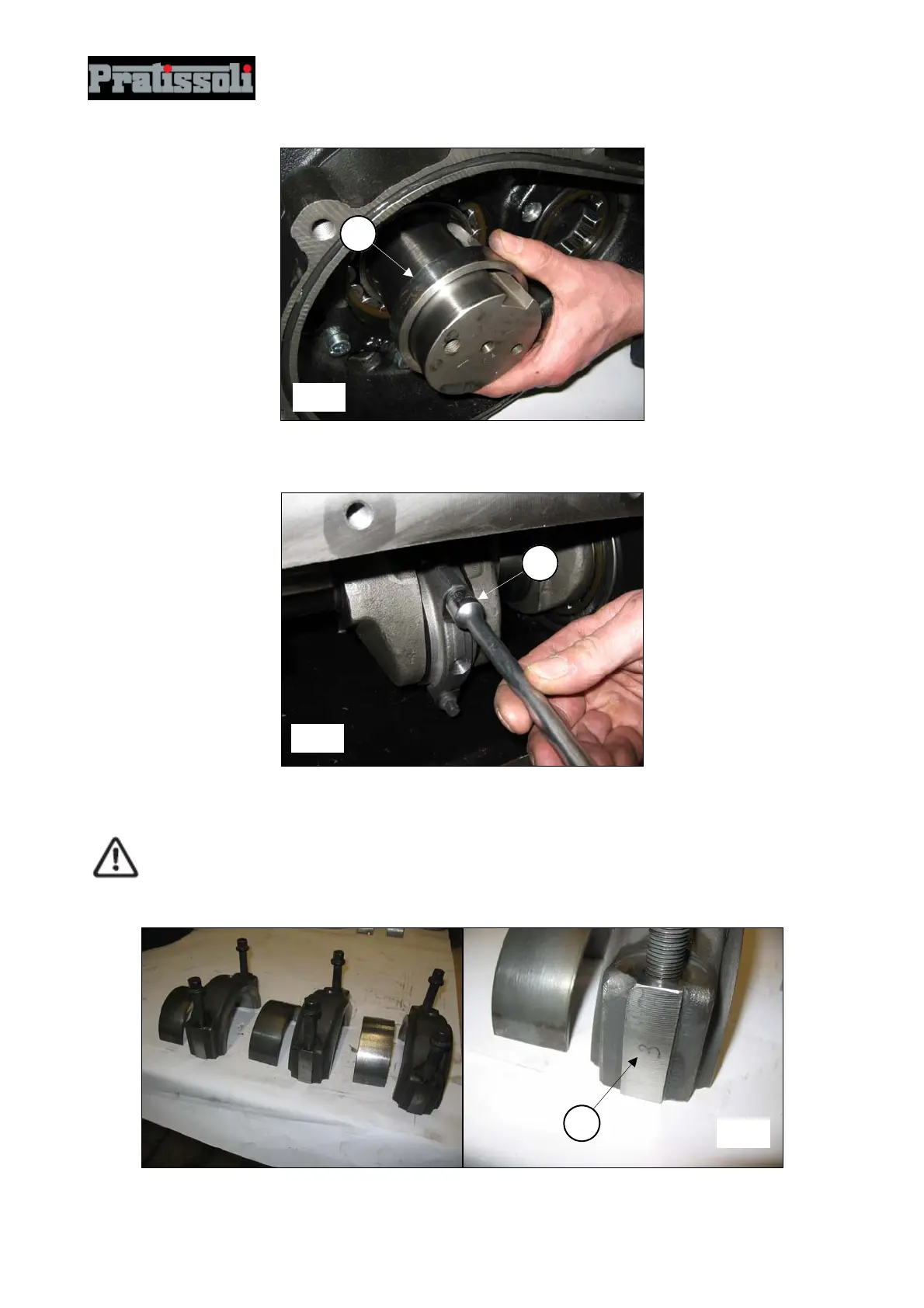

Remove the ring gear support ring (pos.c, fig.16).
Unscrew the con-rod screws (pos.c, fig.17).
Remove the con-rod caps with the lower semi-bearings, taking special care of the disassembly sequence
during disassembly.
The con-rod caps and their relative half supports must be reassembled in exactly the same
order and coupling with which they were disassembled.
To avoid possible errors, caps and half supports have been numbered on one side (pos.c, fig. 18) .
