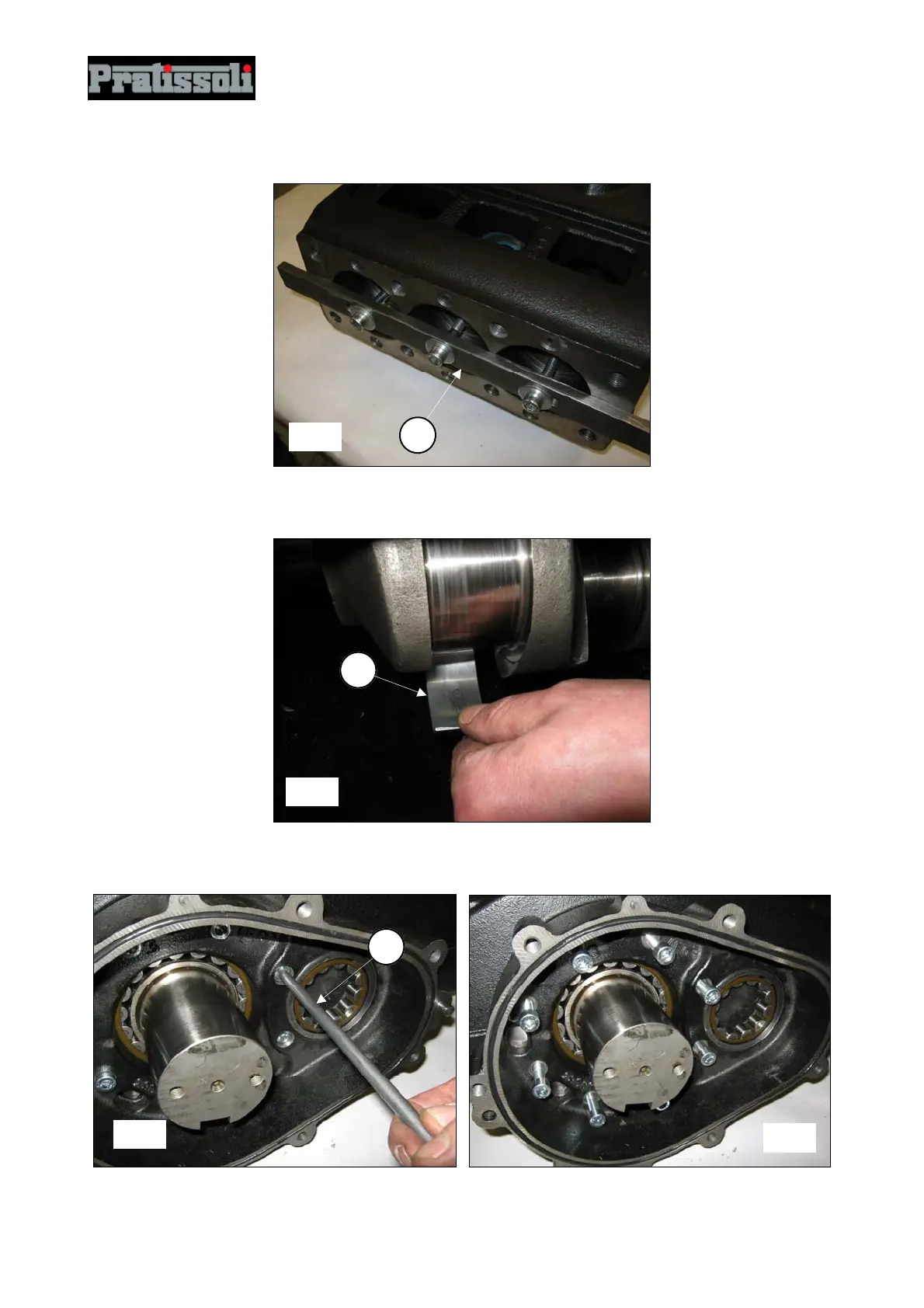

Advance the half supports completely in the direction of the hydraulic part to allow the bend shaft to come
out. To facilitate this operation, use special tool (code 27566200), (pos.c, fig.19).
Remove the three upper half-bearings of the half supports (pos.c, fig.20).
Unscrew the reduction gear box fixing screws (pos.c, fig.21 and fig.22).
fig. 19
1
fig. 20
1
fig. 21
1
fig. 22
