5
4
3
5
4321
2
1
V-
V+
CAN_L
CAN_H
SHIELD

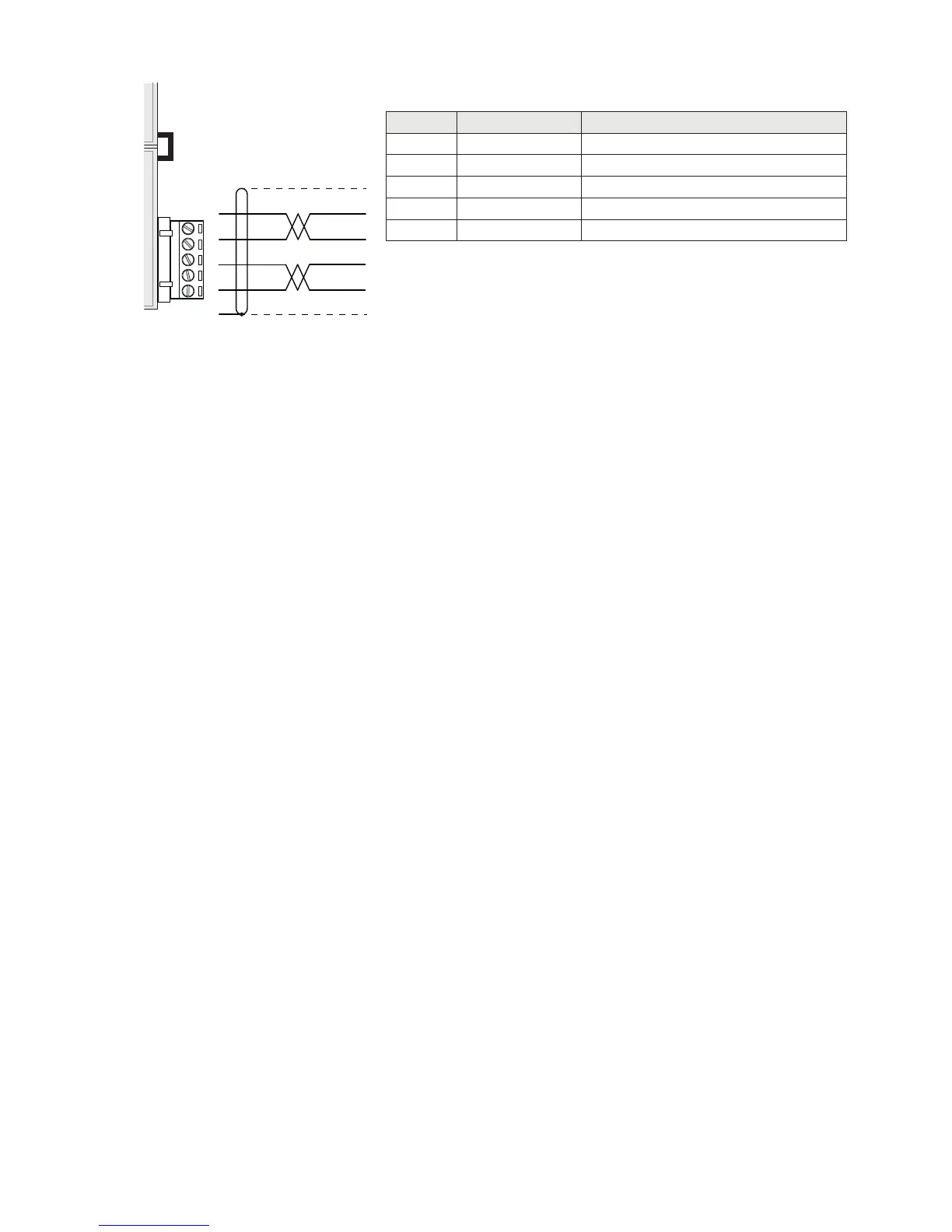

DEVICENET CONNECTION (OPTIONAL)
Pin Signal Description
1 V- Negative power bus
2 CAN_L CAN low bus line
3 SHIELD Shield
4 CAN_H CAN high bus line
5 V+ Positive power bus
To connect to the DeviceNet master, use a standard DeviceNet cable
or shielded twisted-pair cable as shown on the diagram.
The cable must not be channeled with power cables. For reliable
operation of the Fieldbus, should be used as a line termination of
121 Ω value between the terminal CAN_L and CAN_H.
For the configuration of the card is available ESD file that must be
installed in the master.
