Section 5 PARTS
MOTOR CONTROLS

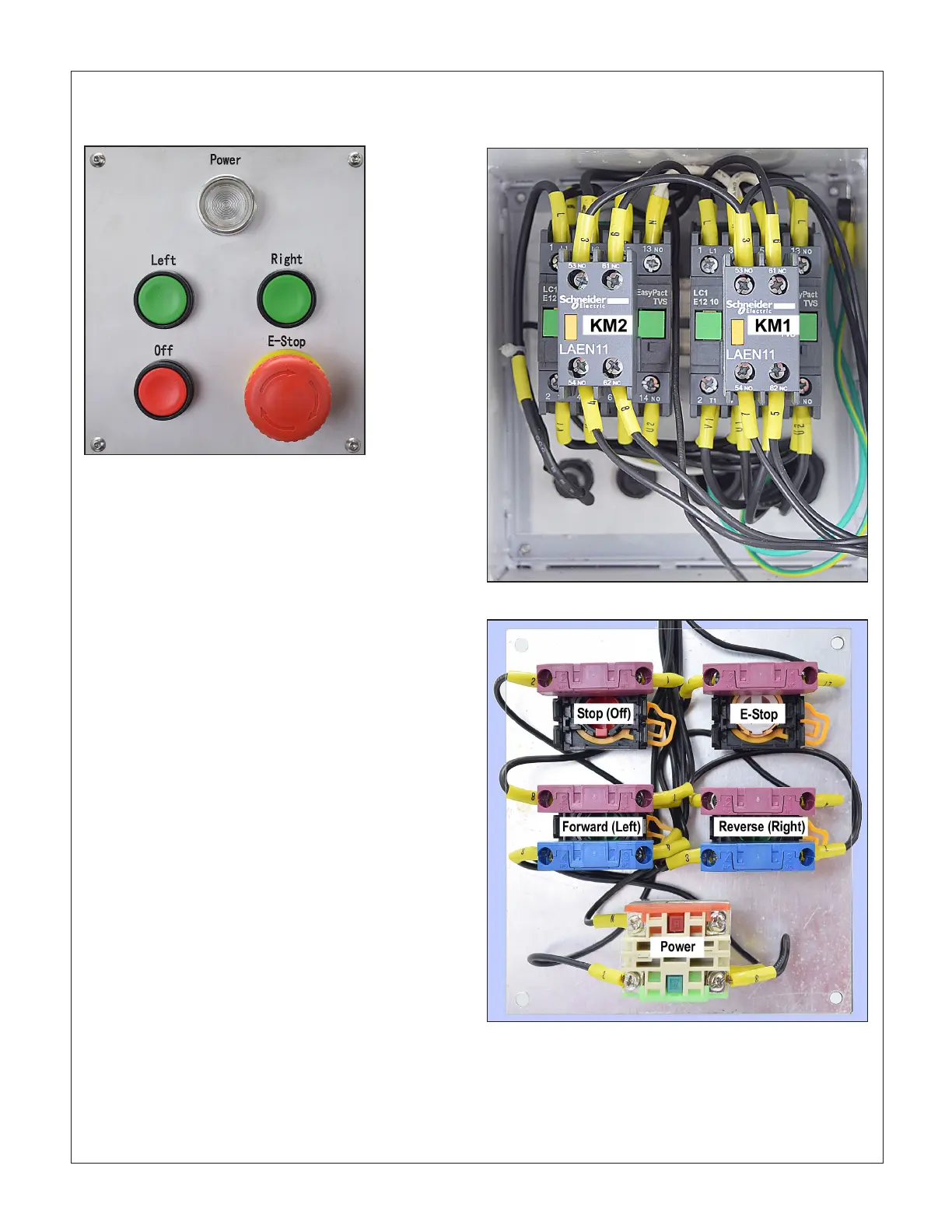

Power Press once to energize, press
again to de-energize.
Left = Spindle Forward = clockwise
looking down on mill table
Right = Spindle Reverse = counter-
clockwise
O = Stop motor
E-Stop Emergency disconnect (stays
in until turned counter-clockwise to
release)
