29PM-727MV v6 2020-10 Copyright © 2020 Quality Machine Tools, LLC

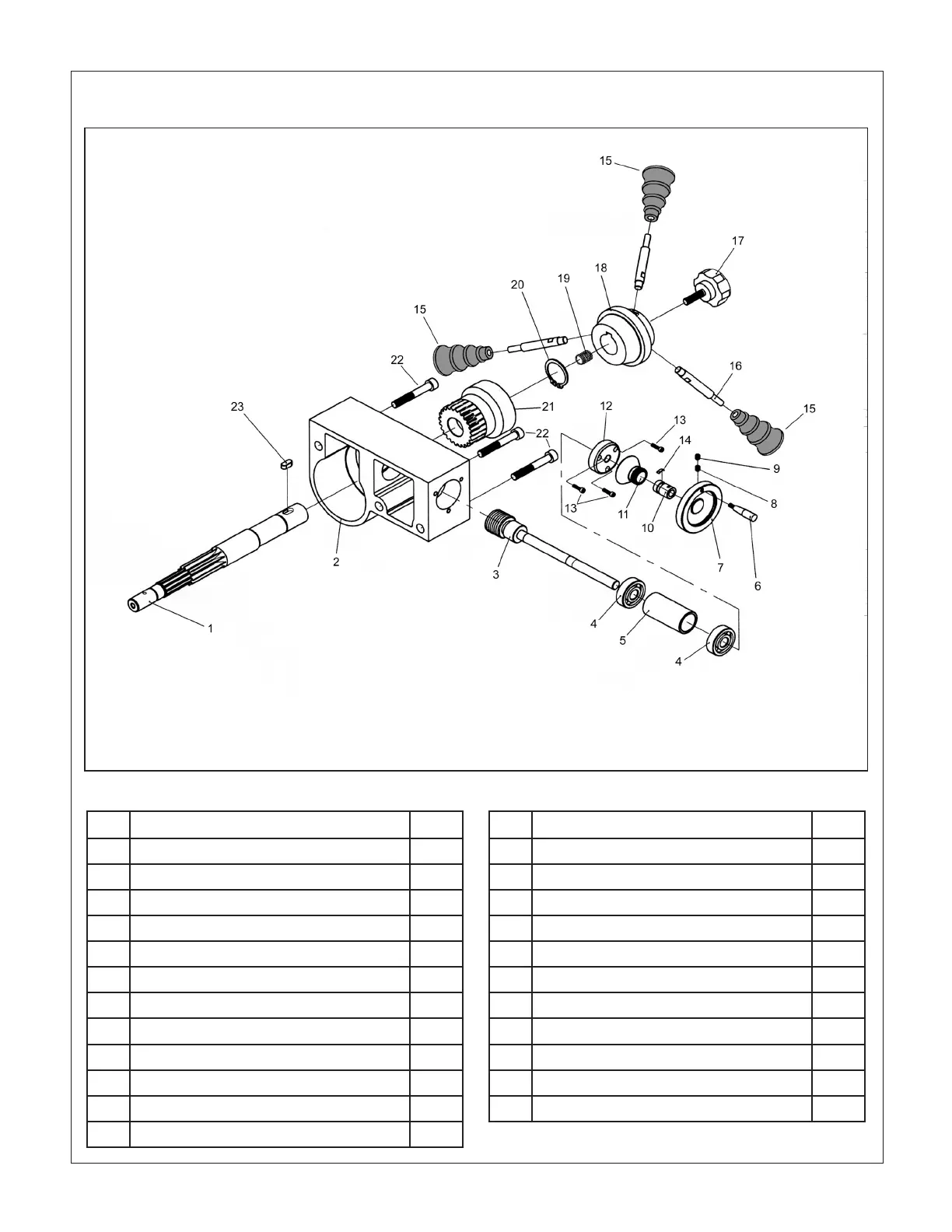

QUILL FEED COMPONENTS Fig 7
Ref Description Part
1 Quill pinion shaft Z5939
2 Gear housing Z5940
3 Worm assembly Z5941
4 Ball bearing: 6200 (2) Z5942
5 Sleeve Z5943
6 Handle Z5944
7 Handwheel Z5945
8 Screw: M6 x 8, set Z5946
9 screw: M6 x 5, set Z5947
10 Dial bush Z5948
11 Graduated dial Z5949
12 Flange Z5950
Ref Description Part
13 Screw: M4 x 7, skt hd (3) Z5951
14 Friction spring Z5952
15 Grip (3) Z5953
16 Lever (3) Z5954
17 Clamp knob Z5955
18 Hub Z5956
19 Spring Z5957
20 Retaining ring: 25, Ext Z5958
21 Worm gear Z5959
22 Screw: M8 x 55, skt hd (3) Z5960
23 Key Z5961
All dimensions in mm
There may be detail dierences
between this representative drawing
and the machine as supplied
