POWER / MUTE
Designed and Handcrafted in the U.S.A.
QBASS
0
+ 18
QBASS
REMOTE
-
+
POWER / MUTE
Designed and Handcrafted in the U.S.A.
QBASS
0
+ 18
QBASS
REMOTE
-
+
POWER / MUTE
Designed and Handcrafted in the U.S.A.
10

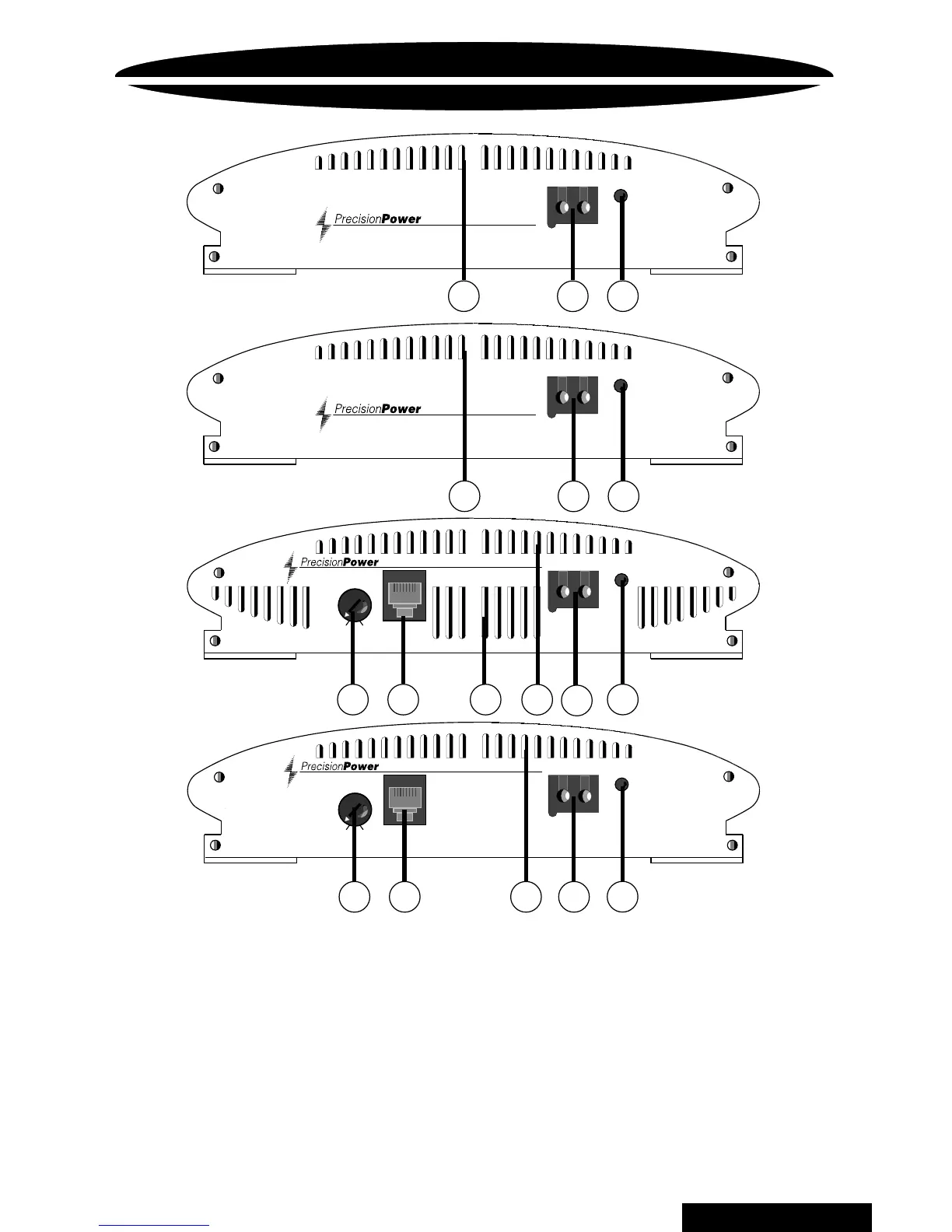

ENDPLATE DIAGRAMS
POWER / GROUND / Q BASS
™
231
23
1
1
3
5
6
5
6
7
PC4400
PC4800
PC6600
1. POWER / GROUND PowerLock
After you have securely connected your power and ground wires, plug in the
Power / Ground PowerLock connector here.
2. COOLING VENTS (see page 18).
3. POWER / MUTE indicator
A green light indicates that the amplifier is on, a red light indicates that the amplifiers
muting circuits are engaged.
4. POWER indicator
A green light indicates that the ampilfier is on.
5. QBASS
™
Level
Turn this control clockwise to boost the Q BASS PLUS
™
circuit by up to 18dB.
6. QBASS REMOTE™ plug in
Plug in the data cable from the optional Q BASS REMOTE
™
dash mount level control here.
(This will bypass the amplifier's on board Q BASS
™
control)
7. FORCED AIR INTAKE VENTS (see page 18 and 19).
2
PC4200
-
+
POWER
Designed and Handcrafted in the U.S.A.
241
