Aperture adapter
(cooled, rotating)
AM YW30 CL R / P0253-1406-00001
Function
The
aperture adapter
can accept different fibre
socket versions. Depending on the collimation, an
aperture diaphragm is installed to assist beam
shaping.
The integrated water cooling system absorbs heat.
The fibre socket mounting ring can be aligned (±30°).
If the fibre socket is fitted to the machine in
such a way that it cannot be accessed easily,
the mounting ring can adjusted (turned) using
the connection bore holes (8 x 45°).
(see the paragraph "Installation /
Commissioning" on the next page)
.

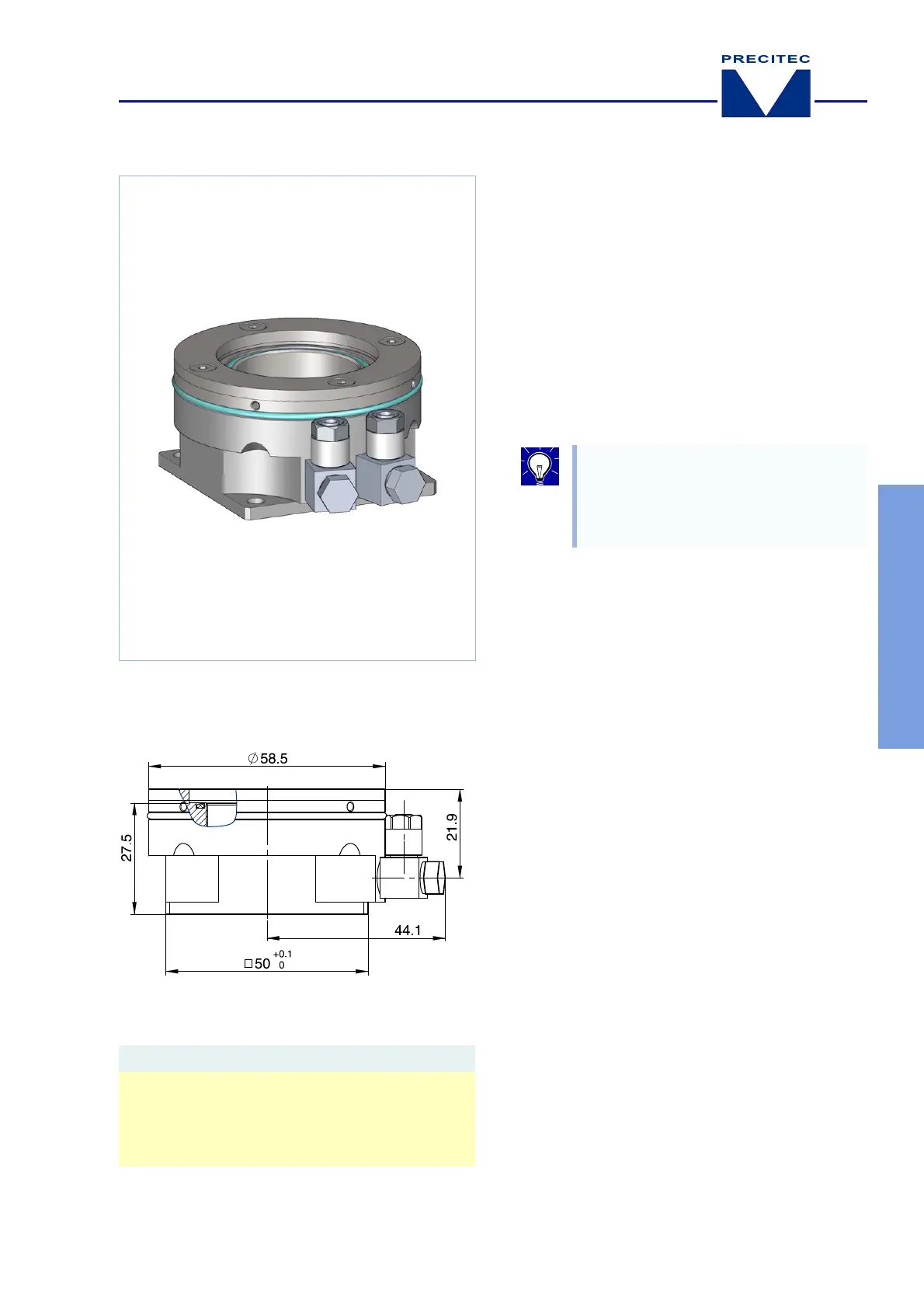

Mechanical dimensions Interfaces
Fitting
• Aperture diaphragm
Mounting
Technical specifications
Water pressure max. 5 bar
(0.5 MPa)
Flow rate min. 2.0 l/min
Connections Supply lines with an external/
internal diameter of ø6/ø4 mm
