Maintenance / Care
Attention – Corrosion in the cooling circuit!
To protect the water cooling circuit
(stainless
steel)
against electro-chemical corrosion, copper
or brass connections must not be used.
Only
stainless steel
or
plastic
connections can be used.
For more detailed information, please refer to
Chapter Installation - "Connecting the
cooling water system"
.
Installation / Commissioning
Adjustment
±
30°
Specific adjustment 8 x 45°
Attention - Cooling water!
Only
distilled
water must be used, conductivity
< 20 to 50 µS/cm. The temperature inside the
water cooling circuit must be set in such a way
that
condensation
cannot
form on the optics.

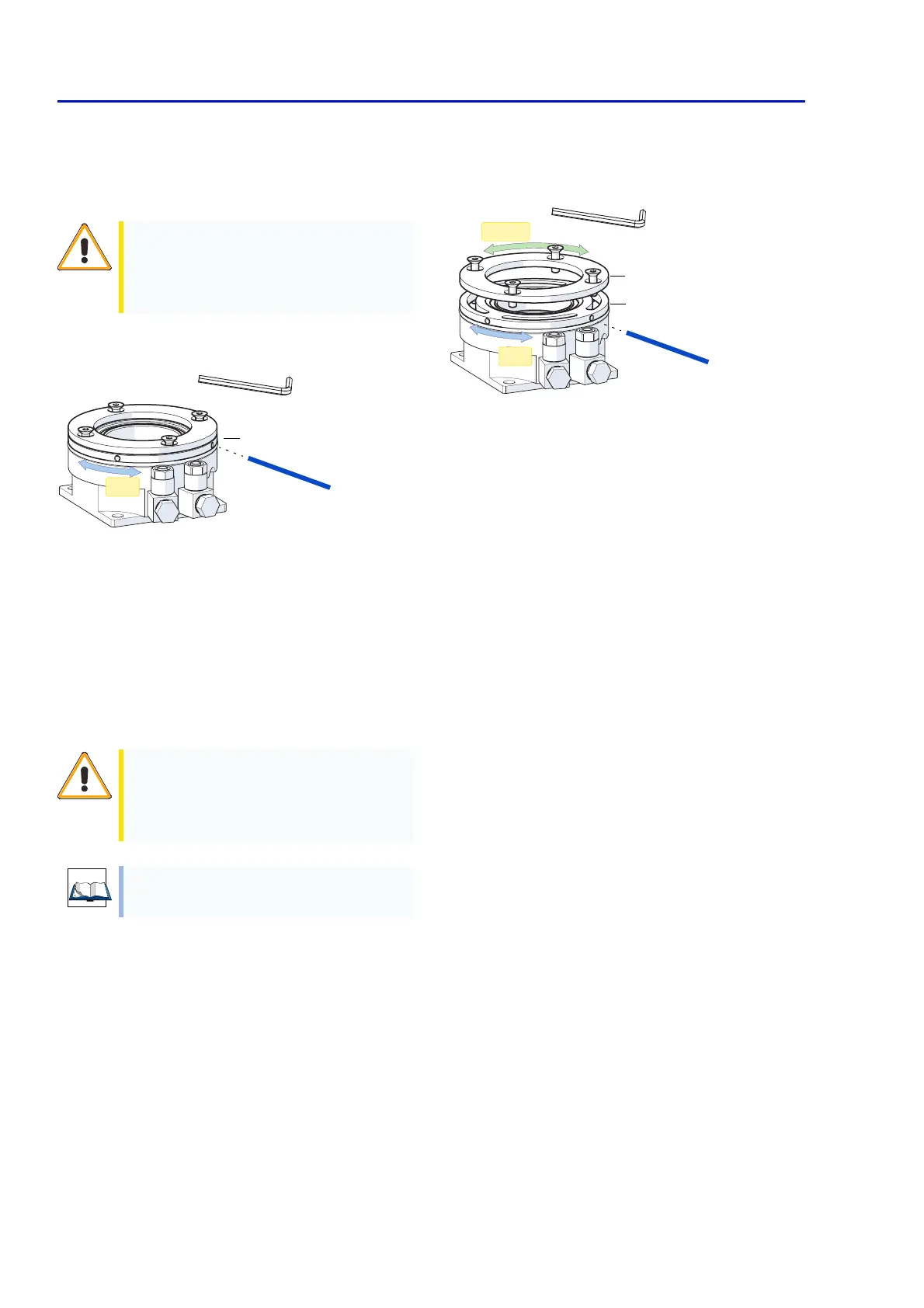

Use an Allen key
(size 2)
and loosen the screws
(4x)
.
Then use a pin
(ø2 mm)
and turn the mounting ring
until the fibre socket is positioned correctly.
When adjustment is complete, tighten the screws
again.
253-1406-01
Mounting ring
ø2 mm
Size 2
±30°
Use an Allen key
(size 2)
and remove the screws
(4x)
.
Then turn the cover
(8 x 45°)
and screw in the screws
(do not tighten).
Use a pin
(ø2 mm)
and turn the mounting ring until
the fibre socket is positioned correctly.
When adjustment is complete, tighten the screws
again.
Mounting ring
253-1406-02
Cover
Size 2
ø2 mm
±30°
8 x 45°
