5.17 Ellipitical Fitness Crosstrainer
Page 2
Section One - Things You Should Know
System Information
The 5.17 disables lift (ramp) operation and changes in resistance levels when the unit is not in
use. In order for ramp and resistance levels to be selectable the unit must be in use, that is, the
system must be receiving a normal pulse from the reed switch speed sensor.
The 5.17 EFX operates from a 12 Vdc source. An AC to DC power adapter is provided with the
EFX. See Diagram 1.1.

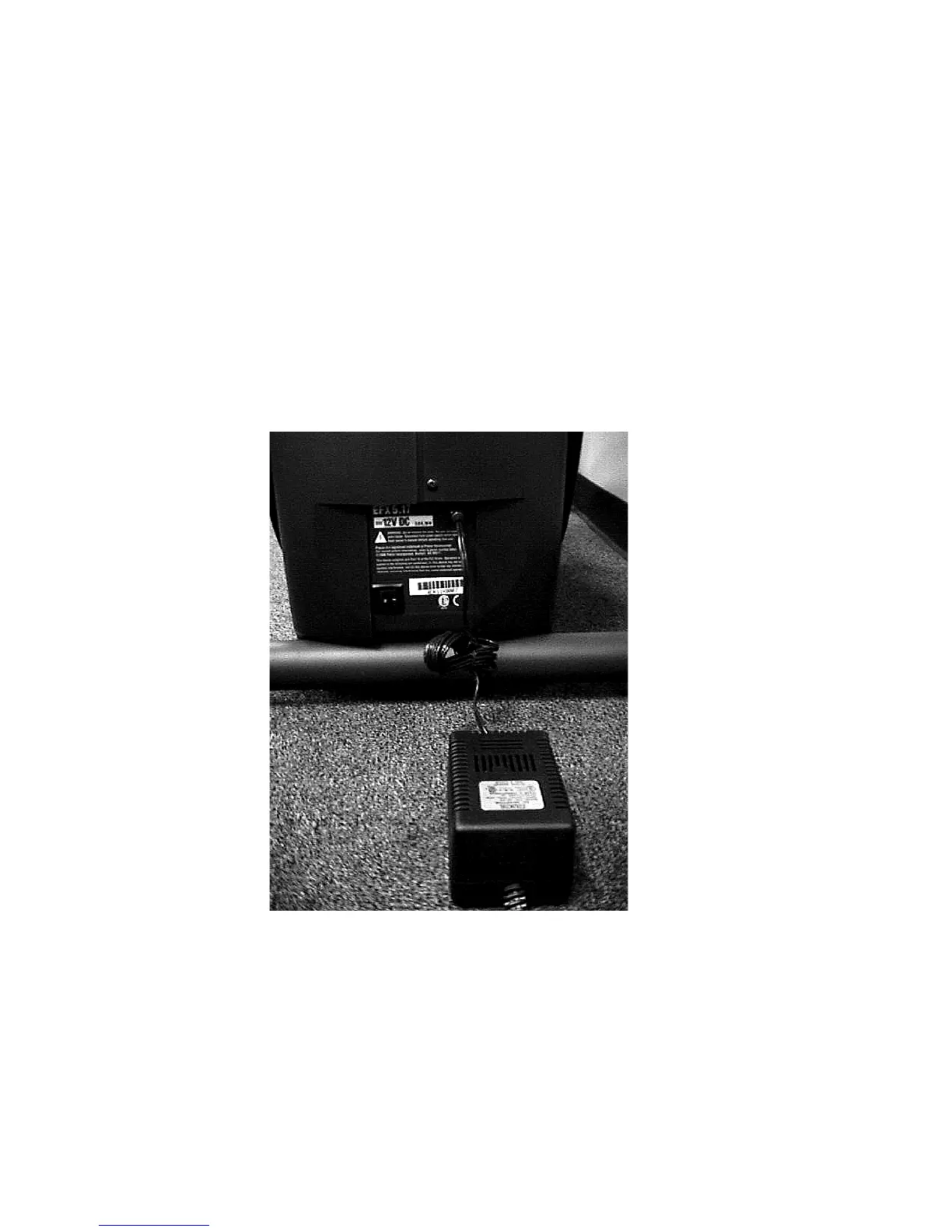

Diagram 1.1 - Power Adapter
Right, Left, Front, and Back Conventions
In this manual, right, left, front, and back are from the perspective of a user standing on the EFX
5.17, facing the display enclosure.
Warning and Caution Statements and General Safety Guidelines
Warning statements indicate a particularly dangerous activity. Warning statements you will find in
To Next Page
