COMMERCIAL PRODUCTS DIVISION
b. Route the display cable through the right upright support. Ask an assistant to
hold the upright support close to the right side mounting bracket. Route the
cable through the upright support (see Diagram 9, #1) and pull it out of the
large hole on the side of the support near its base. Diagram 9, #2.
Note: If you encounter difficulties with the cable, try tying a string to the
end of the cable. Attach a washer to the opposite end for weight and route
it through the upright support.
c. Ask your assistant to position the right upright support inside the base mount-
ing bracket and align the mounting holes as you pull the cable through the
mounting bracket hole in the base frame. See Diagram 9, #3.
d. Plug the cable connector into its receptacle on the lower board near the mo-
tor. See Diagram 10. A definite “click” is heard when the cable is properly
attached. If you do not hear and feel the connector snap into place, reinsert it.

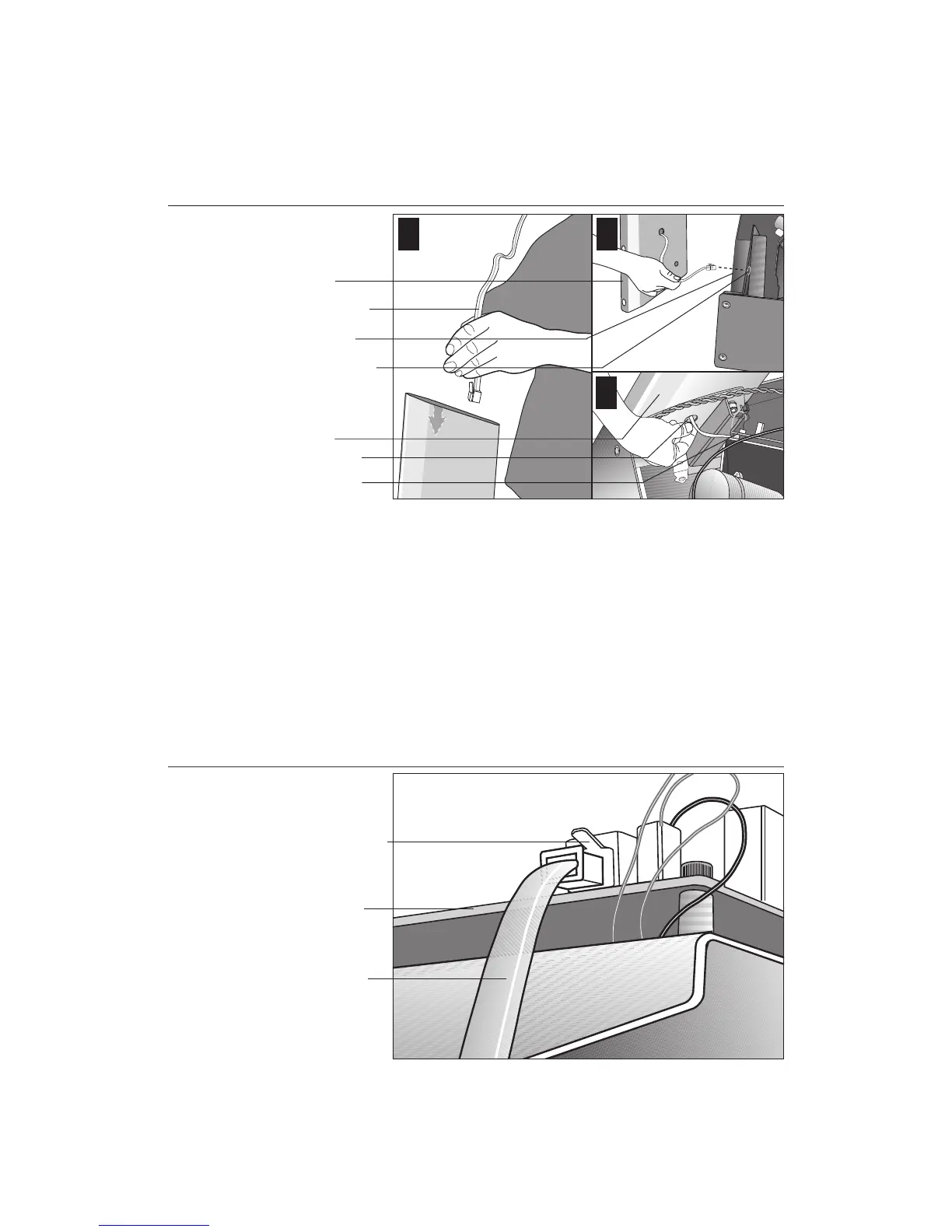

Diagram 9 Route the cable.
Bracket hole
Base mounting
bracket
Display cable
Right upright
support
1
2
3
Right upright
support
Diagram 10 Connect the
cable.
Lower board
Cable connector
Display cable
Lower board
Base frame
