CAUTION: To avoid damage to the display cable, read the following steps
carefully. Damage to the cable due to improper assembly is not covered
by the Precor limited warranty.
6. Secure the display console to the left upright support. Diagram 7.
Remove any tape or wire ties that secure the display cable. Unwrap the cable
to remove kinks. Ask an assistant to hold the display console in place while
you attach it to the left upright support using two buttonhead screws (A) with
washer (B). Finger tighten.

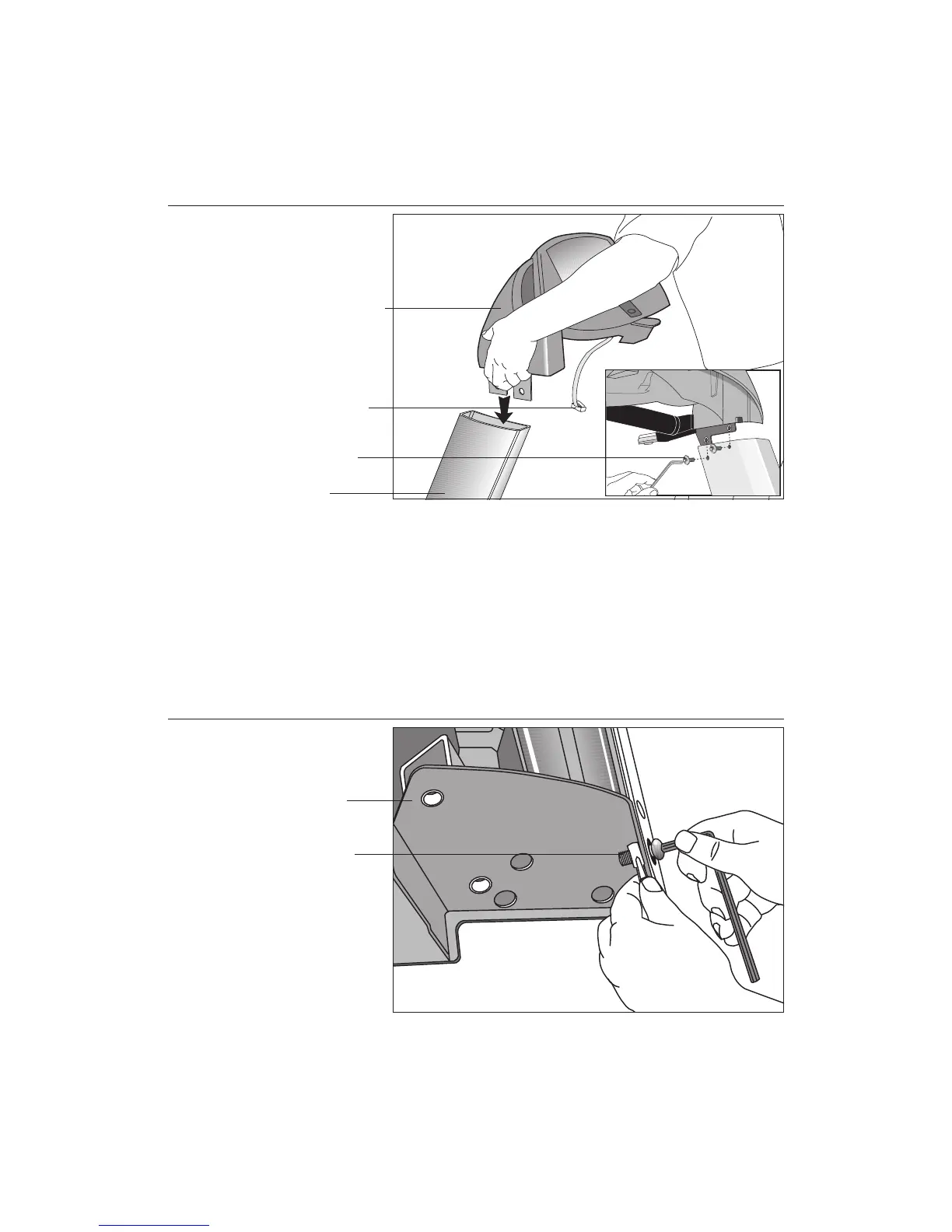

Diagram 7 Attach the
display console
to the left upright
support.
Left side upright
support
Screws (A) with
washers (B)
Display cable
Display console
Diagram 8 Remove right
side front panel
screws.
Front panel
fasteners
Right side
mounting bracket
7. Prepare to attach the right side upright. Diagram 8. Take the following steps:
a. Remove the shipping fasteners from the right front panel. Follow the same
process as in step 5a. With the supplied hex key and a ¹⁄₂-inch box end wrench,
loosen and remove the two bolts and nuts on the right side of the front panel.
