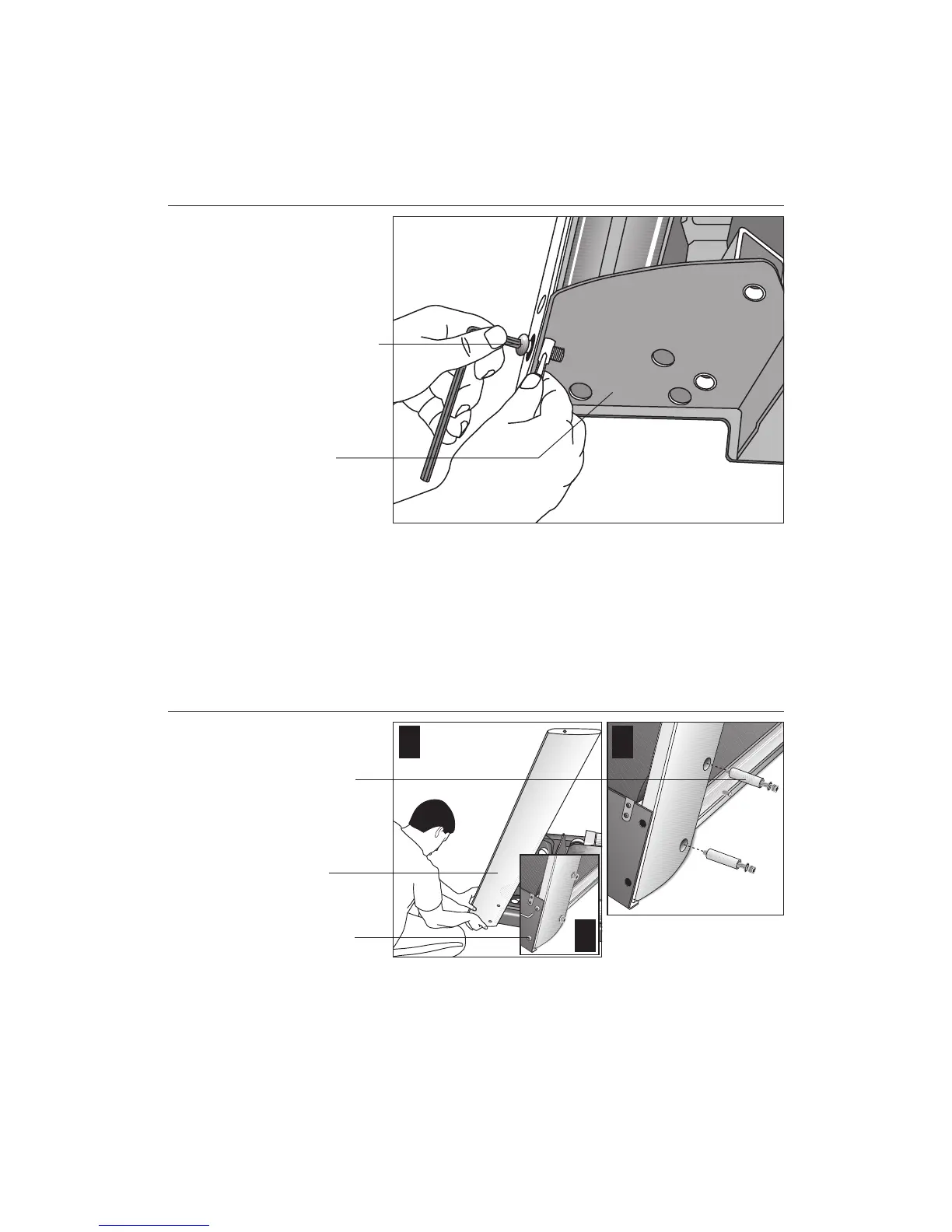

5. Attach the left side upright support. Diagram 5. Take the following steps.
a. Remove the shipping fasteners from the front panel. With the supplied hex
key and a ½-inch box end wrench, loosen and remove the two bolts and
nuts on the left side of the front panel. These fasteners hold the front panel
in place during shipping. (The front panel will drop slightly when you re-
move the fasteners.) Discard the nuts, but keep the bolts.
Diagram 5
Remove the
shipping
fasteners from
the left side front
panel.
Shipping
fasteners found
on left and right
sides of the front
panel.
Diagram 6
Secure the left
upright support.
Screws (D),
washers (E),
and barrel
spacers (F)
b. Attach the left upright support by placing it inside the base mount and aligning
the mounting holes. Obtain two long sockethead screws (D), washers (E) and
barrel spacers (F) from the Hardware kit. Place a washer and barrel sleeve on
each screw and insert the fasteners through the side of the upright support
and into the base mounts. Use the ¼-inch hex key to secure the screws, but
leave room for adjustments. See Diagram 6, #1 and #2.
c. Remove two stainless steel washers (B) from the Hardware kit and place
a washer on each of the two shipping fasteners. Reinsert the two shipping
fasteners removed in step 5a, and finger tighten. See Diagram 6, #3.
1 2
Left upright
support
Left side
mounting bracket
3
Shipping
fasteners with
washers (B)
