EFX Safety Features
11
Using the Locking Pin
Your EFX is equipped with a pin and lanyard to lock its
pedals (and arms, if it has moving arms) in place. To
lock the EFX, insert the pin securely into one of the
holes just behind the rollers.
Important: The locking, spring-loaded ball near the end of
the pin must pass through both sides of the arm. You
should be able to feel it when it clicks into place.
The following figure shows how the pin looks when it is
properly seated.

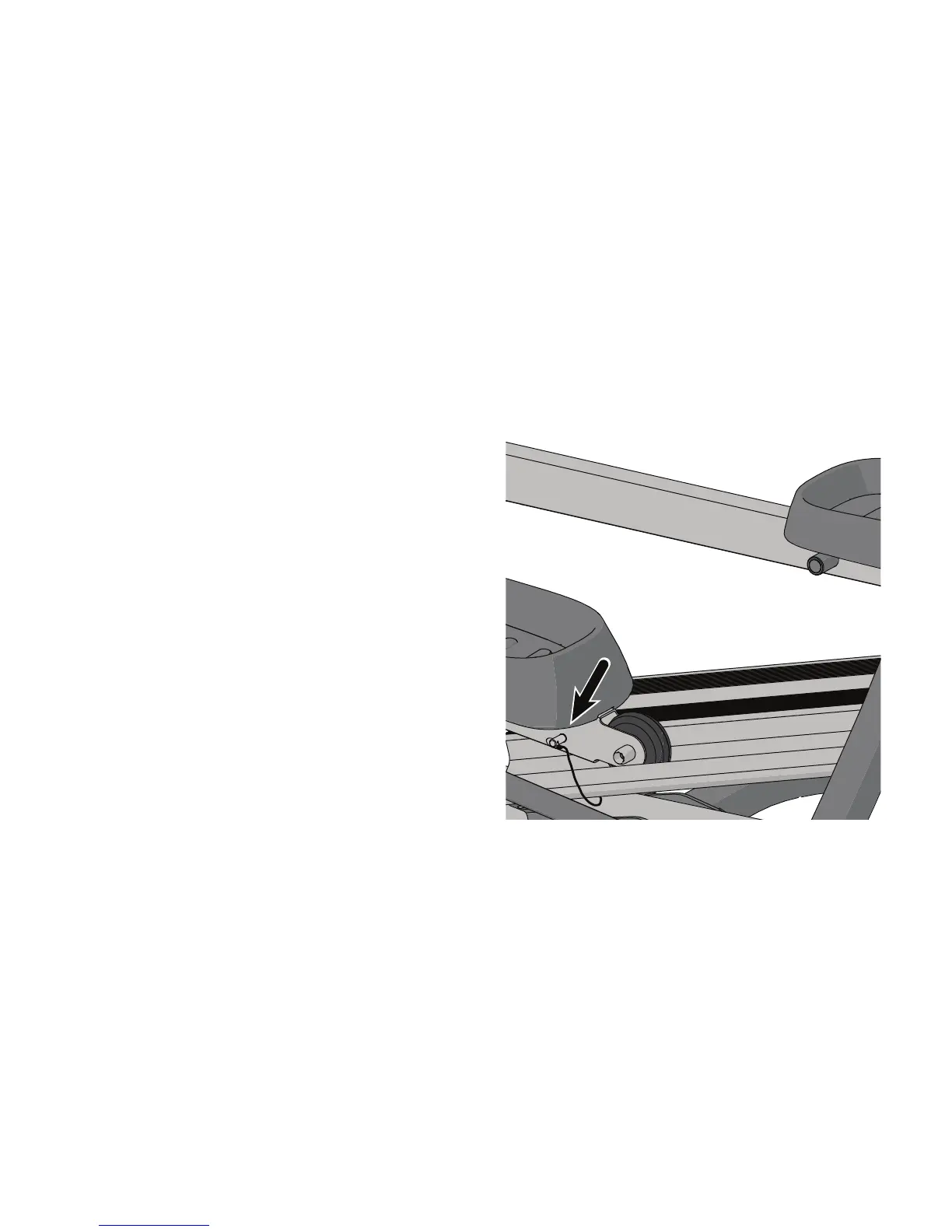

Figure 4: Locking pin in use
