Precor EFX 576i User Manual

2.
Upright Cycle: Adjusting the Seat Tilt
To adjust the seat tilt on an upright cycle, take the following steps.
1. Use a ¹¹⁄₁₆-inch (17 mm) box-end wrench or crescent wrench to
loosen the nut beneath the seat as shown in the following figure.

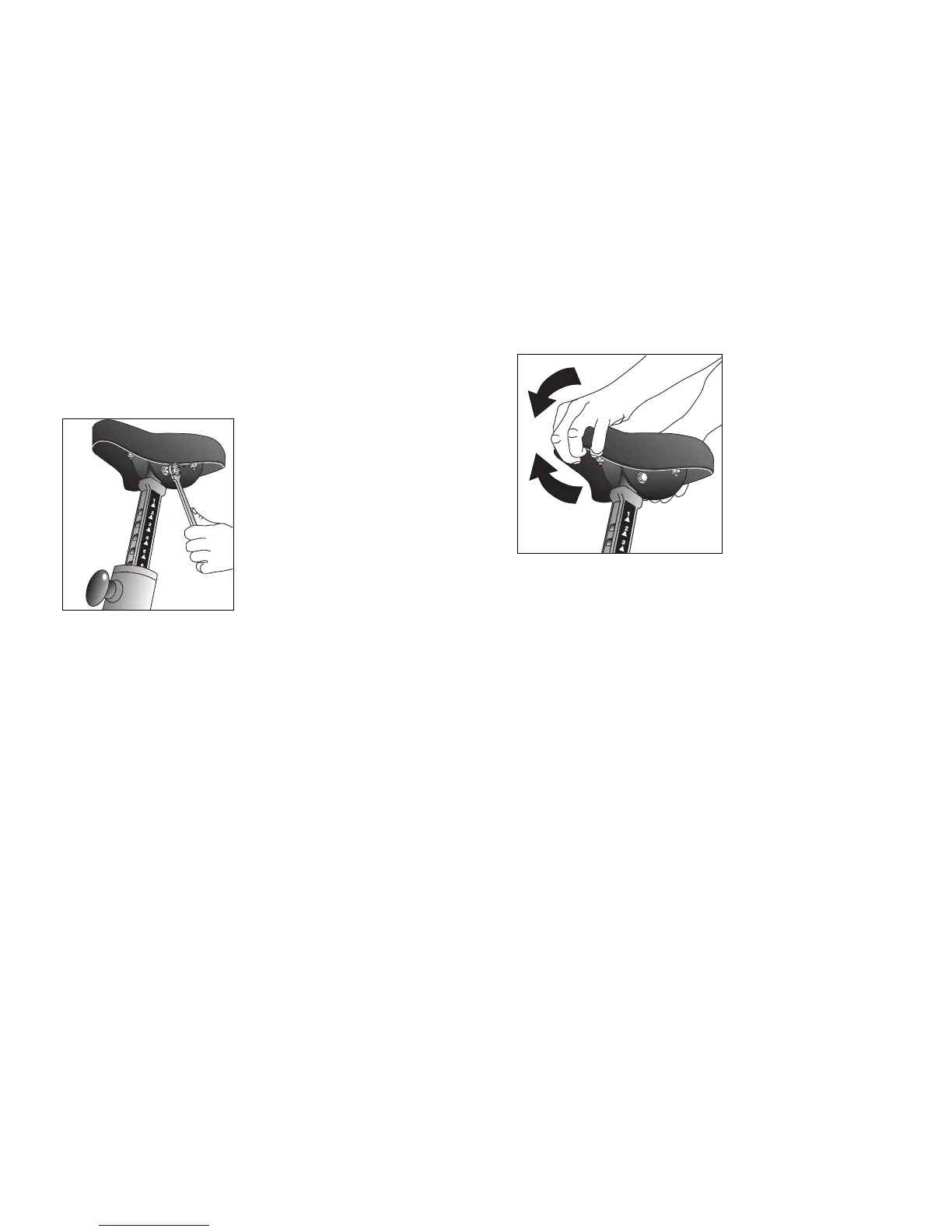

Figure 5: Loosen nut to adjust seat tilt
Adjust the seat tilt (forward or backward) as shown in the
following figure.
Figure 6: Tilt the seat forward or backward
3.
4.
Wrench tighten the nut
Apply pressure to the seat and make sure that it does not move.
Readjust and retighten the nut, if needed.
Product Owner's Manual: Maintenance 37

Precor EFX 576i Specifications

General

Resistance Levels	20
Display Type	LED
Maximum User Weight	350 lbs
Power	Self-powered
Programs	12
Heart Rate Monitoring	Contact and wireless
