EFX 885, 835, 825
Service Manual 20039-166
Page 164
©2011 Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law

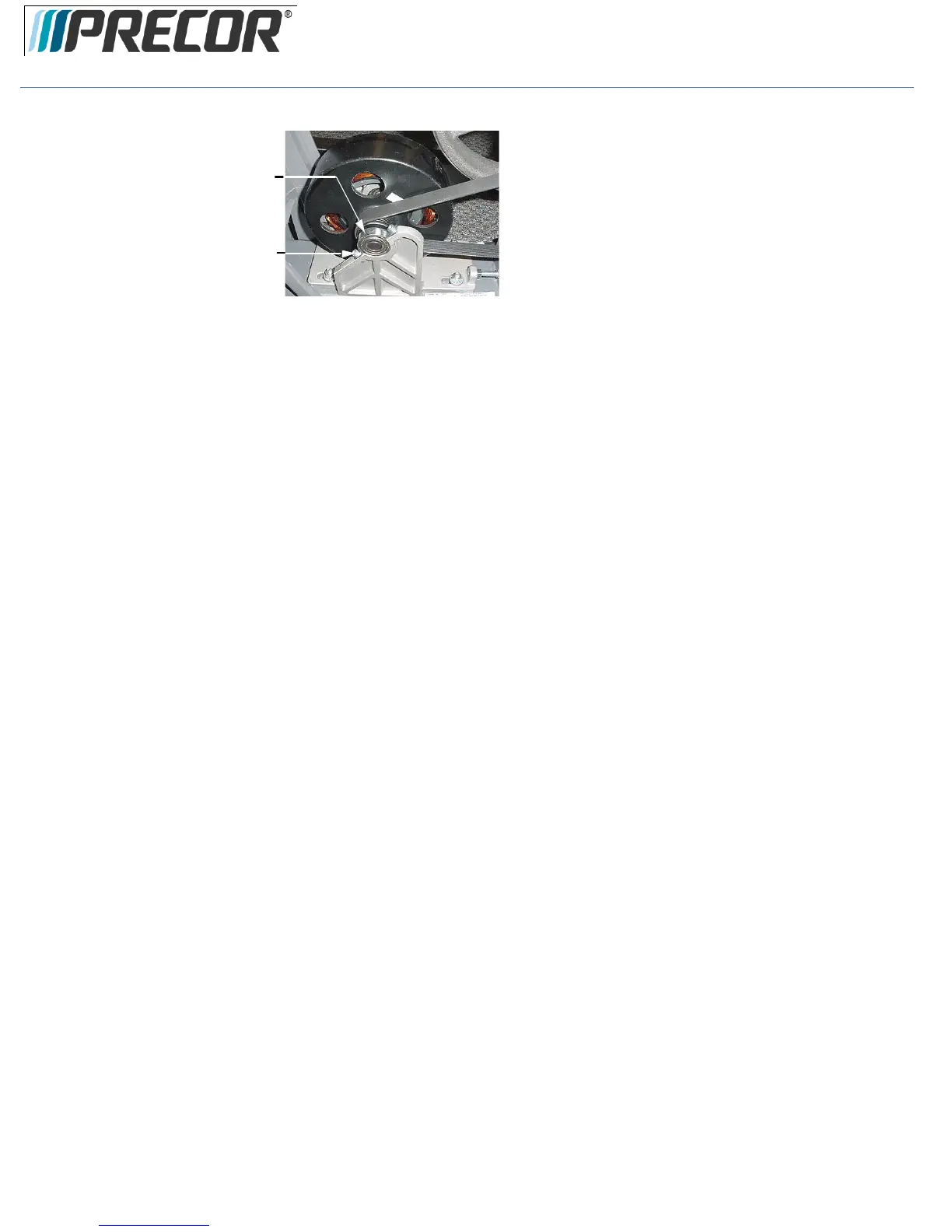

Diagram 10.17.2 - Generator Bearing Clamp
10. Replace and tighten the three generator mounting screws removed in step 9. Set the bearing clamp in its
mounting position, replace and tighten the two bearing clamp mounting screws removed in step 9.
11. Hand start, but do not tighten the four mounting nuts removed in step 6. The generator must be able to
move in order to adjust the belt tension.
12. Adjust the generator drive belt tension per Procedure 8.2.
13. Reconnect the red battery lead removed in step 1 and replace the rear cover.
14. Check the operation of the EFX as described in Section Seven.
Bearing Clamp
Bearing Clamp
Mounting Screw
