12. Disconnect the Metric cable (J1) from the Metric PCA board. See Diagram 5.6.8.
13. Remove the four screws that fasten the Metric PCA board to the console and remove the Metric PCA and the
four spacers.

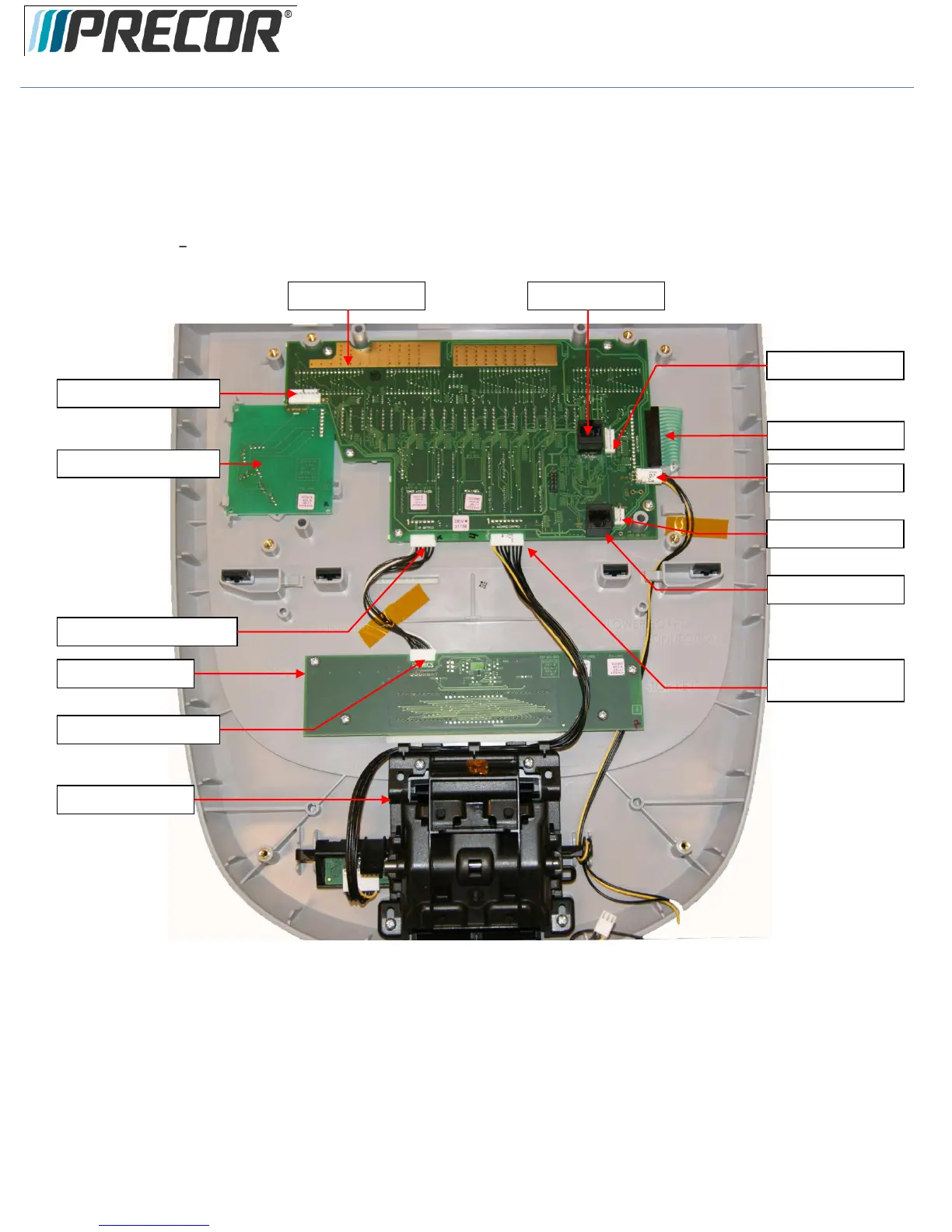

Diagram 5.6.8 P30 Upper PCA & Metric Board
Upper PCA Board
Stop Key (J8)
HR Board (J10)
Option Cap (J6)
Auto Stop (J12)
CSAFE Port (J7)
Data Port (J13)
Metric Board
Keypad Metric (J9)
Machine Controls
Metric Connector (J5)
Machine Controls
Connector (J4)
Metric Connector (J1)
Total Body PCA

Precor EFX 885 Specifications

General

Resistance Levels	20
Drive System	Rear Drive
Power Requirements	Powered
Heart Rate Monitoring	Touch and telemetry
Console	Touchscreen
CrossRamp Technology	Adjustable
Weight Capacity	350 lbs
