CAUTION: Turn OFF the treadmill and wit for the belt to stop
when adjusting or working near the rear roller. Be very careful
to keep your fingers or any loose object clear of the belt and
rollers. The treadmill wll not stop immeadiately if an object
becomes caught in the belt or rollers.

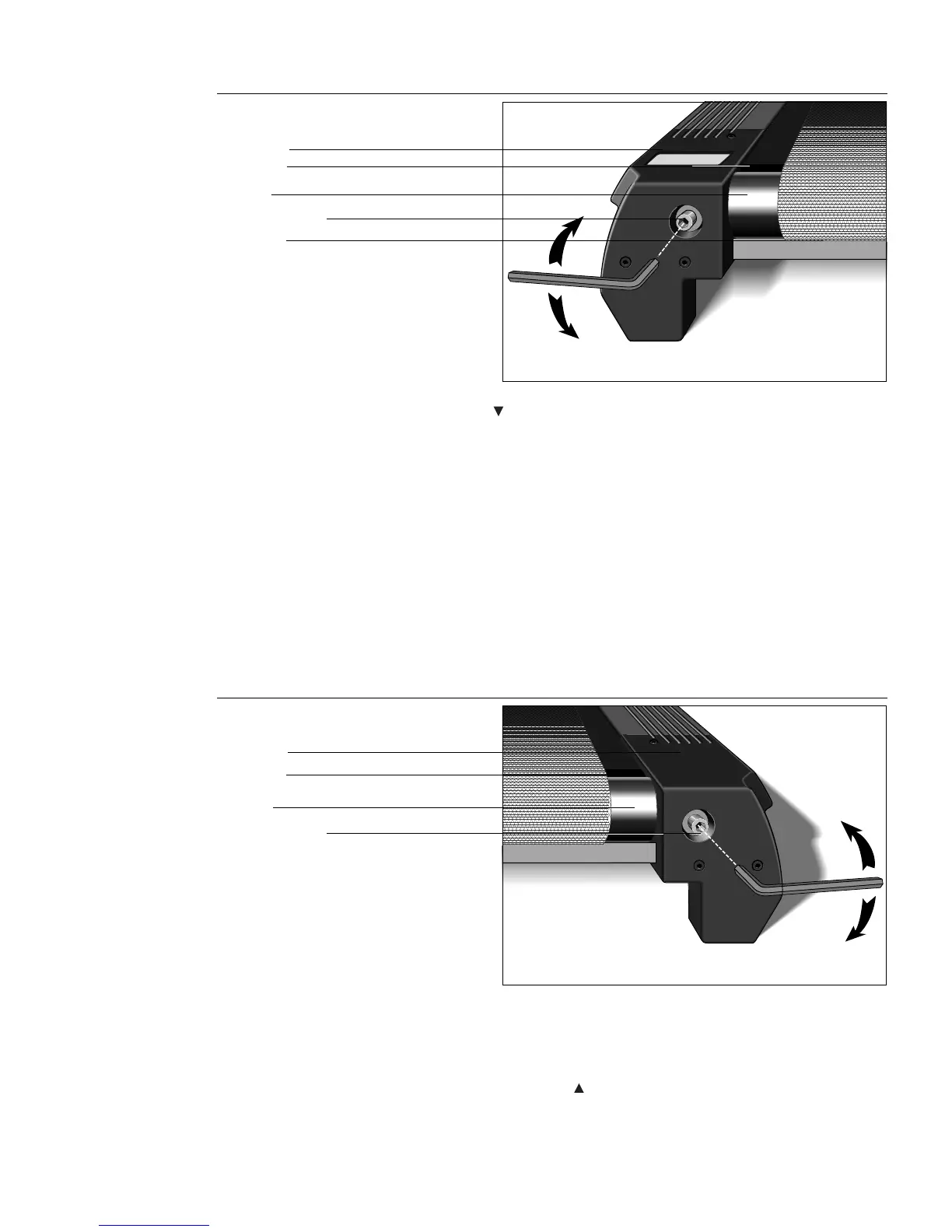

Diagram 15
Aligning the running belt
Rear roller
Belt adjustment bolt
5. Press STOP or SPEED
until the running belt comes to a complete stop.
6. If the belt needs additional alignment, repeat steps 1 through 5 of this procedure until the belt
is properly aligned.
Adjusting the Tension of the Belt
Proper belt tension is important for a smooth, steady run. If your physical condition permits, test
the belt tension by jogging at 6 mph. If the belt tension is too loose, you will feel a pause in the belt
with each footplant (step).
To adjust the running belt tension, take the following steps:
1. Make sure that the treadmill is OFF. If the treadmill is ON, switch it to OFF. Wait for the
running belt to come to a complete stop.
Diagram 16
Adjusting the tension
of the running belt
2. Standing behind the treadmill, use the rear belt adjustment bolts (each one at opposite sides
of the rear roller). See Diagrams 15 and 16. Simply turn each bolt
clockwise
1/4 turn to
adjust the tension of the belt.
3. Turn ON the treadmill, answer the start-up prompts, then increase the speed of the running
belt to 6 mph by pressing the SPEED key.
4. Jog on the running belt for 1 minute or more. If you feel a pause in the belt with each
footplant (step), you need to continue to adjust the belt tension.
Running belt
Side platform
Running bed
Side platform
Running bed
Rear roller
Belt adjustment bolt
To Next Page
