Assembling the Treadmill 21
3. Secure the right-hand upright support to the side bracket
using four socket head screws, four black washers, and
two locknuts. Partially tighten the fasteners.

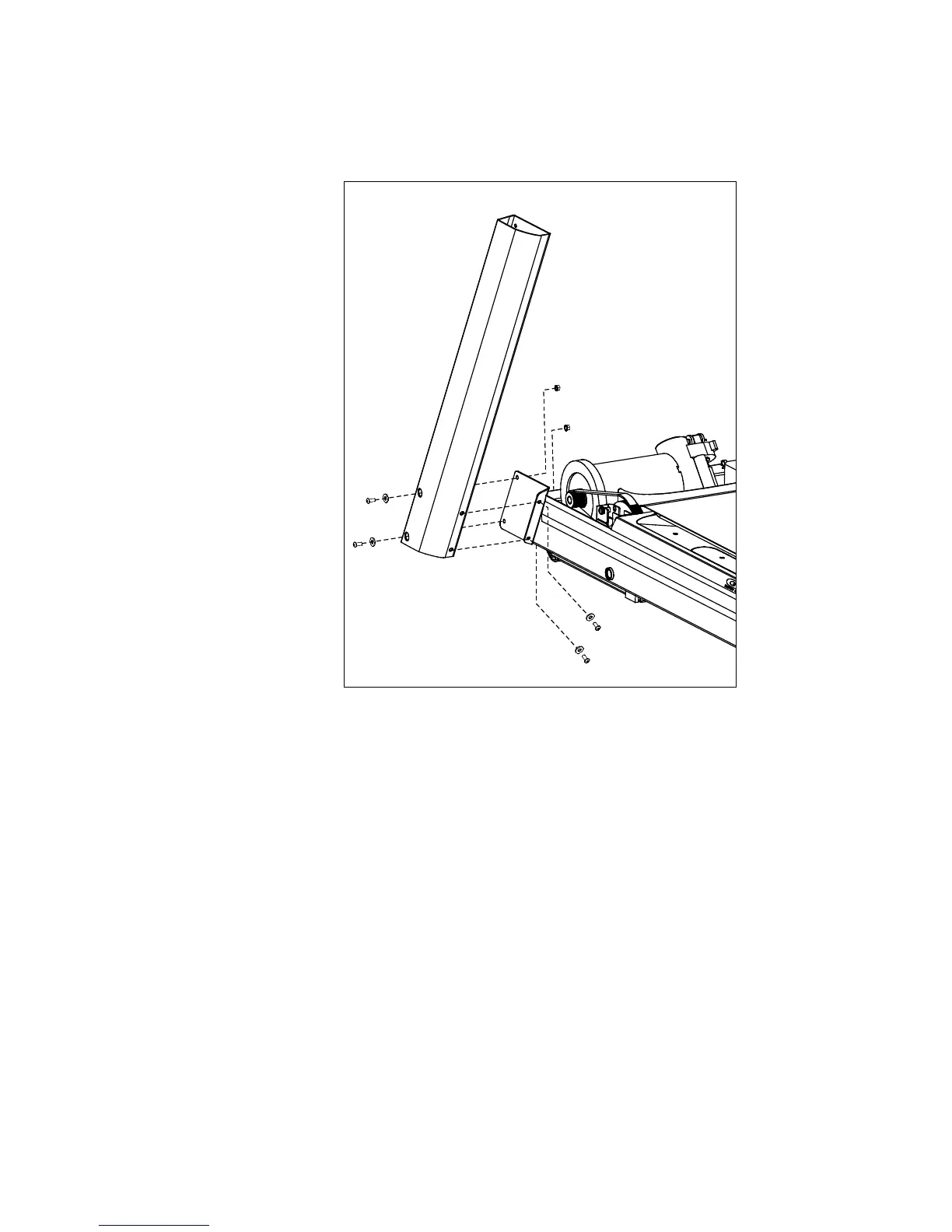

Figure 7: Upright support attachment, right side
4. Using the fabric connectors provided, attach the power
supply to the right-hand side of the front crossmember on
the treadmill base. (The gray rectangle in the following
illustration shows where you should mount the power
supply.)
5. Route the DC output cable of the power supply through
the clips between the power supply and the belt motor.
Pass the end of the cable under the mounting bracket for
the lift motor.
6. Connect the black three-conductor plug on the AC wiring
harness to the socket on the power supply.
