Installing the Console 33
4. Tilt the console forward until it stops. Use one hand to
steady the console in this position, or ask your assistant
to do so.
5. Using a #2 Phillips screwdriver, remove the two #8-32 x
¹₂” pan-head machine screws securing the upper back
cover of the fairing, as shown in the previous figure. Set
the cover and the screws aside.
Connecting Cables (P80)
After the console has been seated, separate the individual
cables out of the end of the cable assembly and attach them
to the appropriate circuit connectors inside the console. Refer
to the following diagram and table to identify the cables and
connectors.

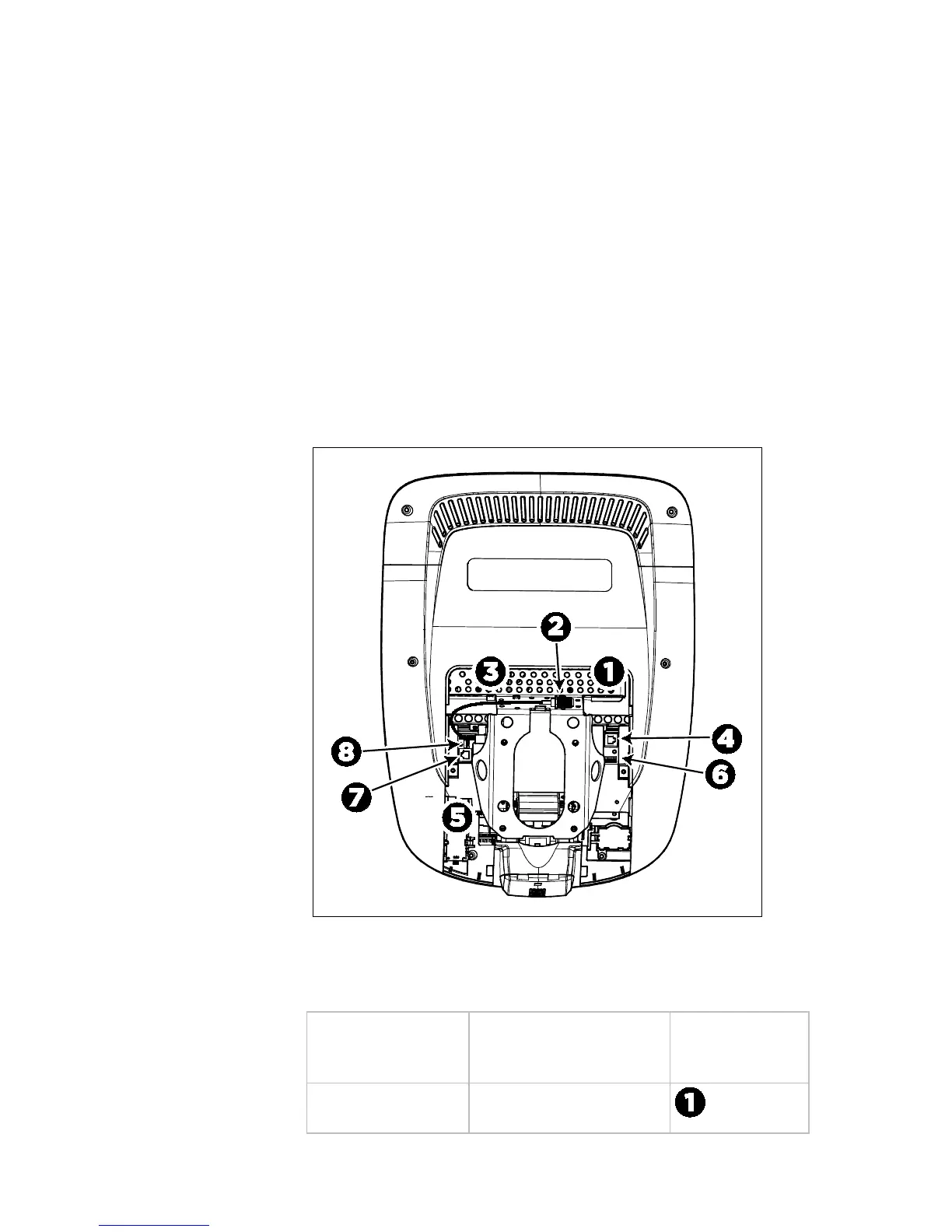

Figure 19: Cable connections, P80 console
Table 2. P80 internal cable connections
Cable Connector Type Circuit
Connector
Location
Ethernet (LAN) Eight-contact modular, on
round black cable
