3. Loosen the two bolts on the rear roller adjustment cassettes. It is recommended that the bolts
be loosened fairly evenly to prevent binding.

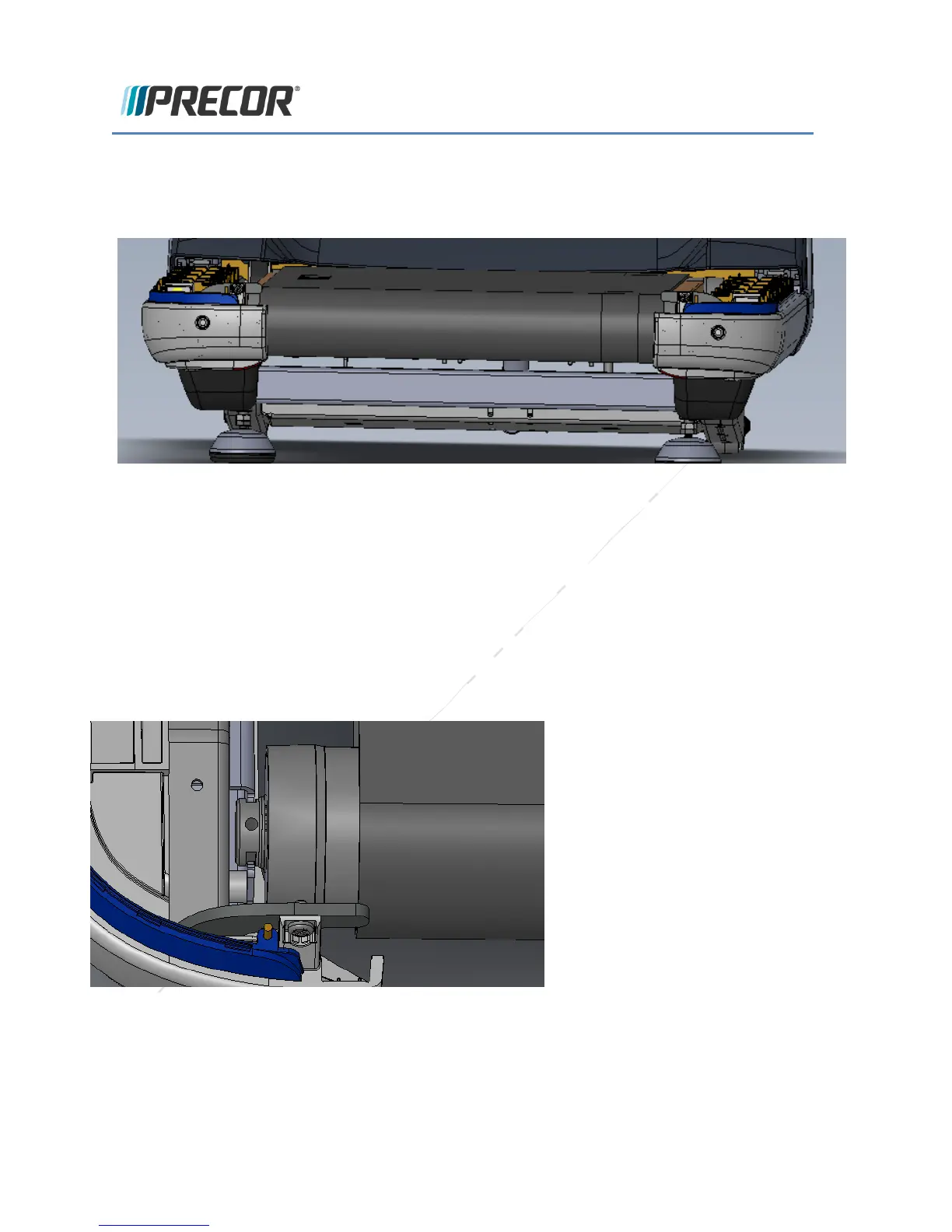

Figure 28: Take Up Roller Adjustment Bolts
4. Lift the roller out of the cassettes.
5. Install the new roller, ensuring the slotted end of the shaft is on the left side and seated into the
tabs of the cassette.
6. Tension the belt per procedure Replacing the Running Belt.
7. Check treadmill operation per, Checking Treadmill Operation.
Figure 29: Take Up Roller slotted shaft installation
Drive Belt and Roller Replacement
1. Remove the hood,
