ITEM 61169
SAFETY OPERATION MAINTENANCESETUP

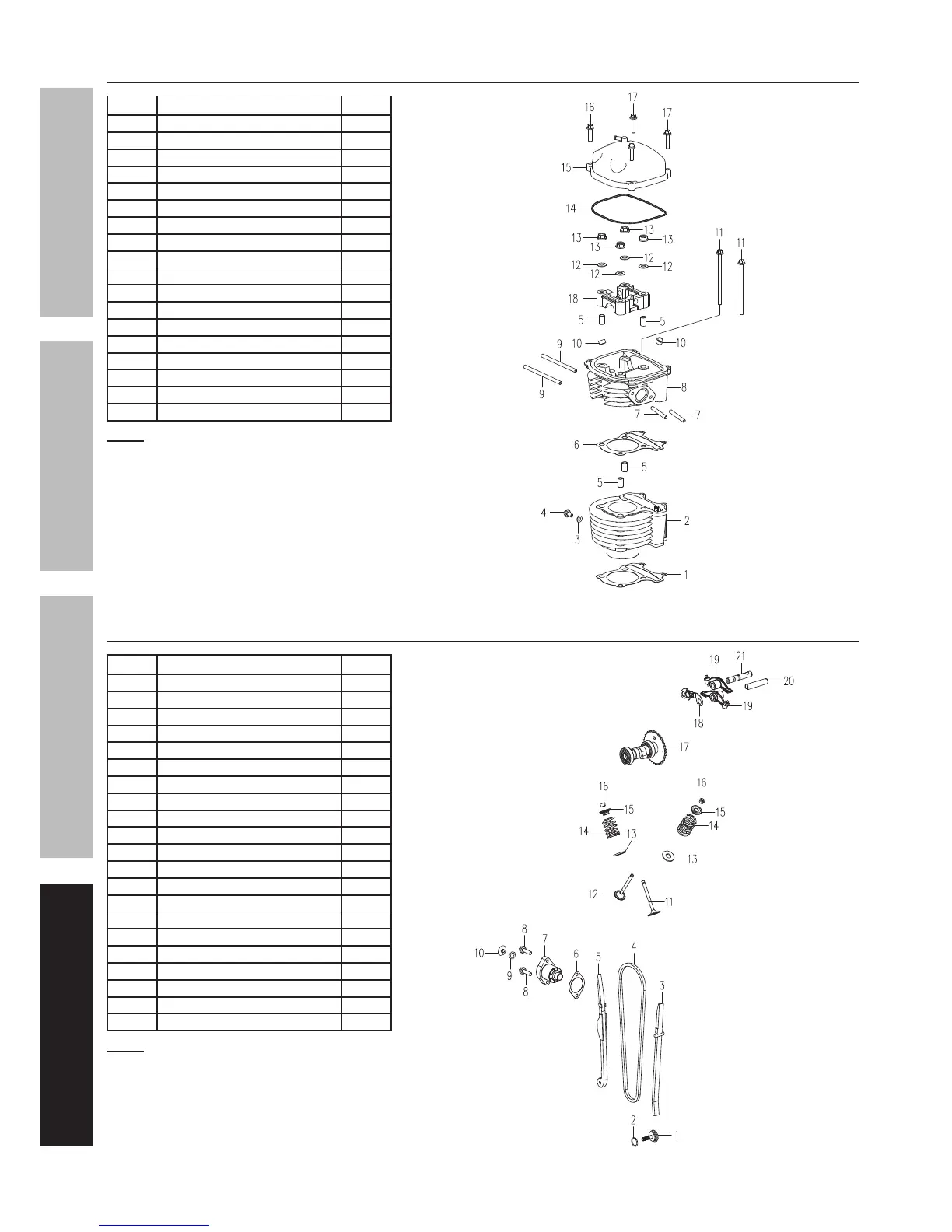

Parts List and Diagram C - Cylinder Head
Part Description Qty
1c Cylinder Base Gasket 1
2c Cylinder 1
3c Plate Washer 6 1
4c Flange Bolt M6×12 1
5c Dowel Pin 10×15.7 4
6c Cylinder Head Gasket 1
7c Bolt M6×32 2
8c Cylinder Head Asm. 1
9c Bolt M6×118 2
10c Valve 1
11c Flange Bolt M6×100 1
12c Copper Plate Washer 8 4
13c Nut M8 4
14c Valve Cover Seal 1
15c Valve Cover 1
16c Flange Bolt M6×25 2
17c Flange Bolt M6×36 2
18c Cam Journal 1
Note: When ordering parts from
this diagram add a -c suffix.
Parts List and Diagram D - Camshaft
Part Description Qty
1d Screw, Pan Head 1
2d Oil Seal 15.2×1.5 1
3d Chain Guide 1
4d Chain 6.35×90 1
5d Tension Bar 1
6d Gasket 1
7d Camshaft Chain Regulator 1
8d Flange Bolt M6×22 2
9d Oil Ring 9×1.9 1
10d Pin 1
11d Exhaust Valve 1
12d Intake Valve 1
13d Valve Spring Seat 2
14d Valve Spring 2
15d Oil Seal For Valve 2
16d Valve 2
17d Camshaft Asm. 1
18d Check Plate 1
19d Valve Rocker 2
20d Intake Valve Spring Rocker 1
21d Intake Valve Rocker Shaft 1
Note: When ordering parts from
this diagram add a -d suffix.
