Predator 61169 - Parts Lists and Diagrams; Engine Component Diagrams

Page 19For generator technical questions, please call 1-800-444-3353.
For engine technical questions, please call 1-800-520-0882.
ITEM 61169
SAFETYOPERATIONMAINTENANCE SETUP
Parts Lists and Diagrams

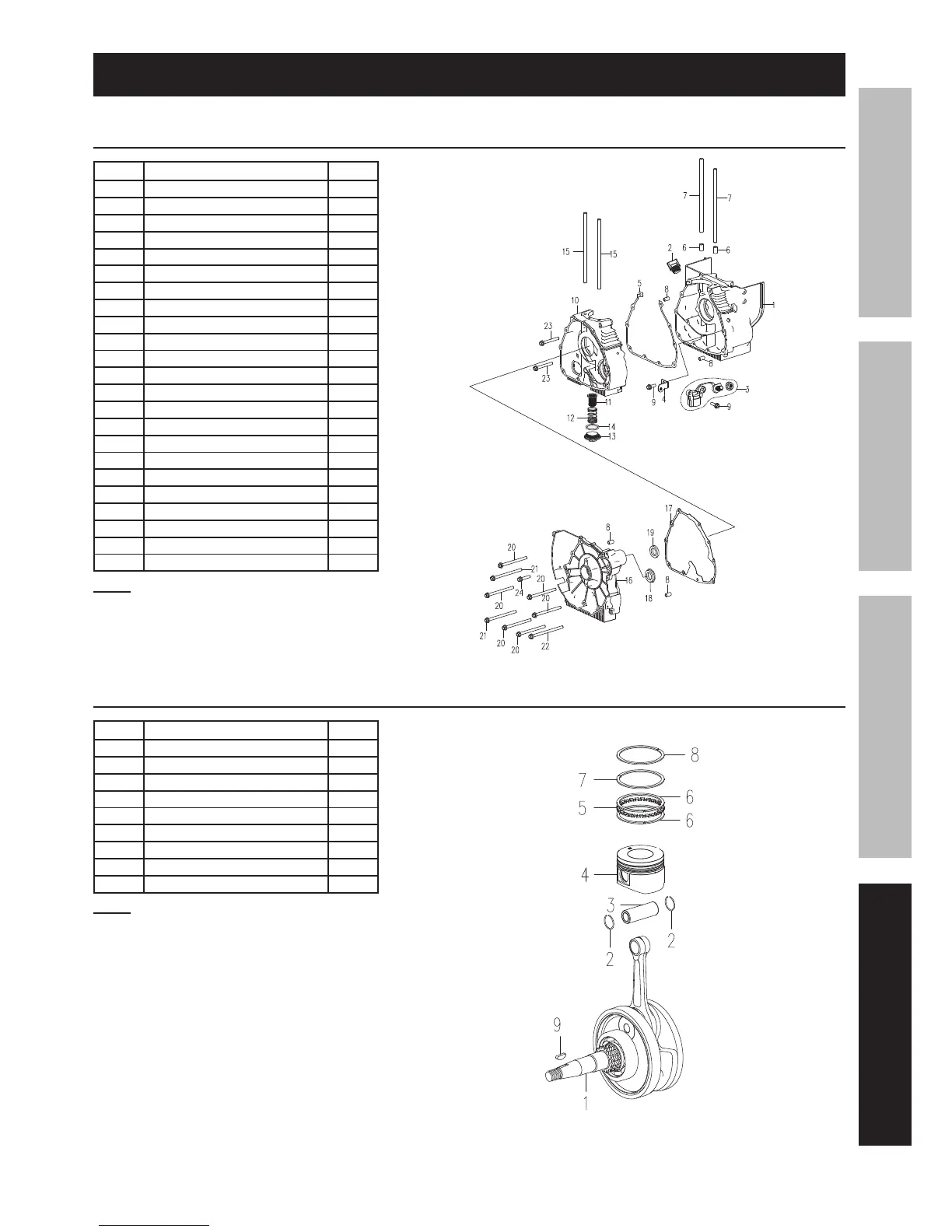

Parts List and Diagram A - Crankcase
Part Description Qty
1a Left Crankcase Asm. 1
2a Oil Cork 1
3a Oil Sensor 1
4a Stand of Oil Sensor 1
5a Paper Washer 1
6a Dowel Pin 10×15.7 2
7a Stud 2
8a Dowel Axis 4
9a Bolt M6×17 2
10a Right Crankcase Asm. 1
11a Fuel Filter Asm. 1
12a Spring 1
13a Cap 1
14a O-Ring 1
15a Stud 2
16a Right Cover 1
17a Right Crankcase Gasket 1
18a Drain Plug 1
19a Oil Seal 19.8X30x5 1
20a Bolt M6×80 6
21a Bolt M6×90 2
22a Bolt M6×100 1
23a Bolt M6×50 2
Note: When ordering parts from this
diagram add an -a suffix.
Parts List and Diagram B - Piston
Part Description Qty
1b Crankshaft Asm. 1
2b Piston Pin Clip 2
3b Piston Pin 1
4b Piston 1
5b Piston Spacer Ring 1
6b Spacer Rails 2
7b Second Piston Ring 1
8b Top Piston Ring 1
9b Semicircle Key 1
Note: When ordering parts from
this diagram add a -b suffix.
