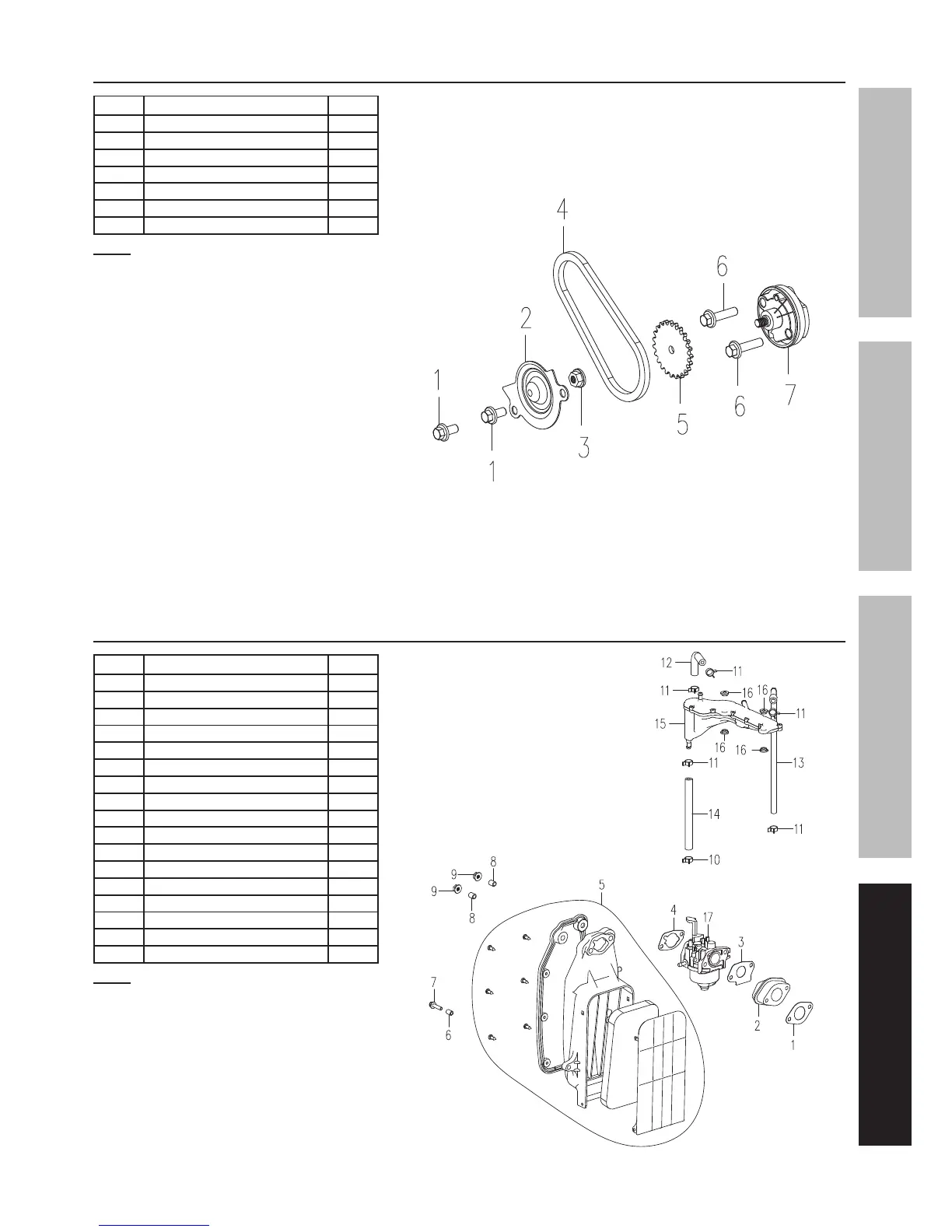

Parts List and Diagram E - Oil Pump
Part Description Qty
1e Bolt M6×12 2
2e Oil Pump Gear Cap 1
3e Nut M6 1
4e Chain 6.35×44 1
5e Gear 1
6e Bolt 2
7e Oil Pump Asm. 1
Note: When ordering parts from this
diagram add an -e suffix.
Parts List and Diagram F - Air Cleaner and Carburetor
Part Description Qty
1f Carburetor Gasket A 1
2f Carburetor Asm. 1
3f Carburetor Gasket B 1
4f Air Cleaner Gasket 1
5f Air Cleaner Asm. 1
6f Fan Volute Bushing 1
7f Bolt M5×20 1
8f Air Cleaner Bushing 2
9f Nut M6 2
10f Clip Ø11 1
11f Clip Ø10 5
12f Rubber Tube 1
13f Rubber Tube 1
14f Rubber Tube 1
15f Oil Separator Asm. 1
16f Spacer 4
17f Carburetor Asm. 1
Note: When ordering parts from
this diagram add a -f suffix.
