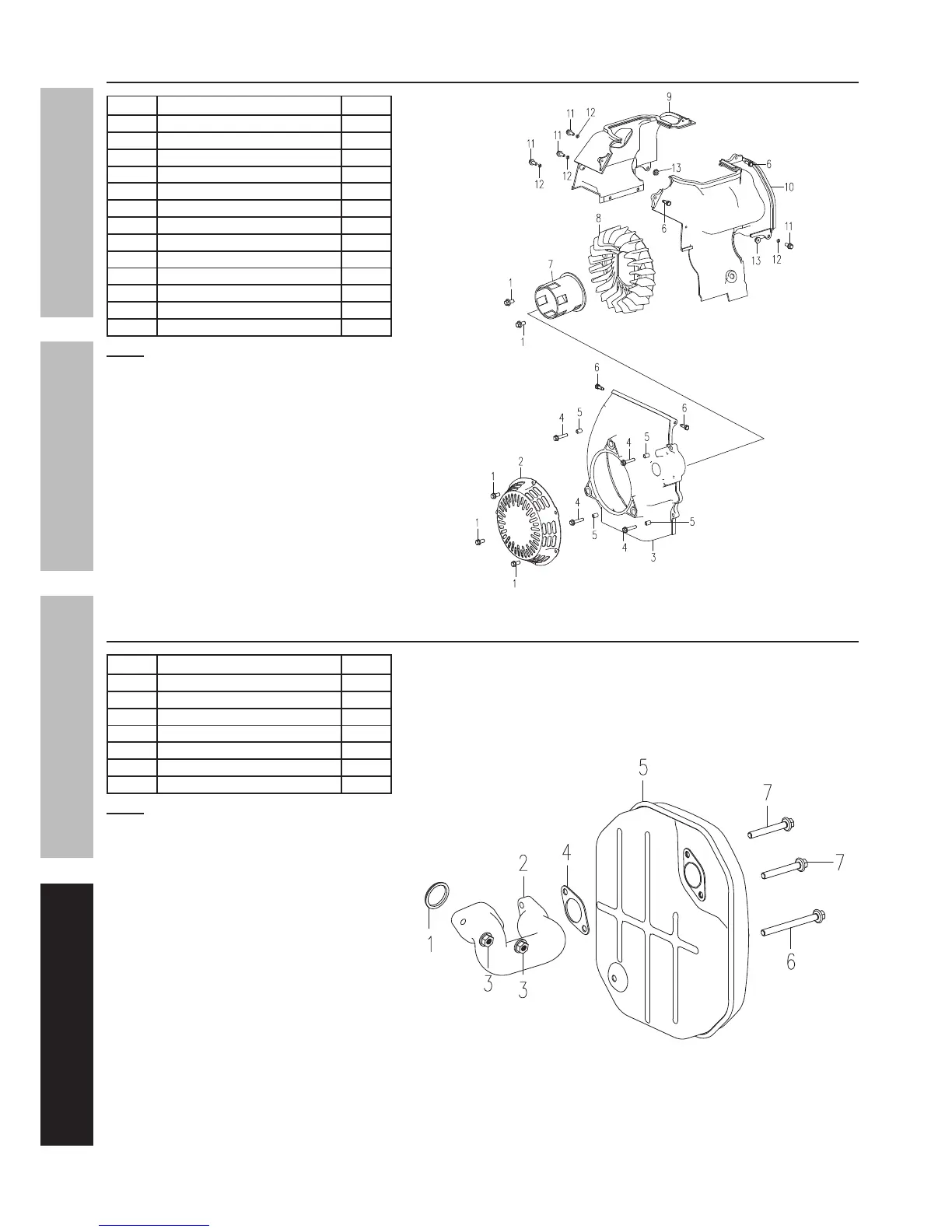

Parts List and Diagram G - Recoil Starter
Part Description Qty
1g Bolt M6×12 5
2g Recoil Starter 1
3g Fan Cover 1
4g Bolt M5×20 4
5g Fan Cover Bushing 4
6g Screw ST4.8×16-F.H 4
7g Recoil Cage 1
8g Cooling Fan 1
9g Shroud B 1
10g Shroud 1
11g Bolt M5×12 4
12g Shroud Bushing 4
13g Nut M5 2
Note: When ordering parts from
this diagram add a -g suffix.
Parts List and Diagram H - Muffler
Part Description Qty
1h Gasket 1
2h Elbow 1
3h Nut M6 2
4h Gasket 1
5h Muffler Asm. 1
6h Bolt M6×80 1
7h Bolt M6×50 2
Note: When ordering parts from
this diagram add a -h suffix.
