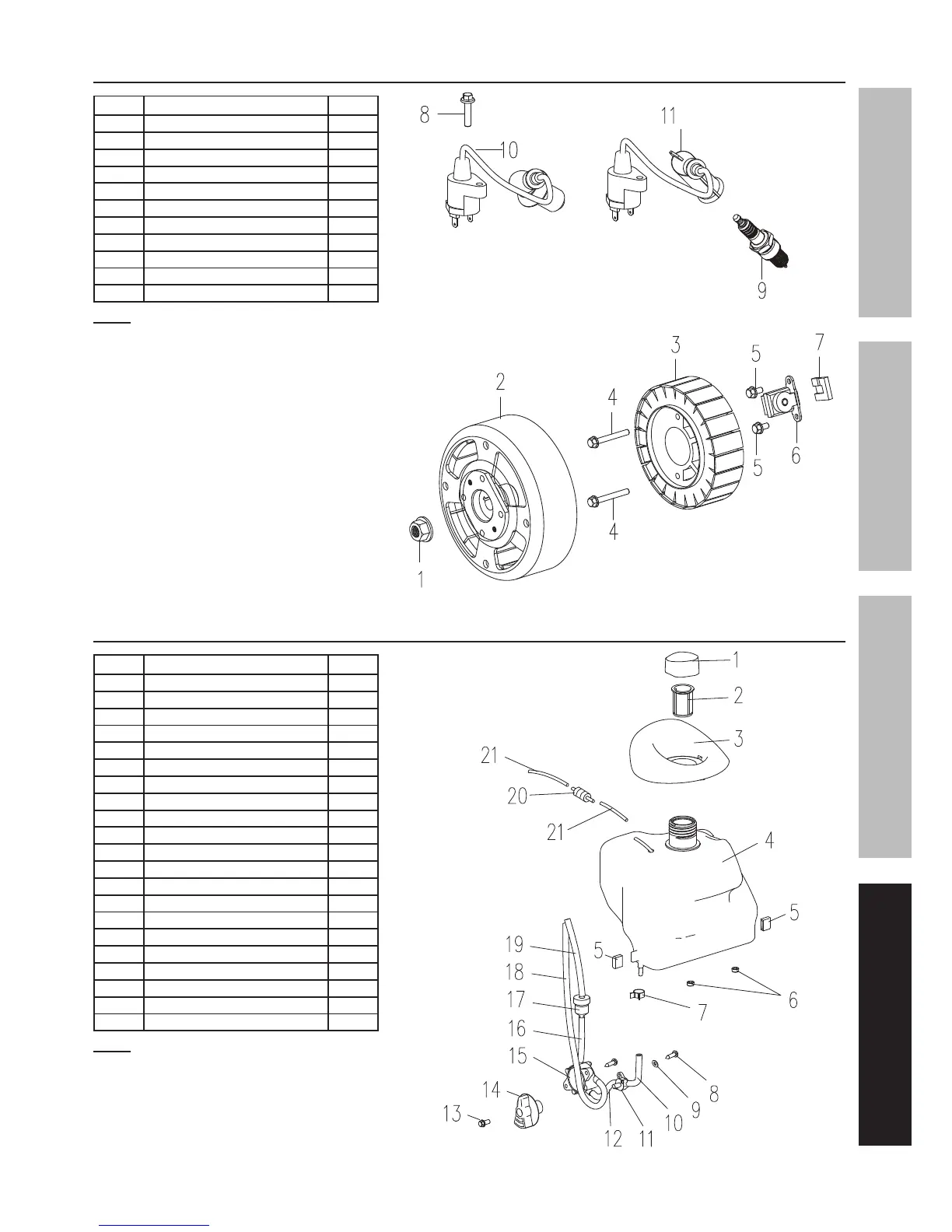

Parts List and Diagram I - Generator Head
Part Description Qty
1i Nut M12×1.25 1
2i Stator 1
3i Rotor 1
4i Bolt M5×40 2
5i Bolt M5×15 2
6i Trigger 1
7i Rubber Block 1
8i Bolt M6×25 1
9i Spark Plug 1
10i Ignition Asm. 1
11i Ignition Cap 1
Note: When ordering parts from
this diagram add an -i suffix.
Parts List and Diagram J - Fuel Tank
Part Description Qty
1j Fuel Cap Asm. 1
2j Fuel Filter 1
3j Rubber Tank Fitting 1
4j Fuel Tank 1
5j Rubber Bumper 5
6j Rubber Foot 2
7j Clamp Ø9 1
8j Screw ST4.2×19 1
9j Washer 1
10j Fuel Hose 1
11j Fuel Cock 1
12j Hose 1
13j Bolt M4×16 1
14j Fuel Valve 1
15j Fuel Pump Asm. 1
16j Fuel Hose 1
17j Fuel Filter Asm. 1
18j Fuel Hose 1
19j Fuel Hose 1
20j Dump Valve 1
21j Tube 2
Note: When ordering parts from
this diagram add a -j suffix.
