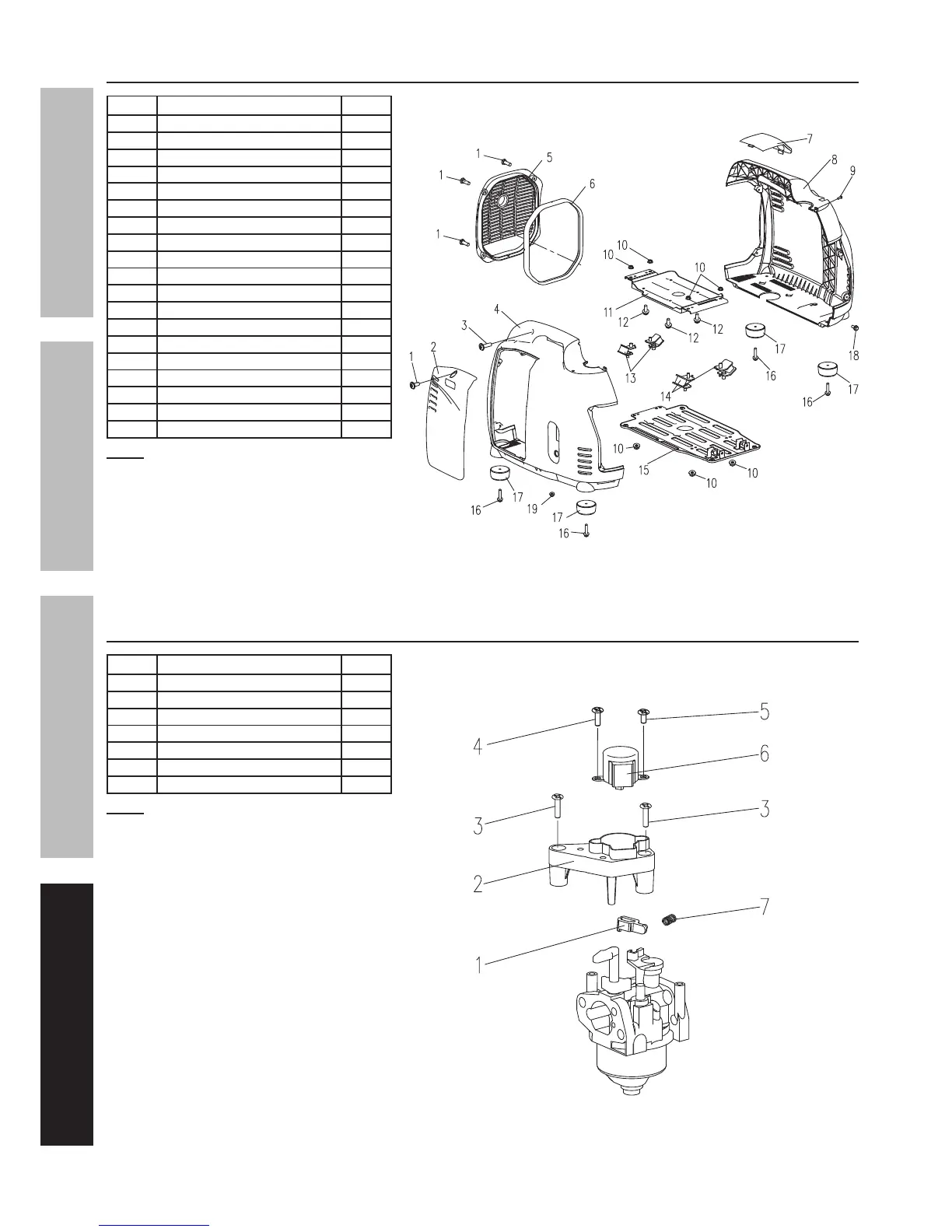

Parts List and Diagram K - Housing
Part Description Qty
1k Screw M6×12 5
2k Side Cover 1
3k Screw M6×20 2
4k Lift Cover 1
5k Protector Asm. 1
6k Protector Asm. Seal 1
7k Top Cover 1
8k Right Cover 1
9k Bolt ST4.2×13 1
10k Nut M8 8
11k Cover Plate 1
12k Bolt M8×12 4
13k Rear Damping Pad 2
14k Front Damping Pad 2
15k Chassis Asm. 1
16k Bolt M6×16 4
17k Foot 4
18k Screw M5×16 2
19k Nut M5 2
Note: When ordering parts from
this diagram add a -k suffix.
Parts List and Diagram M - Governor
Part Description Qty
1m Governor Arm 1
2m Stepper Motor Stand 1
3m Bolt M4×16 2
4m Bolt M4×10 1
5m Bolt M4×6 1
6m Stepper Motor Asm. 1
7m Governor Spring 1
Note: When ordering parts from this
diagram add a -m suffix.
