Predator 70143 - Components and Controls; Control Panel; Generator Front

Page 10
For technical questions, please call 1-888-866-5797.
ITEM 70143
SAFETY OPERATION MAINTENANCESETUP

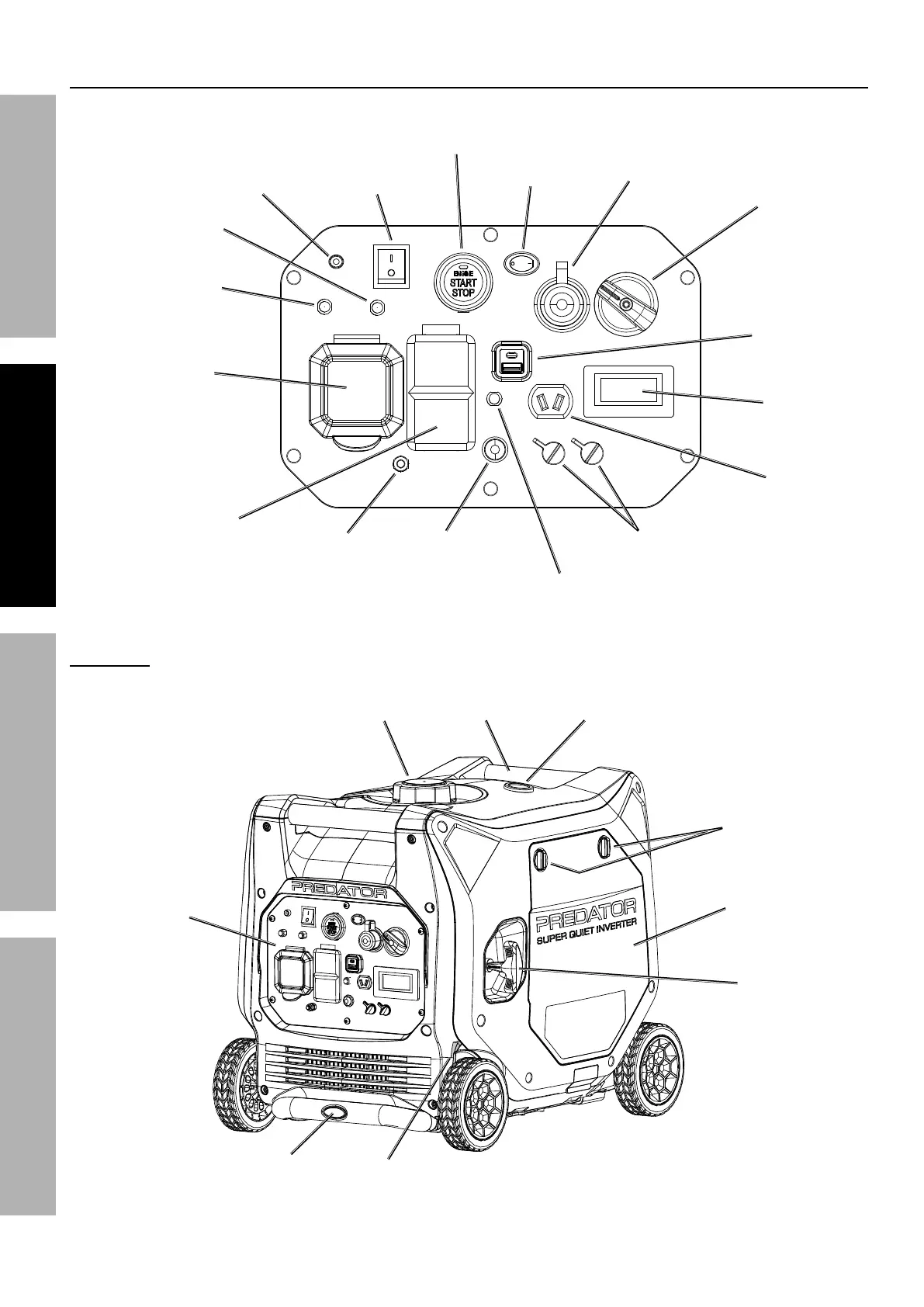

Components and Controls
LPG / Propane
Inlet
Fuel Selector
Switch
Ground
Terminal
120 VAC 20 A
Receptacles
(5-20R)
120 VAC 30 A
Receptacle
(TT-30R)
12 VDC
Receptacle
12 VDC Breaker
Reset Button
CO Sensor
Light
Parallel Kit
Terminals
Economy
(ESC) Switch
Overload
Reset Button
120 VAC 20 A Breaker
Reset Button
120 VAC 30 A Breaker
Reset Button
Digital
Display
Engine / Battery
Switch
Engine
Stop / Start
Switch
USB Ports
Figure A: Control Panel
WARNING! TO PREVENT SERIOUS INJURY: Follow Parallel Kit instructions for
connection and use of a Parallel Kit (Parallel Kit and instructions sold separately).
Fuel Cap
Control Panel
Access Panel
Lock Knobs
Telescopic Handle
Release Button
Battery
and Oil Fill
Access Panel
Handle
Fuel Gauge
Starter
Handle
Wheel Lock
Figure B: Generator Front
