4 GENERAL OPERATION
4.1 Setting up the Machine
4.1.1 Mounting Options
The machine can be mounted either horizontally, vertically, or on a “C” frame. Horizontal mounting
utilizes a floor stand with casters for ease of movement. Place the machine on the stand and secure
with (4) M8 bolts (SAP# 1031638).
Optionally, the machine can be mounted vertically on a frame with an attached bin, called a “C”
frame. The “C” frame is mounted on casters for ease of movement.
Vertical mounting utilizes a baseplate to assist in mounting to a vertical plane. This configuration is
ideal for use with overhead delivery systems.
4.1.2 Installing Feet and Mounting Hardware
To install the feet (SAP# 1027857, 1027881) or mounting hardware (SAP# 1031638), reference the
figure below.
Note: If the machine is used without a stand or frame, ensure that the four rubber feet are fastened
to the base of the machine.

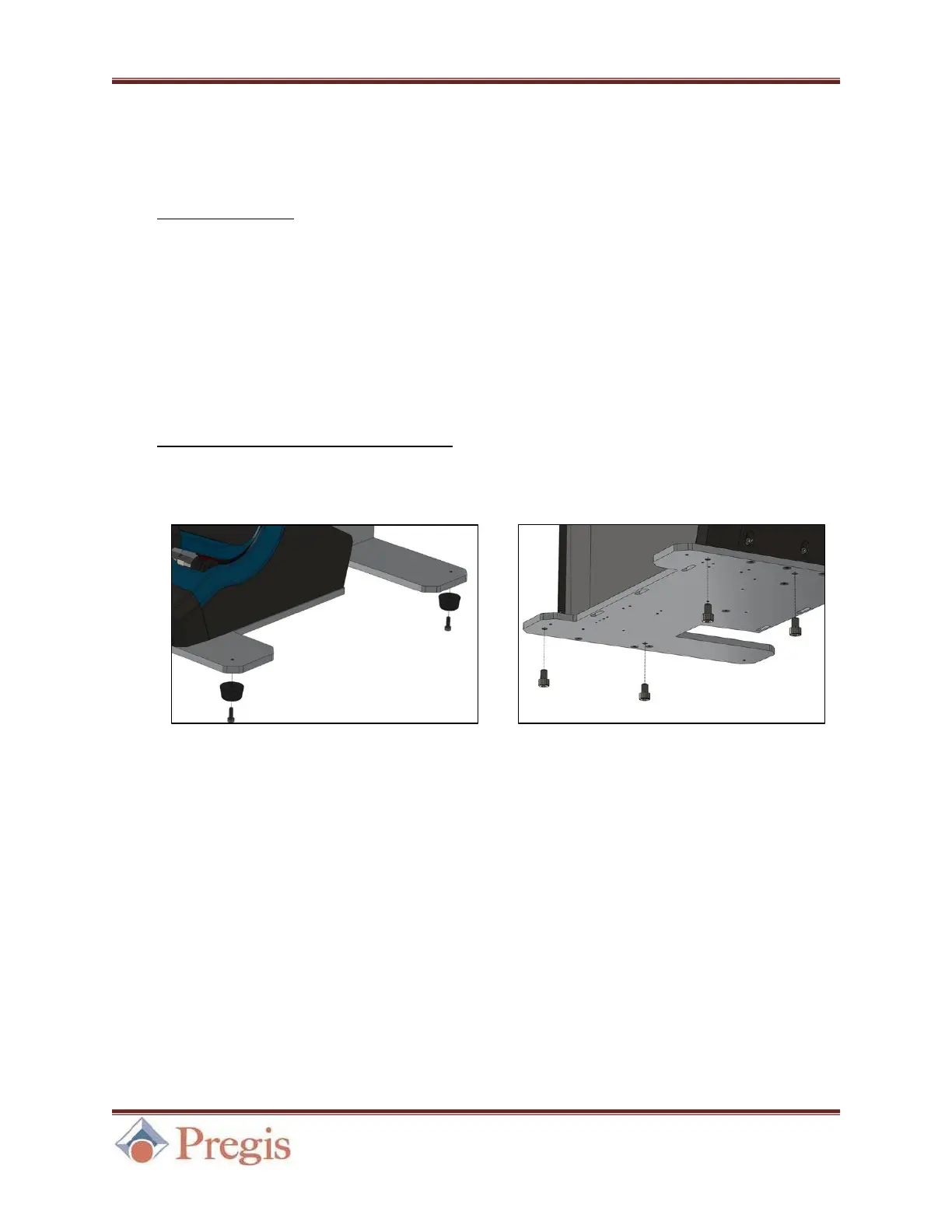

Figure 4. To remove or fasten the four rubber feet,
use a 3mm hex wrench. (Two out of four shown.)
Figure 5. To mount the machine to a stand or frame,
use a 6mm hex wrench.
